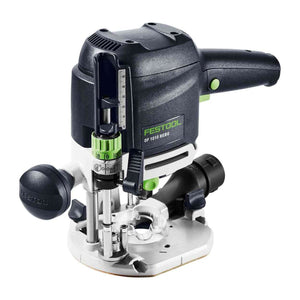

Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
Router OF 1010 REQ-F-Plus US
  • SKU: FES576922

Router OF 1010 REQ-F-Plus US

$775.00
Shipping Ask about this product

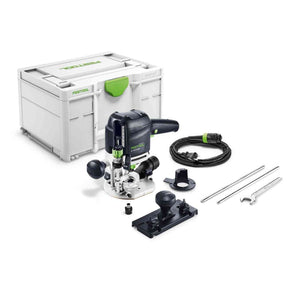

Includes

  • chip catcher
  • dia. 1/4" clamping collet (6.35 mm)
  • dia. 5/16" clamping collet (8 mm)
  • collet wrench, WAF 19
  • Systainer SYS3 M 237



Functions

Extremely versatile. Extremely precise. Extremely easy to handle: Whether used on the guide rail or off, the OF 1010 R router is the ideal tool for fine routing work. Thanks to its size and low weight, it can be accurately guided along edges, lines or curves. For routing profiles, grooves, rabbets, and dovetail joints – the OF 1010 R impresses with a wide variety of possible applications.
  • Compact design and light weight
  • Clear view of the routing area
  • Quick and easy bit changes
  • Routing depth adjustment to 1/256" (1/10 mm)
  • Torsionally rigid plunging action due to guide columns on both sides
  • MMC (Multiple Material Control) electronics for adaptation to the working material and temperature monitoring
  • Chip extraction system integrated into the router base for hose diameters D 27 and D 36

Usage - Main applications
  • Edge forming tasks like round-overs and chamfers, as well as rabbeting and inlays
  • Recessed metal fittings
  • Grooving rear panels, recessing dovetails or routing with the guide system
  • Producing rows of holes in cabinets using the hole series system LR 32

Specifications

Routing stroke 2-1/8" (55 mm)
Routing depth fine adjustment range 5/16" (8 mm)
Weight 7.06 lbs (3.2 kg)
Collet dia. 1/4" - 5/16" (6 - 8 mm)
Power consumption 1010 watt
Dust extraction connection dia. 1-1/16" (27 mm) / 1-13/32" (36 mm)
Cable length 13.123 ft (4 m)
