Filter
      Quick view
      20 TON HYDRAULIC SHOP PRESS WITH GRID GUARD
      King Canada
      $559.99
      Quick view
      48" X 16 GA. BOX & PAN BRAKE
      King Canada
      $1,399.00
      Quick view
      48" X 12 GA. BOX & PAN BRAKE
      King Canada
      $3,999.00
      20 TON HYDRAULIC SHOP PRESS WITH GRID GUARD
      King Canada

      20 TON HYDRAULIC SHOP PRESS WITH GRID GUARD

      KHP-20T-GGN

      $559.99
      /
      • 20 Ton manual hydraulic jack
      • Heavy-duty grid guard protects user during use
      • Heavy-duty "H” frame with pressure gauge
      • Great for straightening, pressing, bending or stamping
      • Used to install or remove gears, bushings or bearings
      • Adjustable bed height with support rods
      • Comes with 2 pressure plates


      Specification

      Specification

      • MODELKHP-20T-GGN
      • MAXIMUM CAPACITY20 Ton
      • STROKE6-1/4"
      • WORKING RANGE0 - 40"
      • BED WIDTH21-3/8"
      • BED DEPTH8-1/4"
      • DIMENSIONS (LXWXH) / WEIGHT32" x 27-1/2" x 69-3/8" / 210 lbs
      • UPC7 72995 01319 7

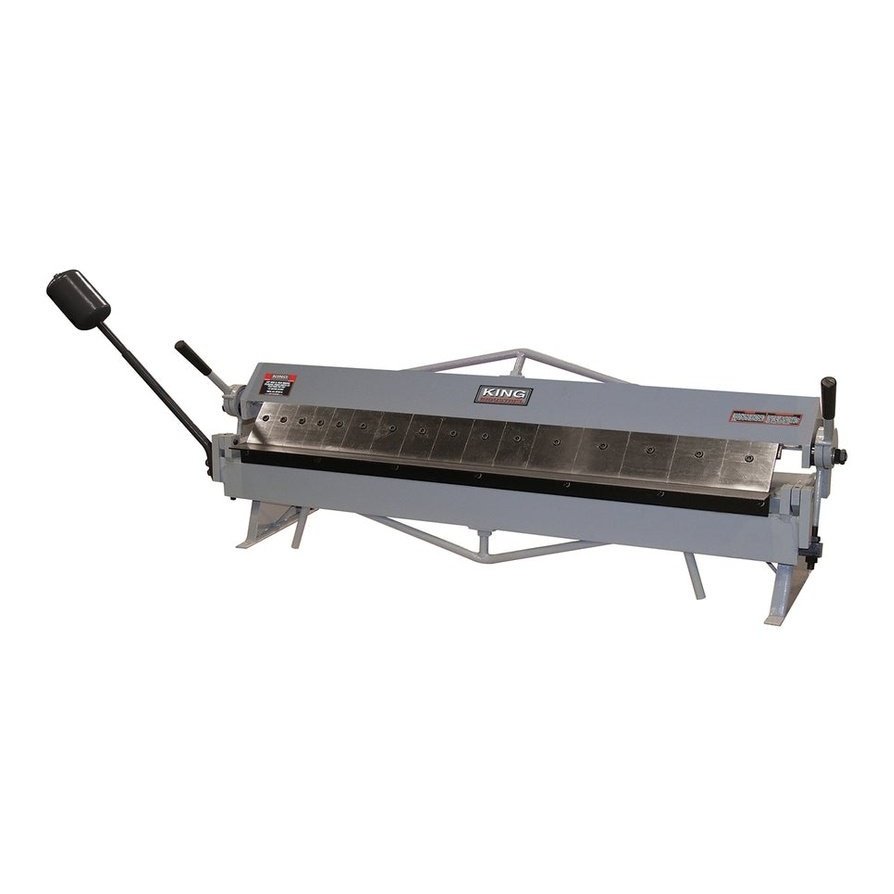

      48" X 16 GA. BOX & PAN BRAKE
      King Canada

      48" X 16 GA. BOX & PAN BRAKE

      KC-BP4816

      $1,399.00
      /
      • Incorporates all the features of our standard handbrakes, but with greater range of applications
      • Sectioned fingers are easily removed for box bending and special forming operations
      • Wide assortment of finger widths allow greater versatility in the shop


      Specification

      Specification

      • MODELKC-BP4816
      • CAPACITY (MILD STEEL)16 Gauge
      • BENDING LENTH48"
      • MAXIMUM LIFT OF BEAM1-1/2"
      • MINIMUM REVERSE BEND1/2"
      • MINIMUM FLANGE (MILD STEEL)5/16"
      • MAXIMUM DEPTH OF BOX3"
      • FINGER WIDTHS4 x 3", 3 x 4", 5 x 5"
      • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT72" x 15" x 28-3/4" / 315 lbs
      • PACKAGING DIMENSIONS (LXWXH) / WEIGHT62" x 17-1/2" x 23" / 355 lbs
      • UPC7 72995 01287 9

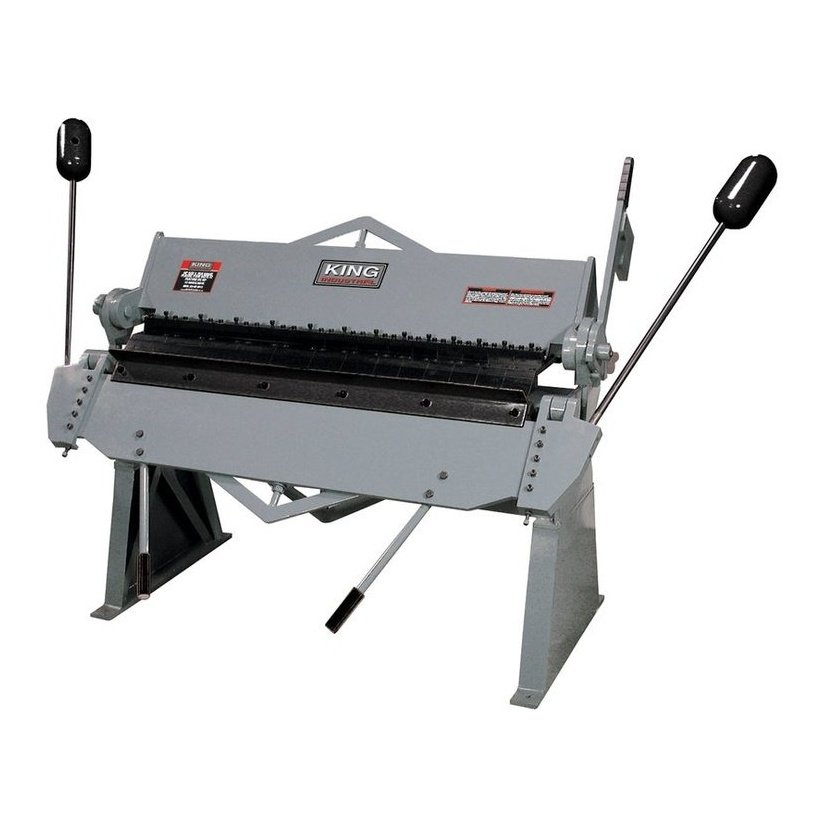

      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      48" X 12 GA. BOX & PAN BRAKE
      King Canada

      48" X 12 GA. BOX & PAN BRAKE

      KC-BP4812

      $3,999.00
      /
      • Floor model features all welded steel plate construction and heavy-duty counter weights and cavity, for smooth operation and trouble-free forming
      • Spring loaded handle allows fast and easy action
      • Heavy truss rods and braces are designed for durability and strength
      • Includes extension handles, cast-iron counter weights, apron stop and replaceable bushings


      Specification

      Specification

      • MODELKC-BP4812
      • CAPACITY (MILD STEEL)12 Gauge
      • BENDING LENGTH48"
      • MAXIMUM LIFT OF BEAM3-15/16"
      • MINIMUM REVERSE BEND27/32"
      • MINIMUM FLANGE (MILD STEEL)1"
      • MAXIMUM DEPTH OF BOX5-7/8"
      • FINGER WIDTHS4 x 3", 3 x 4", 5 x 5"
      • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT65" x 24" x 48" / 1,140 lbs
      • PACKAGING DIMENSIONS (LXWXH) / WEIGHT68-7/8" x 30-3/8" x 35" / 1,275 lbs
      • UPC7 72995 01286 2
