Single Phase 4.8HP 220V Self Braking Motor

• Surface planer tables with simultaneous opening
• Dedicated surface planer fence (dimensions 1200 x 150 mm)
• Thicknessing table lifting by means of 4 columns dust protected
• Helicoidal thicknesser infeed roller
• Sandblasted steel thicknesser outfeed roller
• Pre-setting for mortiser
• Mechanical readout (1/10 mm) for thicknessing table height

Wheels for Machine Movement

Additional Fence for Processing Thin Workpieces

"XYLENT" CUTTERBLOCK Ø 95 MM WITH 66 KNIVES WITH SELF LOCKING AND SELF CENTERING SCREWS

Rubber Coated Outfeed Roller

10 Spare Inserts & Xylent Maintenance Kit

120mm Exhaust Hood

3-240mm Thicknesser Capacity

6-12m/min Feed Rate

410x775mm Table Dimensions for Thicknesser

2200mm Surfacer Bed Length

5mm Maximum Stock Removal

410mm Working Width

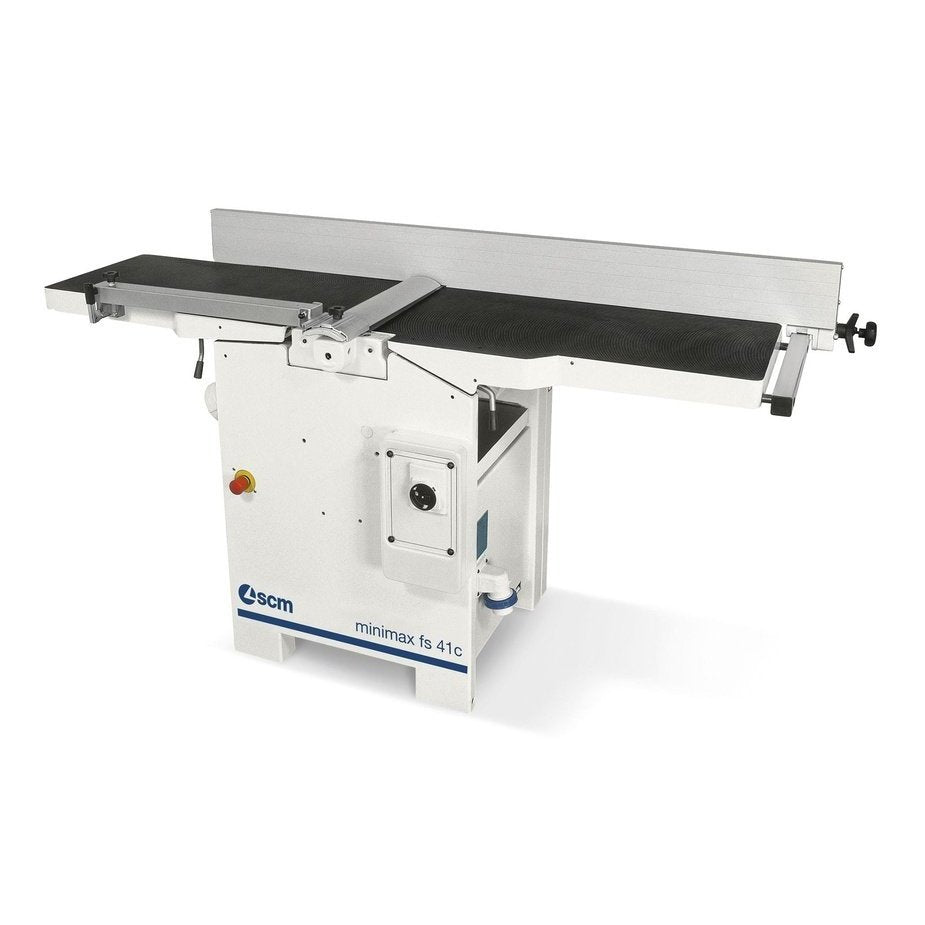

Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.

Discover the "Xylent" cutterhead, available for this machine.

Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block  and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.

High rigidity
High rigid fence with a smooth movement thanks to the central locking on round bar.

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Single Phase 4.8HP 220V

"TERSA" CUTTERBLOCK Ø 72 MM WITH 3 KNIVES WITH RAPID LOCKING SYSTEM

120mm Exhaust Hood

3-230mm Thicknesser Capacity

7m/min Feed Rate

300x585mm Table Dimensions for Thicknesser

1510mm Surfacer Bed Length

4mm Maximum Stock Removal

300mm Working Width

The surfacing-thicknessing machine for the D.I.Y. woodworkers and the craftsmen joineries.
Fine Woodworking named our award-winning 12" jointer/planer as "Best Overall" in its category. This machine offers premium power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why one of our best-selling units may be perfect for you.

Optimal planing
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Absolute rigidity
Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.

Single Phase 4.8HP 220V

"TERSA" CUTTERBLOCK Ø 72 MM WITH 3 KNIVES WITH RAPID LOCKING SYSTEM

120mm Exhaust Hood

3-230mm Thicknesser Capacity

7m/min Feed Rate

410x605mm Table Dimensions for Thicknesser

1800mm Surfacer Bed Length

4mm Maximum Stock Removal

410mm Working Width

The surfacing-thicknessing planer powerful and user friendly, for D.I.Y. woodworkers and craftsmen workshops.
This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why this machine may be perfect for you.

Optimal planing
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Absolute rigidity
Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.

The surfacing-thicknessing planer powerful and user friendly, for D.I.Y. woodworkers and craftsmen workshops.
This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why this machine may be perfect for you.

Discover the "Xylent" cutterhead, available for this machine.

Optimal planing
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Absolute rigidity
Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length.

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Special Order Machine, FOB Mississauga ONT.

Planer Hand 3-1/4” W/ Case

The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
PX|22 ShearTec II Standard Features:
? Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
? Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
? Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
? Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint
? Digital Readout - The DRO makes setting precise thickness easier
? Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
? Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
? 4-Post Bed Support - Provides precise and consistent performance with every cut
? ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig Specs:

Motor 220v 10HP 3phase 60hz /28 Amp.
CSA Yes
Bed Size 22 x 28"
Pull-Out Extension 6"
Max. Depth of cut 1/4"
Max. Stock Thickness 8"
Min. Stock Thickness 1/2"
Min. Stock Length 9"
Max. Stock Width 22"
Feed Speed 10 30 FPM Elec. Vari Spd.
Dust Port Diameter 5" LEFT and RIGHT
Cutterhead RPM 5000
Cutterhead Diameter 3-1/2"
Cutterhead Insert # 150 x 4-sided Carbide, 6 Row
Thickness Readout Wixey DRO
Dimensions set up approx. 40"x 46"
Dimensions Shipping 44"x38"x48-1/2"
Net/Ship Weight # of boxes lbs. 867/955 1Box

The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
PX|22 ShearTec II Standard Features:
? Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
? Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
? Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
? Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint.
? Digital Readout - The DRO makes setting precise thickness easier
? Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
? Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
? 4-Post Bed Support - Provides precise and consistent performance with every cut
? ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig Specs:
Motor 220v 7.5HP 1phase 60hz/32 Amp.
CSA YES
Bed Size 22 x 28"
Pull-Out Extension 6"
Max. Depth of cut 1/4"
Max. Stock Thickness 8"
Min. Stock Thickness 1/2"
Min. Stock Length 9"
Max. Stock Width 22"
Feed Speed 10 - 30 FPM Elec. Vari Spd.
Dust Port Diameter 5" LEFT and RIGHT
Cutterhead RPM 5000
Cutterhead Diameter 3-1/2"
Cutterhead Insert # 150 x 4-sided Carbide, 6 Row

The all-new PX|20 planer signals an innovative new design for Laguna planers. The Laguna PX|16 is loaded with new ergonomic features to make woodworking safer and more enjoyable.

PX|20 ShearTec II Standard Features:

? Infeed and Outfeed Rollers - The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
? Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
? Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|20 sports a sleek, modern design
? Improved Dust Collection - The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
? 4-Post Bed Support - Provides precise and consistent performance with every cut
? ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
? Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe Specs:

Motor 220v 5HP 1phase 60hz/23Amp.
CSA Yes
Bed Size 20 x 21-1/2"
Pull-Out Extension 4"
Max. Depth of cut 1/4"
Max. Stock Thickness 8"
Min. Stock Thickness 1/4"
Min. Stock Length 8"
Max. Stock Width 20"
Feed Speed 16 & 28 FPM
Dust Port Diameter 4" LEFT and RIGHT
Cutterhead RPM 5000
Cutterhead Diameter 3"
Cutterhead Insert # 138 x 4-sided Carbide, 6 Row
Thickness Readout Wixey DRO
Dimensions set up approx. 36"x36"
Dimensions Shipping 42"x30"x46"
Net/Ship Weight # of boxes lbs. 535/638 1Box

The all-new PX|16 planer signals an innovative new design for Laguna planers. The Laguna PX|16 is loaded with new ergonomic features to make woodworking safer and more enjoyable.

PX|16 ShearTec II Standard Features:

? Infeed and Outfeed Rollers - The PX|16 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
? Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
? Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|16 sports a sleek, modern design
? Improved Dust Collection - The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
? 4-Post Bed Support - Provides precise and consistent performance with every cut
? ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on PX|16 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
? Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe Specs:

Motor 220v 5HP 1phase 60hz/23Amp.
CSA Yes
Bed Size 16 x 21-1/2"
Pull-Out Extension 4"
Max. Depth of cut 1/4"
Max. Stock Thickness 8"
Min. Stock Thickness 1/4"
Min. Stock Length 8"
Max. Stock Width 16"
Feed Speed 16 & 28 FPM
Dust Port Diameter 4" LEFT and RIGHT
Cutterhead RPM 5000
Cutterhead Diameter 3"
Cutterhead Insert # 108 x 4-sided Carbide, 6 Row
Thickness Readout Wixey DRO
Dimensions set up approx. 33"x 36"
Dimensions Shipping 38"x30"x46"
Net/Ship Weight # of boxes lbs. 493/597 1 Box

Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new QuadTec I cutterhead. The Laguna PX|12 QuadTec I is loaded with premium features to make woodworking safer and more enjoyable.

PX|12 QuadTec I Standard Features:

? QuadTec I - The new QuadTec I delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 24 carbide inserts. The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec I is a game changer when planing tricky grain in hardwoods
? 2 HP Motor - The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish
? Pull Out Extensions - The pull-out extensions and flip-down extensions make it easier to feed stock through the machine Specs:

Motor 115v 2HP Universal 50/60hz/15 Amp.
CSA Yes
Bed Size 12-1/2 x 10-1/4"
Pull-Out Extension 11-1/4" Flip Down Extensions x 2
Max. Depth of cut 3/32"
Max. Stock Thickness 6"
Min. Stock Thickness 5/32"
Min. Stock Length 5"
Max. Stock Width 12-1/2"
Feed Speed 26 FPM
Dust Port Diameter 4" step down to 2-1/2"
Cutterhead RPM 10000
Cutterhead Diameter 1-7/8"
Cutterhead Insert # 26 x 4-sided Carbide, 4 Row
Thickness Readout Hair line Readout
Dimensions set up approx. 24"x 34"
Dimensions Shipping 25"x17"x21-1/2"
Net/Ship Weight # of boxes lbs. 65/72 1Box

Product Features

• Powerful 3 HP motor

• Solid cast-iron extension tables
• Mobile base system built into cabinet
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Table raises and lowers on four precision ground columns for extra stability
• Anti-kickback fingers in front of the infeed roller prevents wood kickback
• Magnetic safety switch
• Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
• Comes with knife setting gauge and 5” dust chute

Product Features

• Powerful 3 HP motor

• Solid cast-iron extension tables
• Mobile base system built into cabinet
• 4 knife cutterhead allows rapid cutting while producing a superior finish
• Table raises and lowers on four precision ground columns for extra stability
• Anti-kickback fingers in front of the infeed roller prevents wood kickback
• Magnetic safety switch
• Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
• Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
• Comes with knife setting gauge and 5” dust chute

Product Features

• 15 Amp. motor powers cutterhead and feed rollers simultaneously

• Cutterhead raises and lowers on four precision ground columns for extra stability
• Adjustable extension tables include a roller to assist in feeding stock
• Side mounted carrying handles
• Comes complete with 2 double-edged reversible knives, knife setting gauge and wrench

Product Features

• Powerful 3 HP motor

• Table raises and lowers on four precision ground columns for extra stability
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Anti-kickback fingers in front of the infeed roller to prevent wood kickback
• Magnetic safety switch
• Stock return rollers on top of planer for multiple passes
• Extension tables provide support for longer material
• Mobile base system built into the cabinet
• Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
• Comes complete with cabinet stand and 4” dust collector outlet

Product Features

• Powerful 3 HP motor

• Table raises and lowers on four precision ground columns for extra stability
• 3 knife cutterhead allows rapid cutting while producing a superior finish
• Anti-kickback fingers in front of the infeed roller to prevent wood kickback
• Magnetic safety switch
• Stock return rollers on top of planer for multiple passes
• Extension tables provide support for longer material
• Mobile base system built into the cabinet
• Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
• Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods

• Comes complete with cabinet stand and 4” dust collector outlet

Special Order Item - Delivery Approx 3-4 Weeks

Product Features

• Powerful 1.5 HP motor
• Double drive belt system
• Table raises and lowers on four precision ground columns
• Comes complete with stand, planing knives, setting gauge and 4” dust chute for dust collector hook-up
• Jack Screw butterhead system - Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
• Moulding butterhead guide system - Specially designed for guiding the workpiece into the moulding cutters

Product Features

• Powerful 15 Amp. motor with thermal overload protection

• Helical cutterhead for a superior finish

• Cutterhead raises and lowers on four precision ground columns for extra stability

• Thickness indicator and depth of cut indicator with graduated scale in inches and millimeters

• Pre-set depth stops for repeat cuts at 1/8”, 1/4”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2” and 1-3/4”

• Exclusive 2 position dust chute. Closed position with 4” and 2-1/2” adapter outlets or open position for free flow chip ejection

• Comes with convenient side mounted tool storage box, cutter insert adjustment Torx key and adjustment hex. key


Special Order Item - Delivery Approx 3-4 Weeks

Product Features

• Dual jointer / planer combination machine offers the capabilities of both machines without compromising your work space
• Powerful 3 HP motor
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Heavy duty design with precision cast-iron tables
• Parallelogram table adjustment system keeps table close to cutterhead for improved finish and precise depth of cut adjustments
• Large 43" x 6" aluminum extruded fence pivots 0 - 45?
• Bridge-style cutterhead guard
• 4" dust chute rotates to be used for both jointing and planing operations
• Magnetic safety switch
• Comes with 2 push blocks, set of 5 replacement cutter inserts, 2 T25 Torx screwdrivers and adjustment hex. keys
