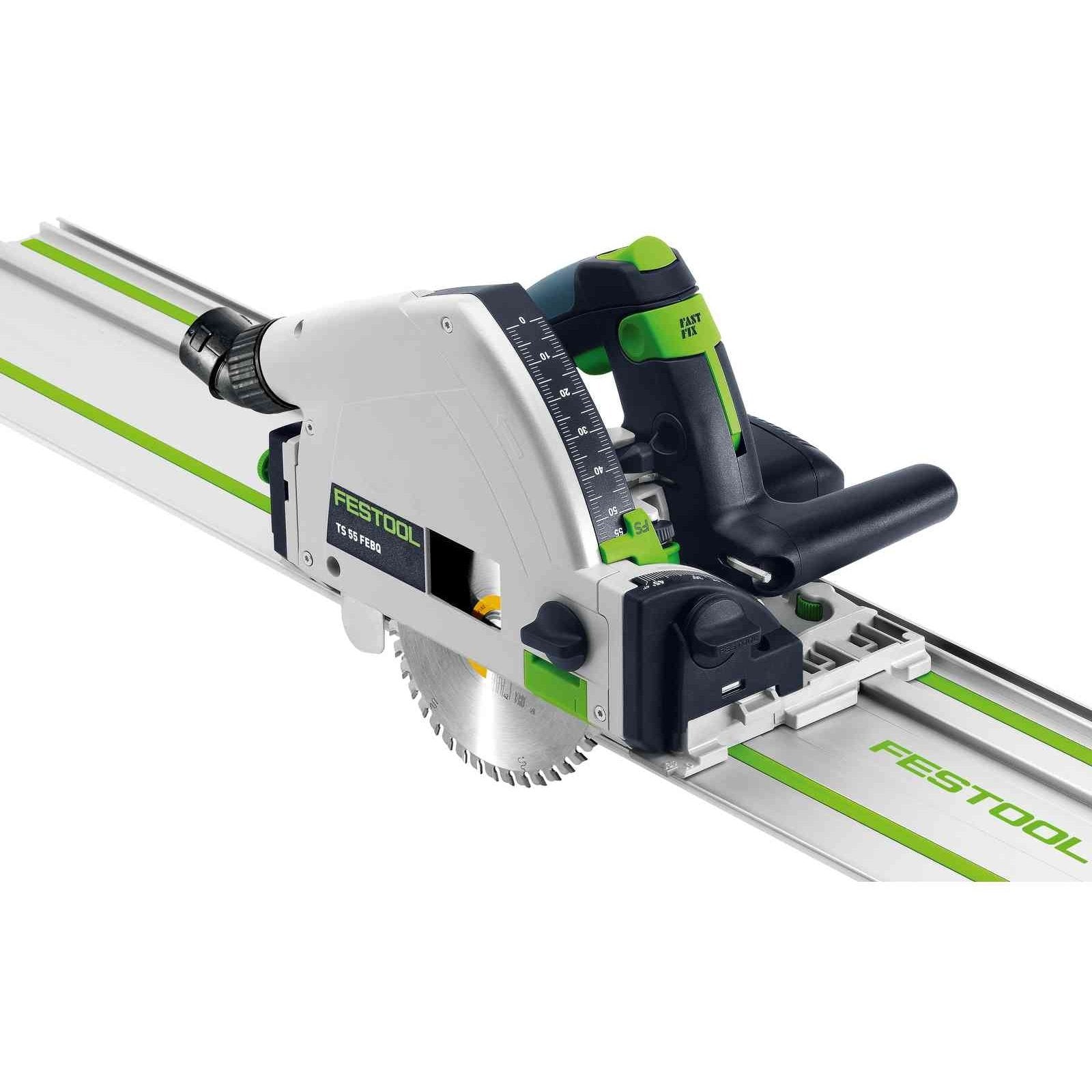

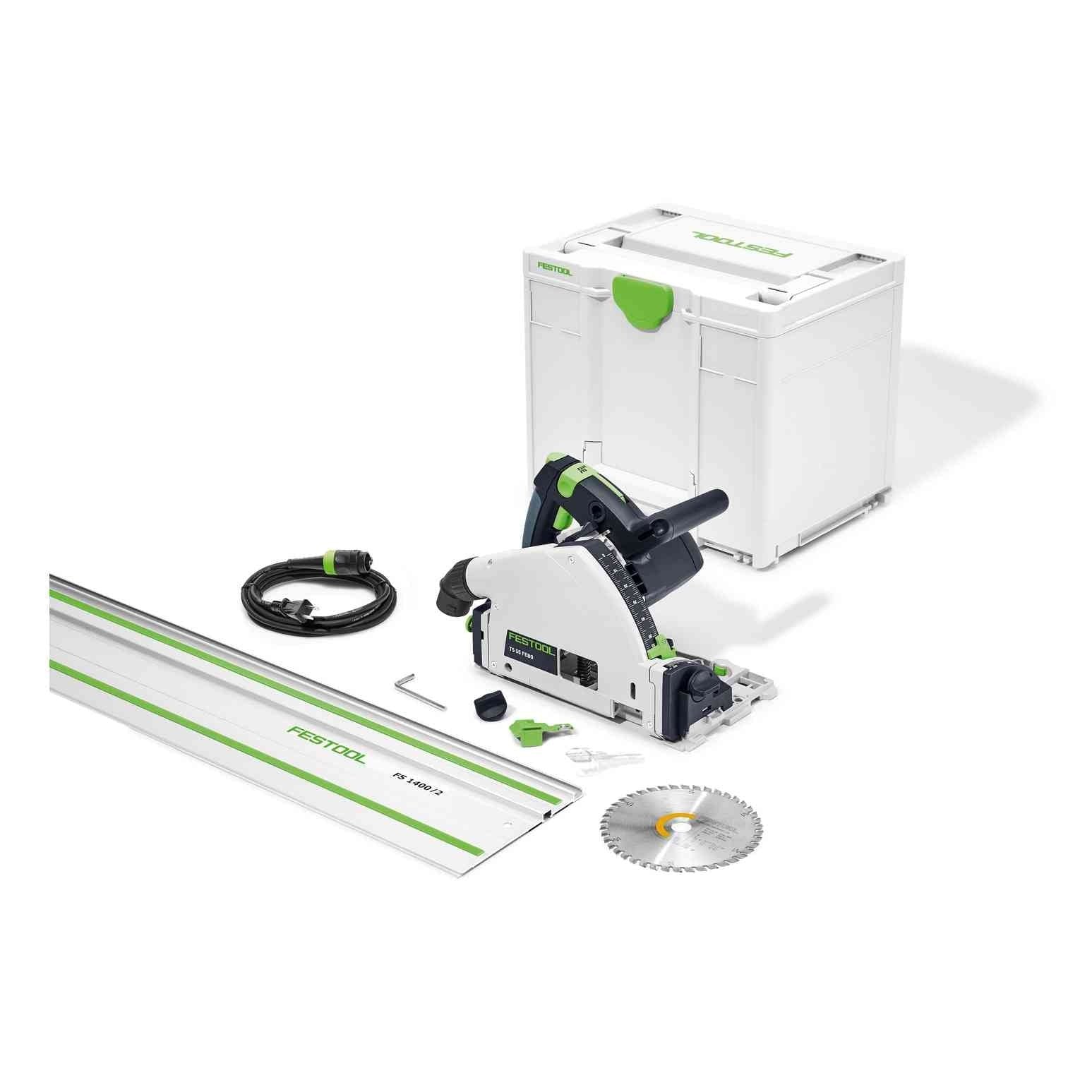

Plunge-cut saw TS 55 FEQ-F-Plus-FS US
Plunge-cut saw TS 55 FEQ-F-Plus-FS US
  • SKU: FES577014
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Plunge-cut saw TS 55 FEQ-F-Plus-FS US

Shipping calculated at checkout.

Millions of saws do not lie: The TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and proven details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.

  • Concentrated torque and up to twice as fast work progress with an increased saw blade service life
  • Virtually splinter-free on both sides thanks to attachable splinter guard
  • The cutting edge from 90° to 47° remains unchanged even when the saw bevels
  • Top-class sawing system thanks to a variety of accessories
  • Riving knife for safer work and simple positioning in existing joint
  • Angle adjustment with undercut function from -1° to 47°

Usage - Main applications

  • Precise circular in materials up to 55 mm thick
  • Cutting interior doors to length using guide rail and circular saw
  • Manufacturing expansion joints in parquet flooring and false joints
  • Cutting chipboard to size
  • Cutting and processing plasterboard


Weight 9.48 lbs (4.8 kg)
Saw blade diameter 6-1/4" (160 mm)
Cutting depth at 45° 1-11/16” (43 mm)
Cutting depth 0" - 2-1/8” (0 - 55 mm)
Power consumption 1 200 watt
Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)
Angular range -1 - 47 °
Cable length 13.123 ft (4 m)


Click here to Download Product Manual
