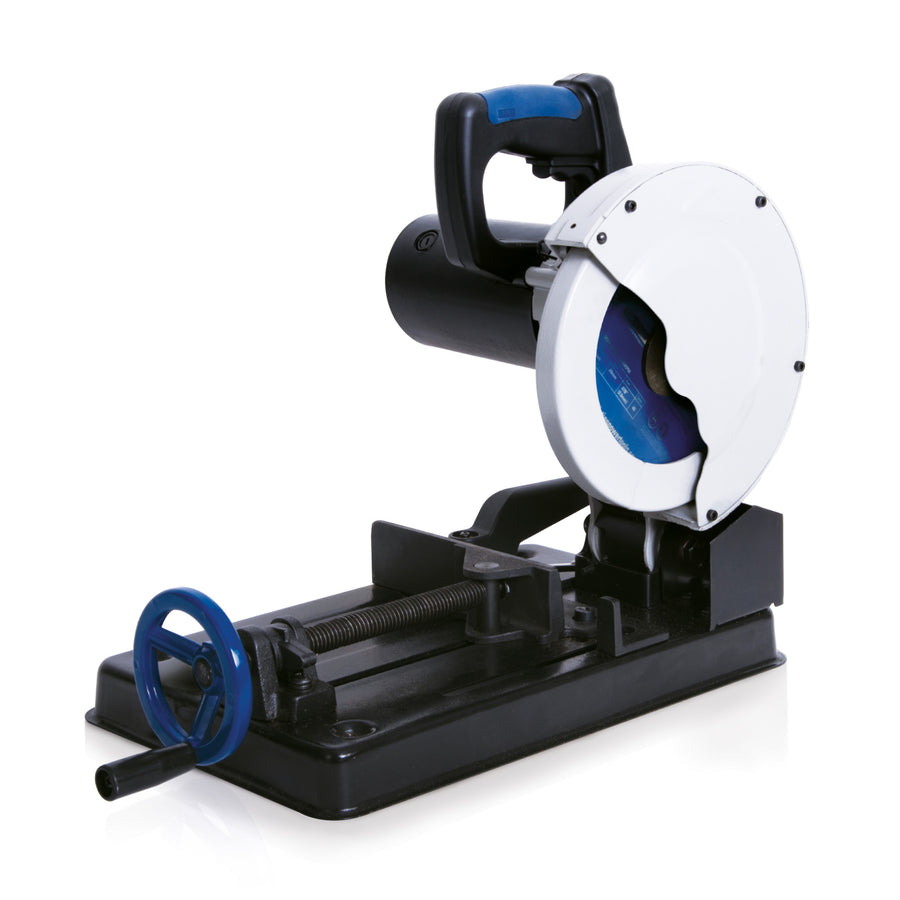

Evolution EVOSAW185HD: Metal Cutting Chop Saw With 7-1/4 In. Blade

$319.95

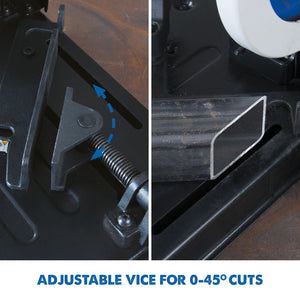

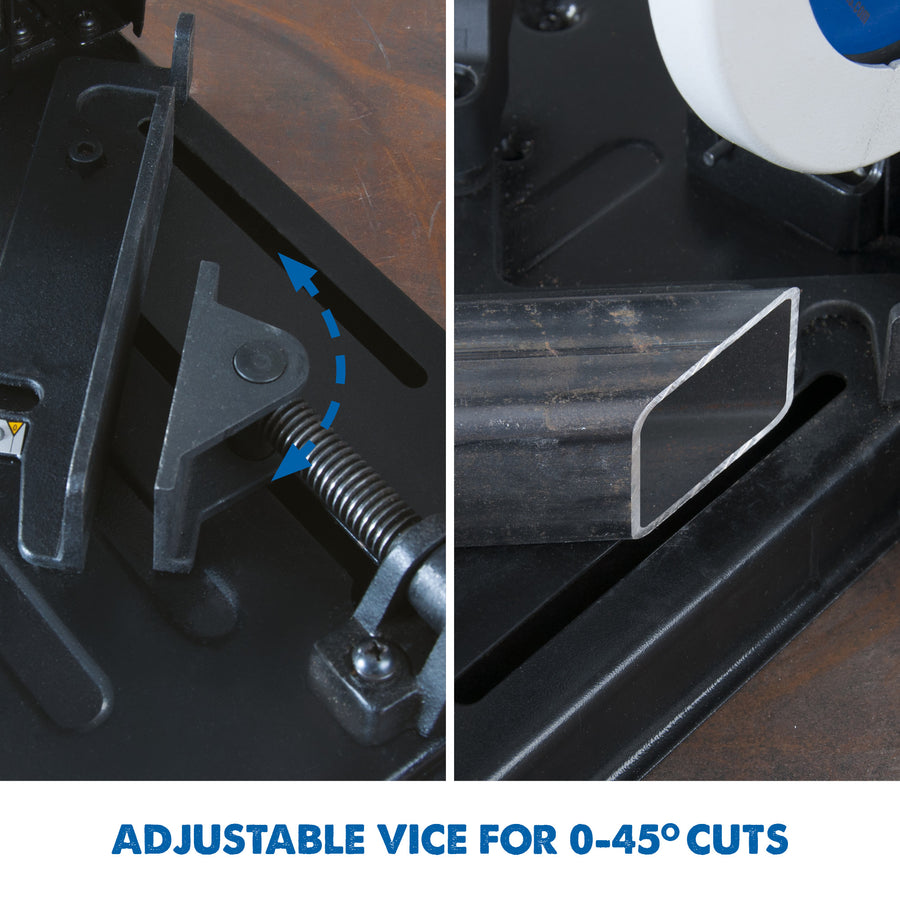

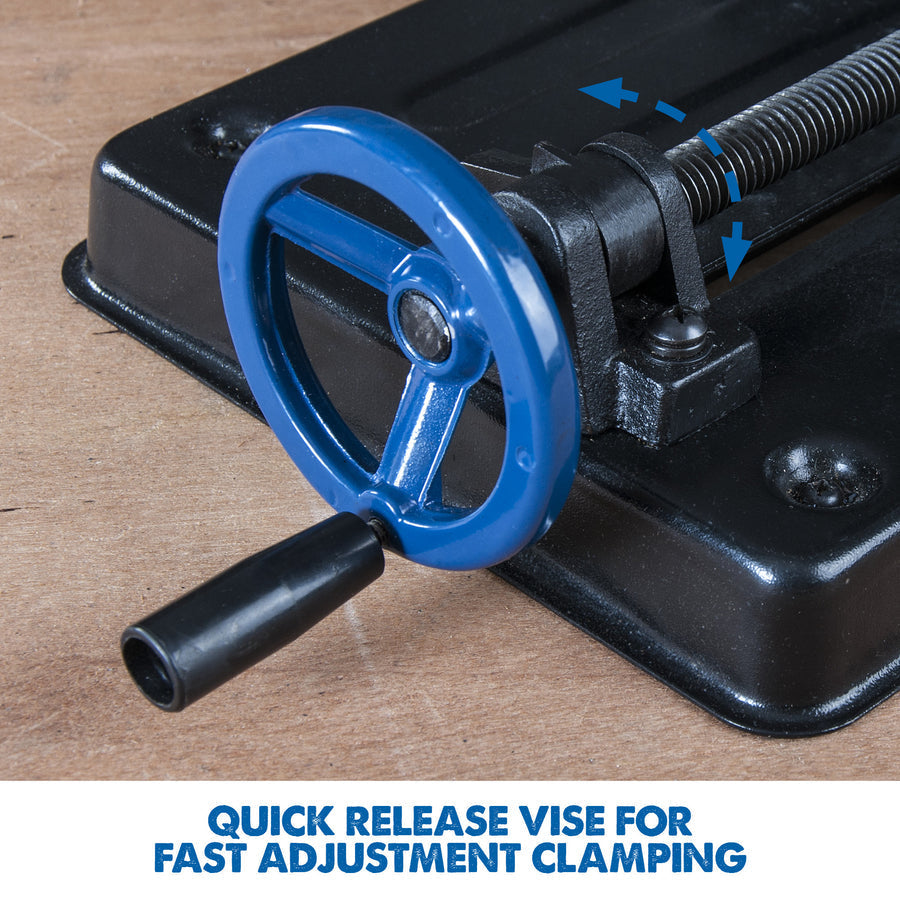

The EVOSAW185 easily cuts mild steel without heat or burrs and virtually no sparks. The quick-release adjustable vise allows for fast and accurate angle cuts from 0-45˚. Ideal for cutting steel plate, square tube, angle iron, pipe, rebar, copper pipe, conduit, and steel studs.



  • No Heat, No Burrs & Virtually No Sparks.
  • No Coolant Required.
  • Pressed Steel Base.
  • 10A Powerful High Torque Motor.
  • 2 In. x 4 In. Cross Cut Capacity.
  • 2 In. x 2 In. Square Tube Capacity.
  • 2 In. Ø Round Tube Capacity.
  • 3 Years Limited Warranty.
Specifications
Motor (120V 60Hz): 10 A
Speed No Load: 4200 rpm
Max. Bevel (Left): 45°
Cable Length: 6-9/16 ft
Blade Spec:
Blade Dia.: 7-1/4 In.
No. of Teeth: 40
Arbor: 20mm
Kerf: .078 In.

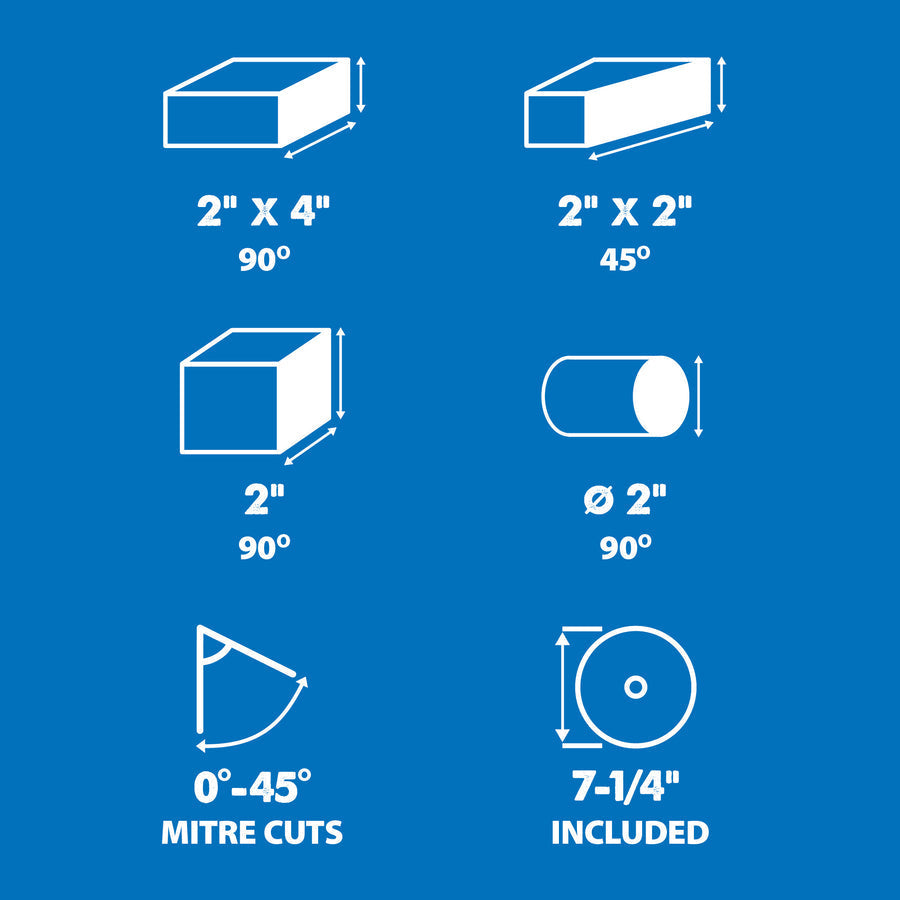

Cutting Capacities:
Mild Steel Plate (Max Thickness): 1/4 In.
Mild Steel Box Section (Max Wall Thickness): 1/8 In.
Square Tube at 90° (Mild Steel): 2 In.
Square Tube at 45° (Mild Steel): 2 In.

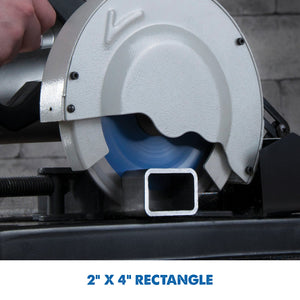

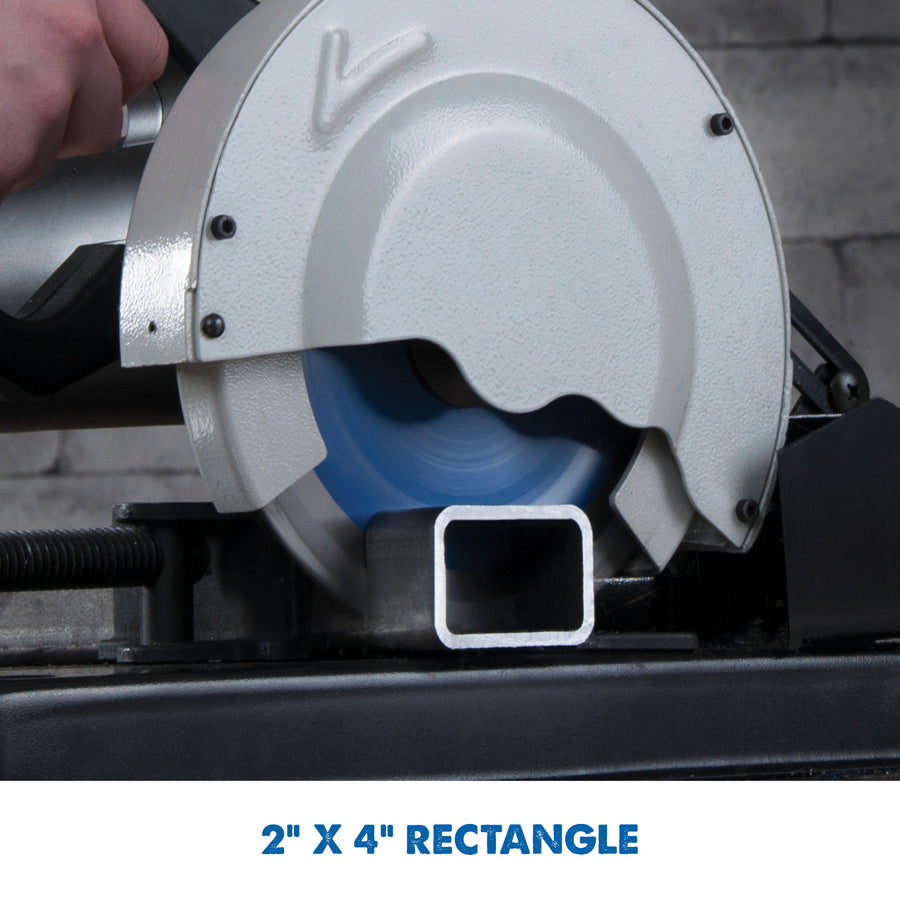

Rectangle Tube at 90° (Mild Steel): 2 In. x 4 In.
Rectangle Tube at 45° (Mild Steel): 2 In. x 2 In.

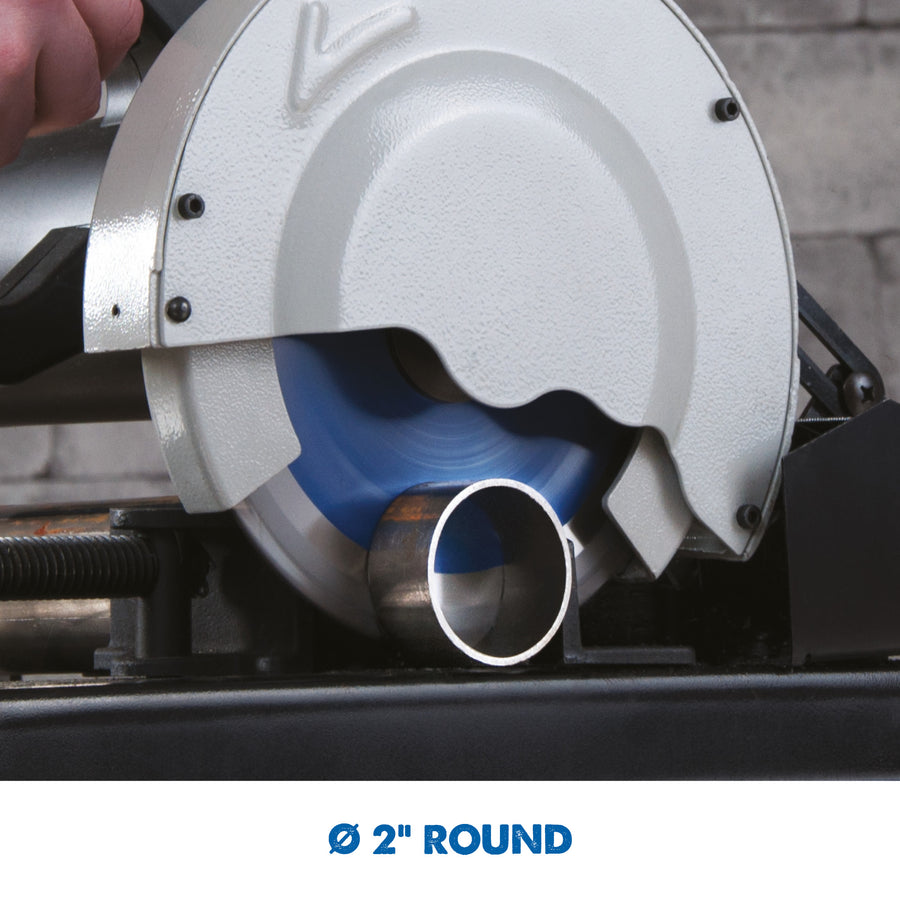

Round Tube at 90° (Mild Steel): ø 2 In.
Round Tube at 45° (Mild Steel):

ø 2 In.

Items Included:

ø 2 In.

40T Mild Steel TCT Blade
Hex Key 6mm (Vise Adjustment)
Hex Key 5mm (Blade Change)
Hex Key 3mm (Upper Blade Guard)
Dust Extraction Port 36mm
Speed Handle
Spare Motor Brushes (1 set)
Dimensions & Weights:
Product Dimensions: 20-1/8 In. x 13 In. x 13 In.
Packaging Dimensions: 20-5⁄64 In. x 12-19⁄32 In. x 12-13⁄64 In.
Product Weight: 23 lbs
