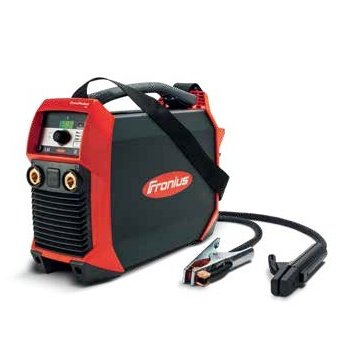

TRANSPOCKET 180 STICK Ready2Weld Package
  • SKU: 4904100063

TRANSPOCKET 180 STICK Ready2Weld Package

$2,104.95

Availability:   Usually in Stock and Ships in 1-2 Days

Stick electrode welding machine with DC TIG welding package.

The new generation of TransPocket 180 devices are cutting-edge multi-voltage portable welding machines with numerous functions that simplify work for the user, increasing productivity and improving weld quality.

  • Input Voltage 230V / 120V single phase
  • 10-220A DC output (230V TIG)
  • 10-170A DC output (120V TIG)
  • Pulse welding settings
  • Internal gas solenoid with post flow settings
  • 180A output (230V Stick)
  • 120A output (120V Stick)
  • weld with all types of stick electrodes up to 5/32"
  • Switchable operating modes designed for traditional electrodes or Cellulose 6010 electrodes
  • Dust and moisture resistant design
  • Impact resistant and engineered to be almost indestructible
  • Easily portable at 19.6lbs (8.9kg)
  • *Carrying case included (Toolcase 85)
  • 3 year Fronius Warranty

The integrated PFC (Power Factor Correction) technology supports the use of extremely long mains leads of up to 100 m in length. The operating concept has also become even more intuitive. A 7-segment display makes it possible to quickly read off the parameters that have been configured. In addition, the display is slightly set back and therefore well protected against damage. Easily comprehensible setup settings are a tremendous help in simplifying operation.



    2% THORIATED (RED) EWTh-2/WT20
    Principal Oxide: 1.7–2.2% Thorium Oxide

    Radioactive. Best for use in Direct Current (D/C) applications using transformer based constant current power sources. Best for use on non corroding steels, titanium alloys, nickel alloys, copper alloys. Good D/C arc starts and stability, medium erosion rate, medium amperage range, medium tendency to spit.

    0.8% ZIRCONIATED  (WHITE)  EWZr-8/WZ8
    Principal Oxide: 0.7–0.9% Zirconium Oxide

    Non-Radioactive. Best for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys using inverter or transformer based constant current power sources. Balls well, handles higher amperage than pure tungsten with lesspitting, better arc starts and arc stability than pure tungsten.

    1.5% LANTHANATED (GOLD) EWLa-1.5/WL15
    Principal Oxide: 1.3–1.7% Lanthanum Oxide

    Non-Radioactive. Best for use in Direct Current (D/C) as an alternative to 2% Thoriated using inverter or transformer based constant current power sources. Best for non corroding steels, titanium alloys, nickel alloys, copper alloys. Best D/C arc starts and stability, low erosion rate, wide amperage range, no spitting.

    2% CERIATED (GRAY) FORMERLY ORANGE EWCe-2/WC20
    Principal Oxide: 1.8–2.2% Cerium Oxide

    Non-Radioactive. Best for use in Alternating Current (A/C) or Direct Current (D/C) applications using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good ignition and re-ignition properties, long service life, excellent arc stability. Low erosion rate, best at low amperage range, no spitting, good D/C arc starts and stability.

    PURE (GREEN) EWP/WP
    Principal Oxide: None

    NON-RADIOACTIVE. Good for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys in low to medium amperage applications using transformer based constant current power sources only. Balls easy, tends to spit at higher amperages. Used for non-critical welds only.

    2% LANTHANATED (BLUE) EWLa-2/WL20
    Principal Oxide: 1.8–2.2% Lanthanum Oxide

    Non-Radioactive. Best general purpose electrode for both Alternating Current (A/C) or Direct Current (D/C) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good arc starts and stability, medium to high amperage range, low erosion rate.

    LaYZr™ (CHARTREUSE) EWG
    Principal Oxides: 1.5% Lanthanum, 0.8% Yttrium Oxides, 0.8% Zirconium

    Non-Radioactive. Best for automated or robotic applications in Alternating Current (A/C) or Direct Current (D/C) due to low voltage tolerance (changes in tip to work piece distance) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Very stable tip geometry, runs cooler than 2% Thoriated with longer life, low to medium amperage range. Very best low amperage starts
