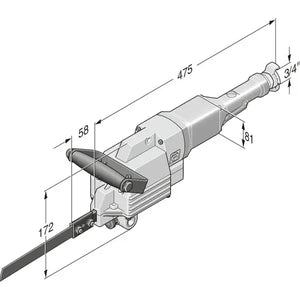

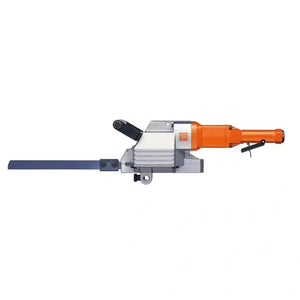

STS 325 R Pneumatic Hacksaw
STS 325 R Pneumatic Hacksaw
  • SKU: 75340813000

STS 325 R Pneumatic Hacksaw

$3,652.00
Shipping calculated at checkout.
Product Availability Ask about this product
Hacksaw for pipes up to Ø 24 in

Pneumatic hacksaw for pipes and profiled sections.


  • Ideally suited for cutting pipes and profiles made of steel, cast iron, autoclaved aerated concrete, and plastics.
  • Clamp and feed device available for profiles and pipes from Ø 3-1/8 in [80 mm] to Ø 24 in [400 mm].
  • Adjustable clamping devices permit mitre cuts up to 45° as well.
  • Clamp and feed device available.
  • Adjustable clamping fixtures.
  • * Chain extension available.

INCLUDES

  • 2 saw blades (type 063)
  • 1 wrench set
  • 1 additional handle
  • 1 hose coupling
Technical Data
Operating pressure 87 [6.0] psi[bar]
Air consumption 51.2 [1.45] cfm[m³/min]
Power output 1,100 W
Strokes 330 spm
Stroke of blade 2-1/4 [60] in[mm]
Pipes up to Ø 17-1/4 [440] * in[mm]
Profiles up to W x H 11-1/2 [290] x 19-3/4 [500] in[mm]
Weight 15.87 [7.20] lbs[kg]
Weight 15.87 lbs
