Router Plunge 35 Hp Variable Speed
Router Plunge 35 Hp Variable Speed
  • SKU: RP2301FC

Router Plunge 35 Hp Variable Speed

  • Electronic Speed Control maintains constant speed under heavy load
  • Linear Bearing Slide Mechanism allows extremely smooth plunge action
  • Larger Ball Bearings on Armature enhance durability of tool
  • Labyrinth Retainers and Fan prevent contamination of motor
  • Plunge Depth can be adjusted from the bottom of the router when mounted in a router table
  • Trigger Switch with Lock-On/Off Button located on handle for operator convenience
  • 3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
  • Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
  • Dual LED Job Lights with Afterglow
  • Sub-Base accepts industry standard template guides
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

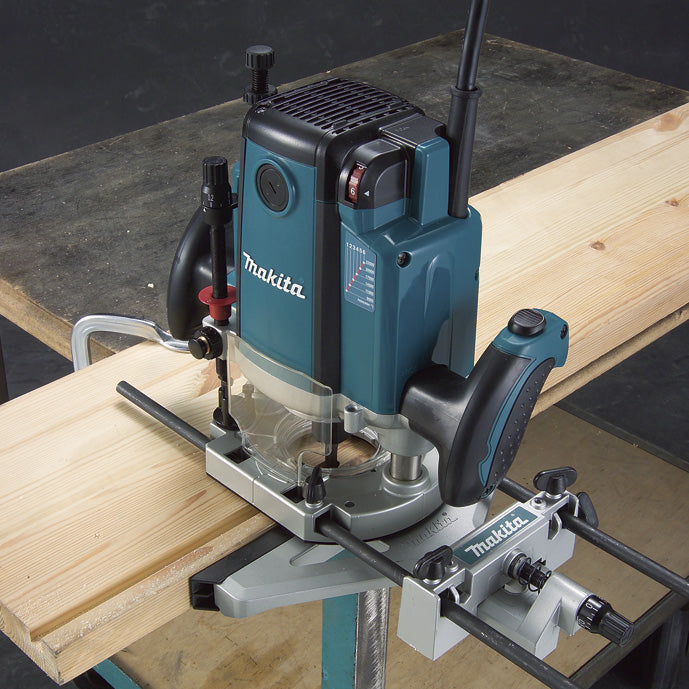

  • Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

Items Included: Depth Adjustment Knob (158980-5), 1/4" Collet Sleeve (763803-0), 1/2" Collet Cone (763622-4), Wrench 24 (781030-7)


Collet Capacity 1/2" (12.7 mm)
Plunge Capacity 2-3/4" (70 mm)
No Load Speed 9,000 - 22,000 RPM
AMPS (120V) 15.0 A
Vibration Level 4.5 m/s2
Noise Level 87 dB(A)
Base Diameter 6-11/16" (170 mm)
Overall Height 12-1/4" (312 mm)
Net Weight 13.4 lbs (6.1 kg)
