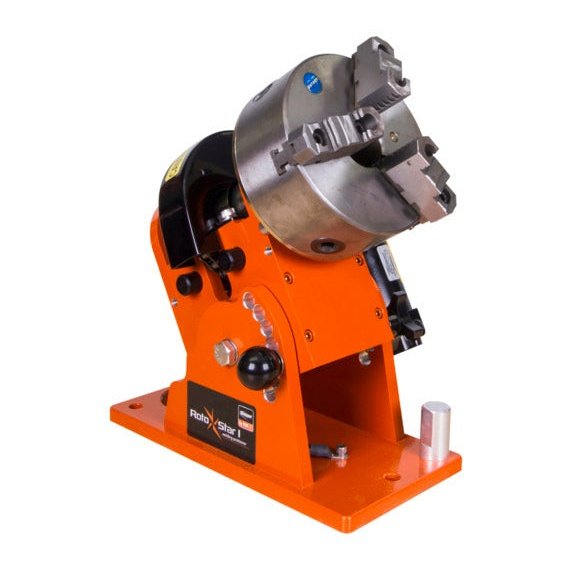

Roto-Star 1 Welding Positioner c/w 6 in. Chuck ROTO1
Guaranteed Safe Checkout
Pickup currently unavailable at Regina
Pickup available
-
Regina
Pickup currently unavailable
1238 Lorne Street
Check in google map
Unit #1
Regina SK S4R 2J9
Canada -
Saskatoon
Pickup currently unavailable
2815B Cleveland Avenue
Check in google map
Saskatoon SK S7K 8G1
Canada
Rotary welding positioner with chuck for work pieces up to 200 [90] lbs[kg] and 3-1/2 [89] in[mm] diameter with standard foot pedal and control box.
- Provides stable work platform for increased productivity and seamless welds.
- Rotates a full 360 degree at a steady speed to weld safely and quickly.
- Pitch up to a 90 degree angle at 15 degrees increments offering enhanced mobility and functionality.
- Increases safety by eliminating operator fatigue.
- Increases production by reducing handling and by maneuvering of parts.
- Light weight and heavy duty construction.
- Provides stable work area to perfect high quality welds.
- Optional rotary 12 [305] in[mm] surface plate.
- Optional variable speed foot pedal and with control box.
Includes
- 1 chuck
- 1 standard foot pedal
- 1 control box
Technical Data
Current/Voltage | 1 x 120 V |
---|---|
Chuck | 6 [150] in[mm] |
Rotation at 0° | 16 [406] in[mm] |
Vertical carrying capacity | 200 [90.5] lbs[kg] |
Horizontal carrying capacity | 100 [45.5] lbs[kg] |
Internal chuck dia. | 1-1/2 [38] in[mm] |
Spindle speed | 0-10 rpm |
Tilt adjustment | 0-90° |
Grounding output | 300 Amp |
Weight | 60 [27] lbs[kg] |
