Pro-Tools Round Tube Die for 302
  • SKU: D-302-RM-28.0-3.0

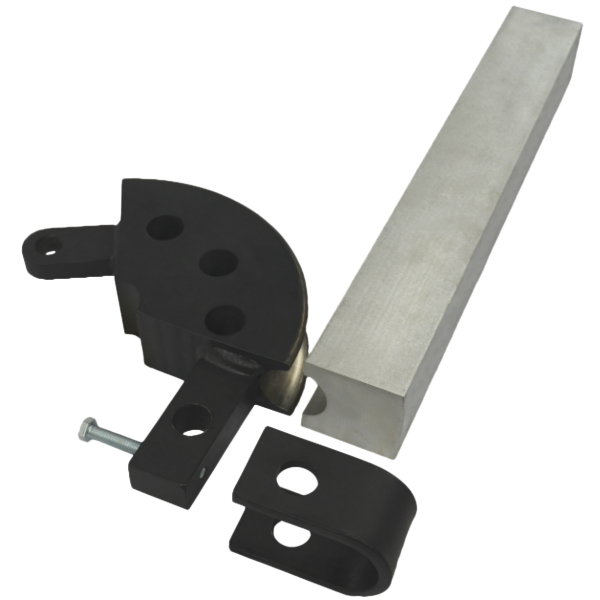

Pro-Tools Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (28 mm OD 762 mm CLR)

$682.95
Shipping calculated at checkout.

Specs

  • Outside Diameter of the Tubing (OD): 28.0 mm
  • Minimum Wall Thickness (DOM): 0.095” (2.4 mm)
  • Minimum Wall Thickness (4130): 0.095” (2.4 mm)
  • Minimum Wall Thickness (ERW): 0.109” (2.8 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 3” (76.2 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
