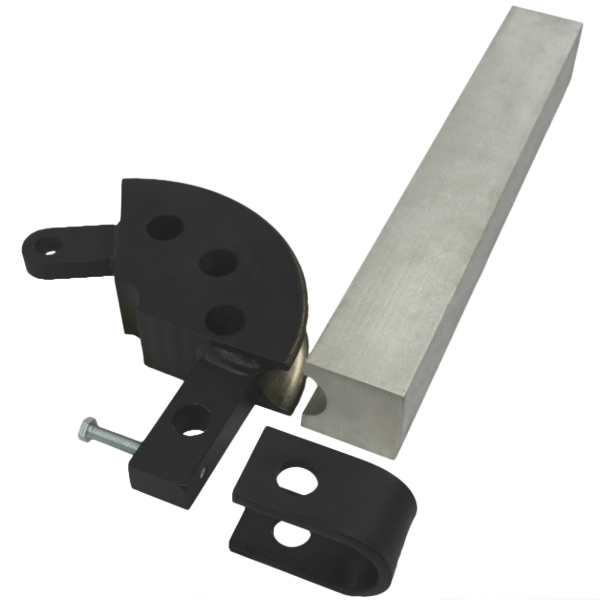

Pro-Tools Schedule 40 Pipe Die for 302 "One-Shot" Tube and Pipe Bender (NPS 1-1/2 5" CLR)

Specs

• Nominal Pipe Size (Diameter Nominal): NPS 1-1/2 (DN 35)
• Outside Diameter of Pipe: 1.900" (48.3 mm)
• Inside Diameter of Pipe: 1.610" (40.9 mm)
• Nominal Wall Thickness of Pipe: 0.145" (3.7 mm)*
• Centerline Radius: 5" (127 mm)
• Maximum Degree of Bend: 90, after springback
• *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

Includes

• Steel Main Die
• Aluminum Follow Bar
• Steel U-Strap

Resources

• Tube and Pipe Bending Basics
• What Am I Bending: The Differences Betweeen Tube, Pipe, and More

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
