Pro-Tools Round Tube Die for Portabender Tube and Pipe Bender 45 mm OD 6
  • SKU: D-200-RM-45.0-6.0

Pro-Tools Round Tube Die for Portabender Tube and Pipe Bender (45 mm OD 6" CLR)

$1,030.95
Shipping calculated at checkout.

Specs

  • Outside Diameter of the Tubing (OD): 45.0 mm
  • Minimum Wall Thickness (DOM): 0.120” (3.0 mm)
  • Minimum Wall Thickness (4130): 0.120” (3.0 mm)
  • Minimum Wall Thickness (ERW): 0.125” (3.2 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 6” (152.4 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

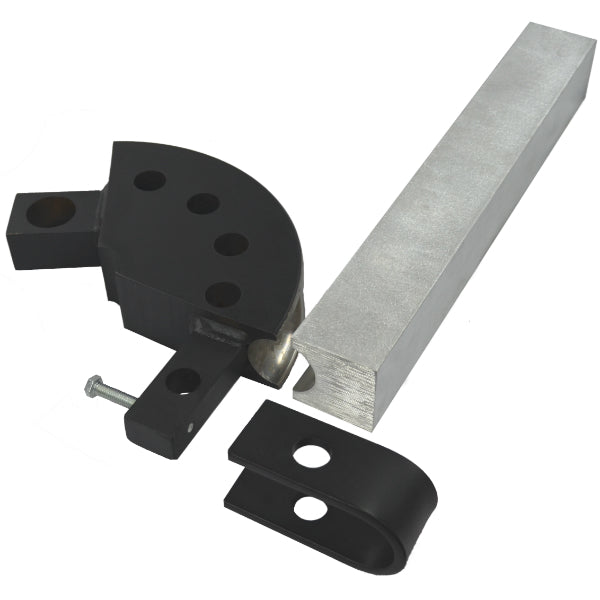

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
