Pro-Tools Round Tube Die for Portabender Tube and Pipe Bender 20 mm OD 1016 mm CLR
  • SKU: D-200-RM-20.0-4.0

Pro-Tools Round Tube Die for Portabender Tube and Pipe Bender (20 mm OD 1016 mm CLR)

$604.95

Availability:   Usually in Stock and Ships in 1-2 Days

Specs

  • Outside Diameter of the Tubing (OD): 20.0 mm
  • Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
  • Minimum Wall Thickness (4130): 0.058” (1.5 mm)
  • Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 4” (101.6 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

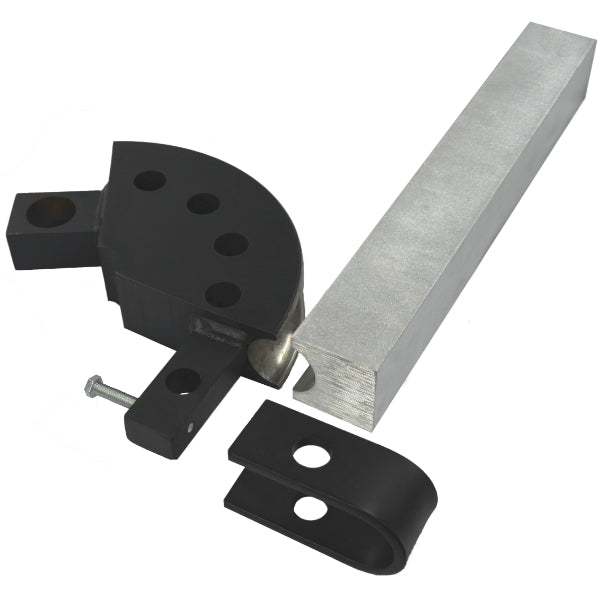

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
