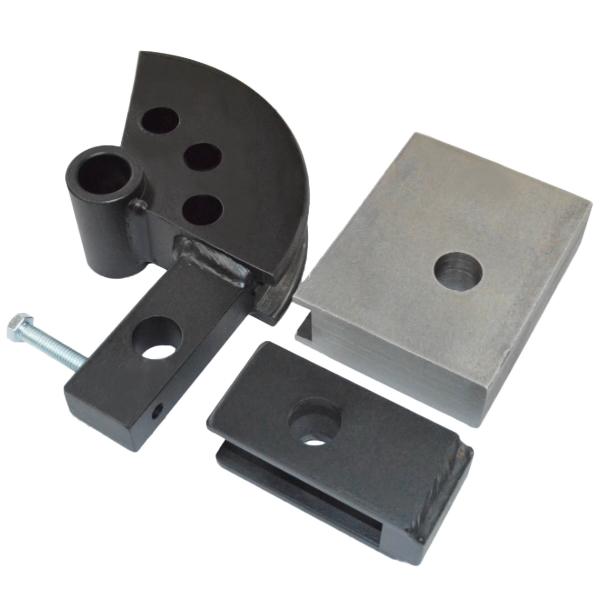

Pro-Tools 90 Degree Square Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender 1-1/4
  • SKU: D-105-S-120-1.250-5.0
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Pro-Tools 90 Degree Square Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-1/4" OD 5" CLR)

$586.95

Specs

  • Outside Diameter of the Tubing (OD): 1-1/4" (31.8 mm)
  • Minimum Wall Thickness (Mild Steel): 0.065" (1.7 mm)
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.125" (3.2 mm)
  • Centerline Radius: 5" (127 mm)
  • Maximum Degree of Bend: 90, after springback

Includes

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
