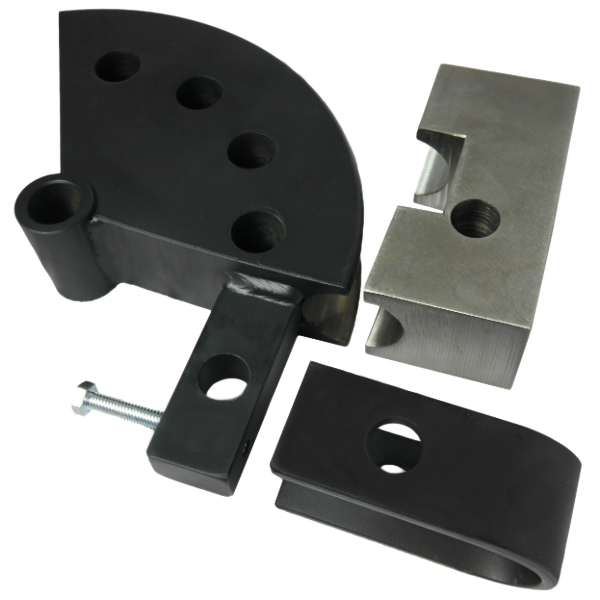

Pro-Tools 90 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender 200 mm OD 1143 mm CLR
  • SKU: D-105-RM-120-20.0-4.5

Pro-Tools 90 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (200 mm OD 1143 mm CLR)

$475.95
Shipping calculated at checkout.

Specs

  • Outside Diameter of the Tubing (OD): 20.0 mm
  • Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
  • Minimum Wall Thickness (4130): 0.058” (1.5 mm)
  • Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 4-1/2" (114.3 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

Includes

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
