Home Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-3/4" OD 7" CLR)
Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender 1-3/4" OD 7" CLR

Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-3/4" OD 7" CLR)

Sale price $1,097.95
Add to Wishlist Add to Compare

Ask a question
Share

Guaranteed Safe Checkout

Visa
Mastercard
American Express
Shop Pay
Google Pay
Vendor: Vendor: Pro-Tools
SKU: D-105-R-240-1.750-7.0Barcode: TRUE

Pickup available at Regina Usually ready in 24 hours

Pickup available
Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender 1-3/4" OD 7" CLR

Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-3/4" OD 7" CLR)

$1,097.95

Specs

  • Outside Diameter of the Tubing (OD): 1-3/4" (44.5 mm)
  • Minimum Wall Thickness (DOM): 0.095" (2.4 mm)
  • Minimum Wall Thickness (4130): 0.095" (2.4 mm)
  • Minimum Wall Thickness (ERW): 0.083" (2.1 mm)
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 7" (177.8 mm)
  • Maximum Degree of Bend: 180, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

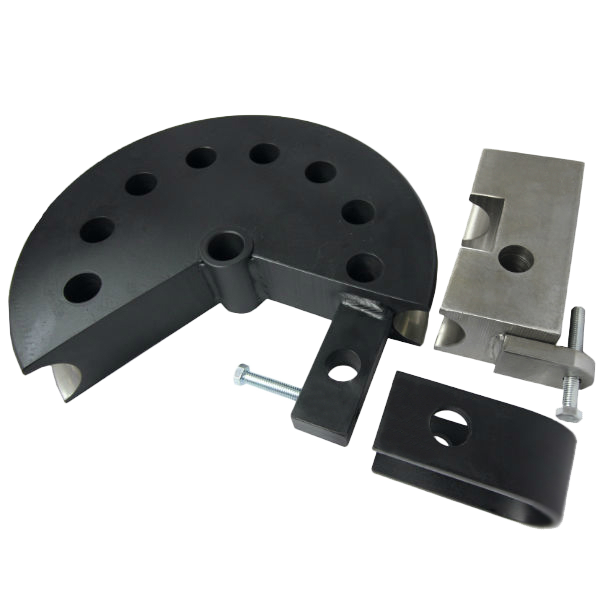

Includes

  • Steel Main Die
  • Steel Backing Block with Anti-Springback Tab
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
