Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender 1-1/4
  • SKU: D-105-R-240-1.250-4.0

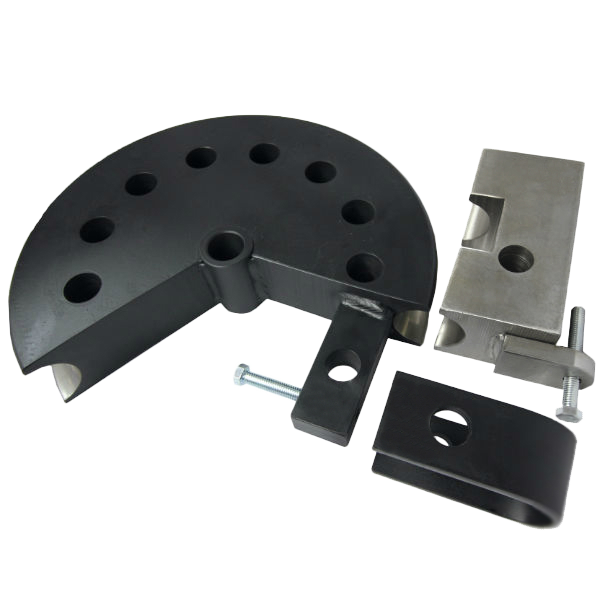

Pro-Tools 180 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-1/4" OD 4" CLR)

$604.95

Availability:   Usually in Stock and Ships in 1-2 Days

Specs

  • Outside Diameter of the Tubing (OD): 1-1/4" (31.8 mm)
  • Minimum Wall Thickness (DOM): 0.065" (1.7 mm)
  • Minimum Wall Thickness (4130): 0.065" (1.7 mm)
  • Minimum Wall Thickness (ERW): 0.083" (2.1 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 4" (101.6 mm)
  • Maximum Degree of Bend: 180, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

Includes

  • Steel Main Die
  • Steel Backing Block with Anti-Springback Tab
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
