Pro-Tools 90 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (1-3/4" OD 7" CLR)

Specs

• Outside Diameter of the Tubing (OD): 1-3/4" (44.5 mm)
• Minimum Wall Thickness (DOM): 0.065” (1.7 mm)
• Minimum Wall Thickness (4130): 0.065” (1.7 mm)
• Minimum Wall Thickness (ERW): 0.083” (2.1 mm)
• Minimum Wall Thickness (Stainless): Contact for Details
• Minimum Wall Thickness (Aluminum): Contact for Details
• Minimum Wall Thickness (Other): Contact for Details
• Maximum Wall Thickness: 0.134” (3.4 mm)
• Centerline Radius: 7" (177.8 mm)
• Maximum Degree of Bend: 90, after springback
• Maximum Ovality: <10%, depending on the type, grade, and quality of the material

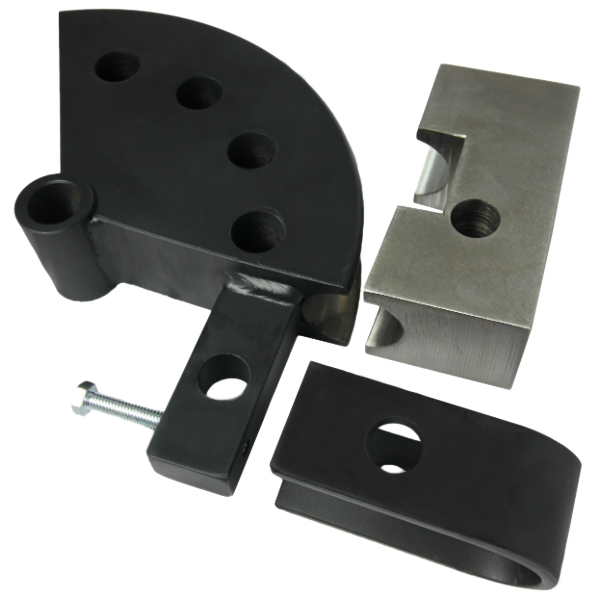

Includes

• Steel Main Die
• Steel Backing Block
• Steel U-Strap

Resources

• Tube and Pipe Bending Basics
• What Am I Bending: The Differences Betweeen Tube, Pipe, and More

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
