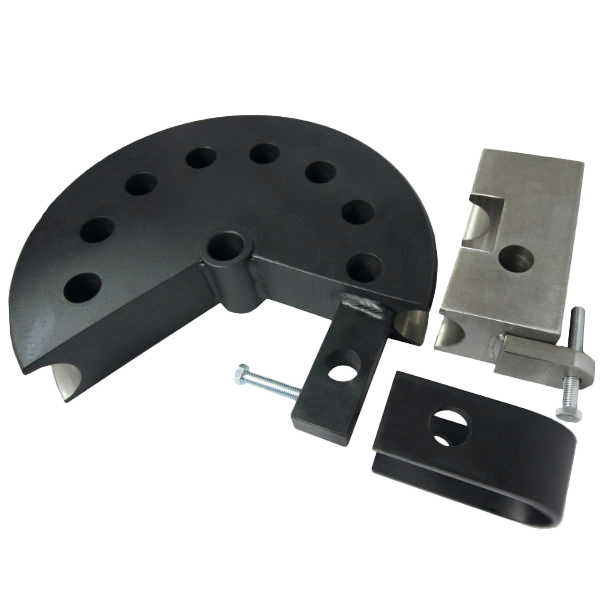

Pro-Tools 180 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (NPS 1 6" CLR)

Specs

• Nominal Pipe Size (Diameter Nominal): NPS 1 (DN 25)
• Outside Diameter of Pipe: 1.315" (33.4 mm)
• Inside Diameter of Pipe: 1.049" (26.6 mm)
• Nominal Wall Thickness of Pipe: 0.133" (3.4 mm)*
• Centerline Radius: 6" (152.4 mm)
• Maximum Degree of Bend: 180, after springback
• *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

Includes

• Steel Main Die
• Steel Backing Block with Anti-Springback Tab
• Steel U-Strap

Resources

• Tube and Pipe Bending Basics
• What Am I Bending: The Differences Betweeen Tube, Pipe, and More

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
