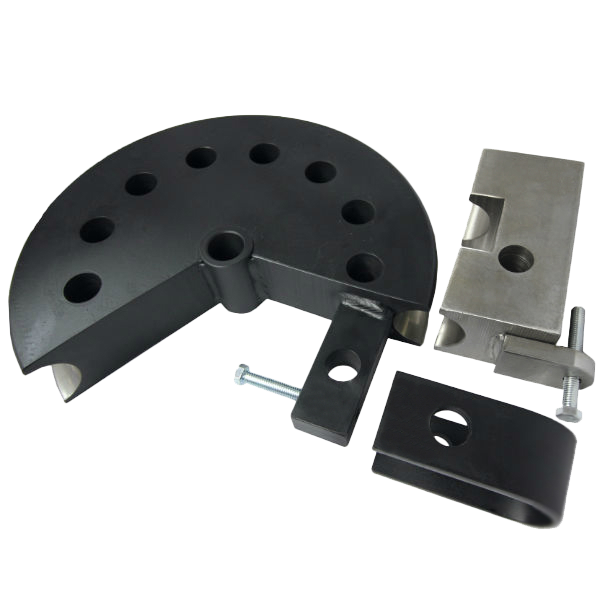

Pro-Tools 180 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (NPS 1/2 3-1/2" CLR)

Specs

• Nominal Pipe Size (Diameter Nominal): NPS 1/2 (DN 15)
• Outside Diameter of Pipe: 0.840" (21.3 mm)
• Inside Diameter of Pipe: 0.622" (15.8 mm)
• Nominal Wall Thickness of Pipe: 0.109" (2.8 mm)*
• Centerline Radius: 3-1/2" (88.9 mm)
• Maximum Degree of Bend: 180, after springback
• *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

Includes

• Steel Main Die
• Steel Backing Block with Anti-Springback Tab
• Steel U-Strap

Resources

• Tube and Pipe Bending Basics
• What Am I Bending: The Differences Betweeen Tube, Pipe, and More

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
