Pro-Tools 90 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender NPS 1-1/4 5
  • SKU: D-105-NPS-120-1.660-5.0
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Pro-Tools 90 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (NPS 1-1/4 5" CLR)

$578.95

Specs

  • Nominal Pipe Size (Diameter Nominal): NPS 1-1/4 (DN 30)
  • Outside Diameter of Pipe: 1.660" (42.2 mm)
  • Inside Diameter of Pipe: 1.380" (35.1 mm)
  • Nominal Wall Thickness of Pipe: 0.140" (3.6 mm)*
  • Centerline Radius: 5" (127 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

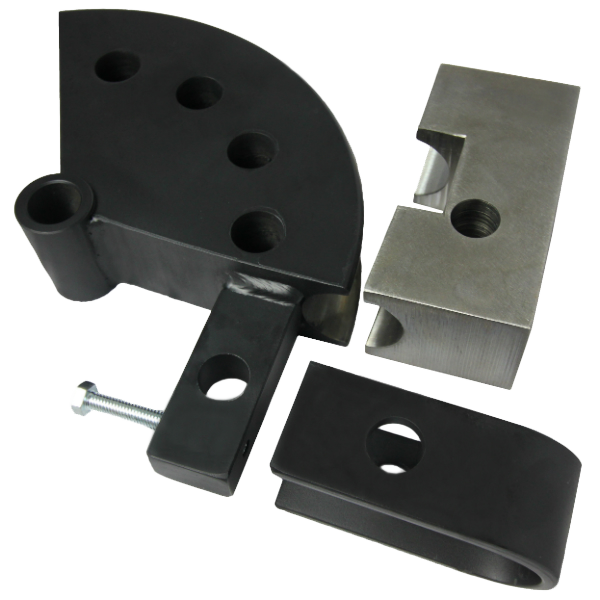

Includes

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
