Pro-Tools 90 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender NPS 3/4 3-1/2
  • SKU: D-105-NPS-120-1.050-3.5
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Pro-Tools 90 Degree Schedule 40 Pipe Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (NPS 3/4 3-1/2" CLR)

$423.95
Shipping calculated at checkout.

Specs

  • Nominal Pipe Size (Diameter Nominal): NPS 3/4 (DN 20)
  • Outside Diameter of Pipe: 1.050" (26.7 mm)
  • Inside Diameter of Pipe: 0.824" (20.9 mm)
  • Nominal Wall Thickness of Pipe: 0.113" (2.9 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

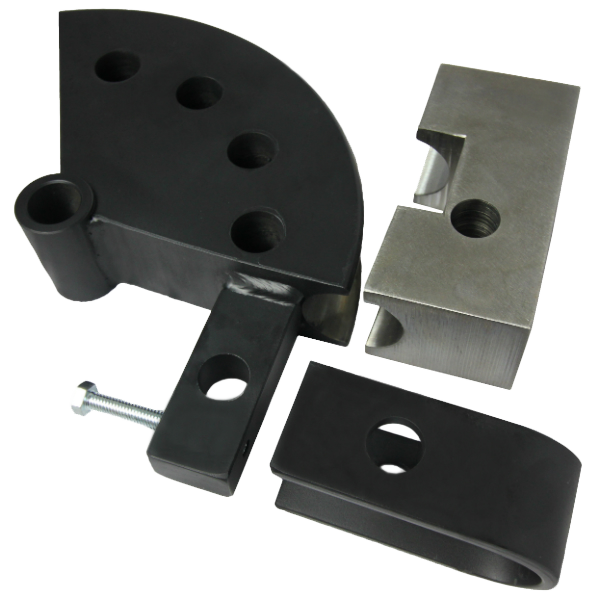

Includes

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
