Pro-Tools 180 Degree Square Tube Die for 105 Brute Tube and Pipe Bender 1
  • SKU: D-105-BRT-S-240-1.000-6.0
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

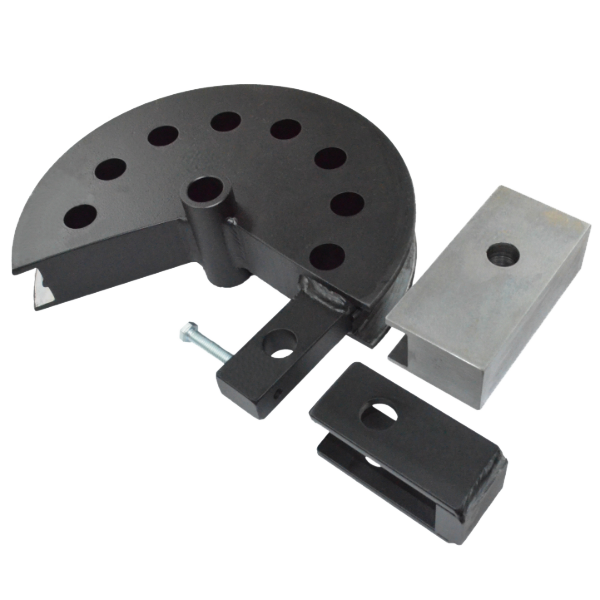

Pro-Tools 180 Degree Square Tube Die for 105 Brute Tube and Pipe Bender (1" OD 6" CLR)

$949.95

Specs

  • Outside Diameter of the Tubing (OD): 1" (25.4 mm)
  • Minimum Wall Thickness (Mild Steel): 0.065" (1.7 mm)
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.125" (3.2 mm)
  • Centerline Radius: 6" (152.4 mm)
  • Maximum Degree of Bend: 180, after springback

Includes

  • Steel Main Die
  • Steel Backing Block with Anti-Springback Tab
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
