Pro-Tools 180 Degree Round Tube Die for 105 Brute Tube and Pipe Bender (600 mm OD 1778 mm CLR)
Specs
- Outside Diameter of the Tubing (OD): 60.0 mm
- Minimum Wall Thickness (DOM): 0.120” (3.0 mm)
- Minimum Wall Thickness (4130): 0.120” (3.0 mm)
- Minimum Wall Thickness (ERW): 0.125” (3.2 mm)
- Minimum Wall Thickness (Stainless): Contact for Details
- Minimum Wall Thickness (Aluminum): Contact for Details
- Minimum Wall Thickness (Other): Contact for Details
- Maximum Wall Thickness: 0.134” (3.4 mm)
- Centerline Radius: 7” (177.8 mm)
- Maximum Degree of Bend: 180, after springback
- Maximum Ovality: <10%, depending on the type, grade, and quality of the material

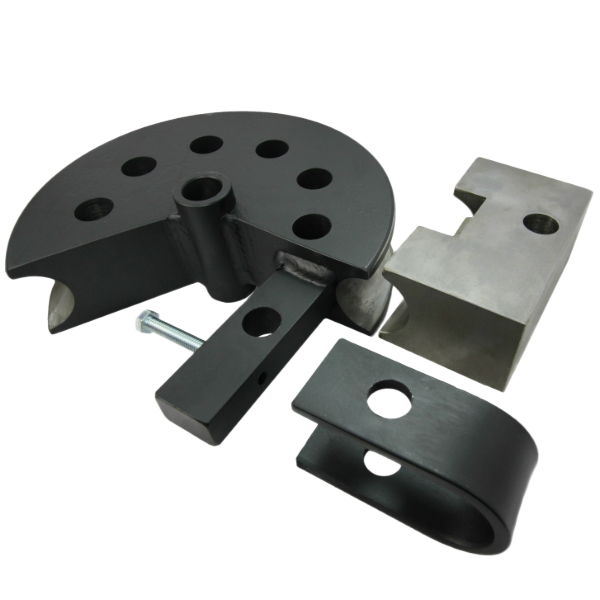

Includes
- Steel Main Die
- Steel Backing Block
- Steel U-Strap
