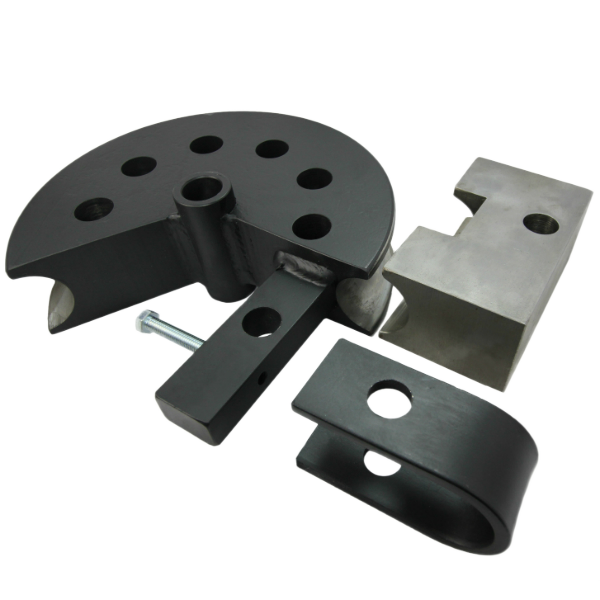

Pro-Tools 180 Degree Round Tube Die for 105 Brute Tube and Pipe Bender (1-1/2" OD 7" CLR)
Overview
Specs
- Outside Diameter of the Tubing (OD): 1-1/2" (38.1 mm)
- Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
- Minimum Wall Thickness (4130): 0.058” (1.5 mm)
- Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
- Minimum Wall Thickness (Stainless): Contact for Details
- Minimum Wall Thickness (Aluminum): Contact for Details
- Minimum Wall Thickness (Other): Contact for Details
- Maximum Wall Thickness: 0.134” (3.4 mm)
- Centerline Radius: 7” (177.8 mm)
- Maximum Degree of Bend: 180, after springback
- Maximum Ovality: <10%, depending on the type, grade, and quality of the material
Includes
- Steel Main Die
- Steel Backing Block
- Steel U-Strap
Resources
Lead Time
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.Reviews / FAQ
