Home Pro-Tools 90 Degree Round Tube Die for 105 Brute Tube and Pipe Bender (1-1/2" OD 4-1/2" CLR)
Pro-Tools 90 Degree Round Tube Die for 105 Brute Tube and Pipe Bender 1-1/2" OD 4-1/2" CLR

Pro-Tools 90 Degree Round Tube Die for 105 Brute Tube and Pipe Bender (1-1/2" OD 4-1/2" CLR)

Sale price $571.95
Add to Wishlist Add to Compare

Ask a question
Share

Guaranteed Safe Checkout

Visa
Mastercard
American Express
Shop Pay
Google Pay
Vendor: Vendor: Pro-Tools
SKU: D-105-BRT-R-120-1.500-4.5Barcode: TRUE

Pickup available at Regina Usually ready in 24 hours

Pickup available
Pro-Tools 90 Degree Round Tube Die for 105 Brute Tube and Pipe Bender 1-1/2" OD 4-1/2" CLR

Pro-Tools 90 Degree Round Tube Die for 105 Brute Tube and Pipe Bender (1-1/2" OD 4-1/2" CLR)

$571.95

Specs

  • Outside Diameter of the Tubing (OD): 1-1/2" (38.1 mm)
  • Minimum Wall Thickness (DOM): 0.095” (2.4 mm)
  • Minimum Wall Thickness (4130): 0.095” (2.4 mm)
  • Minimum Wall Thickness (ERW): 0.109” (2.8 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 4-1/2” (114.3 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

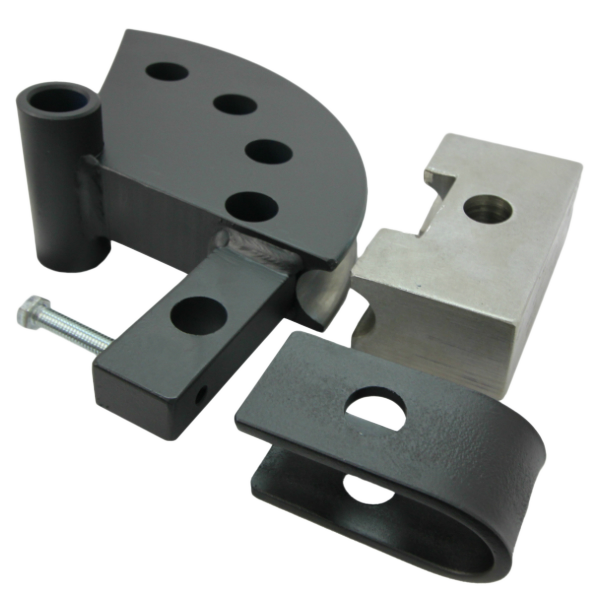

Includes

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
