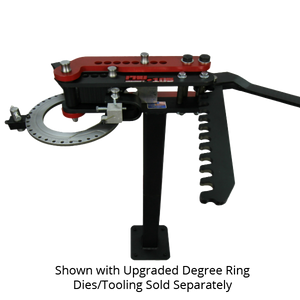

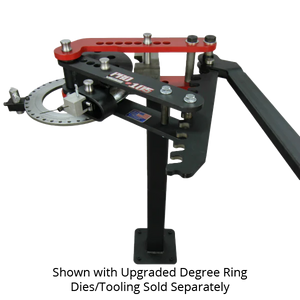

B-105-HD-PKG Pro-Tools Manual Tube and Pipe Bender 105 Series Package (Heavy Duty)
  • SKU: B-105-HD-PKG

Pro-Tools Manual Tube and Pipe Bender 105 Series Package (Heavy Duty)

$658.95

Specs

Round Tube

  • Minimum Outside Diameter (OD): 1/2" (12.7 mm)
  • Maximum Outside Diamter (OD): 2" (50.8 mm)
  • Minimum Wall Thickness: Depends on Die (See Die Charts)
  • Maximum Wall Thickness: 0.134"

Pipe

  • Minimum Size: NPS 1/4 (DN 8)
  • Maximum Size: NPS 1-1/2 (DN 35)
  • Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

Square Tube

  • Minimum Size: 1/2" (12.7 mm)
  • Maximum Size: 1-1/2" (38.1 mm)
  • Minimum Wall Thickness: 0.065" (1.7 mm)
  • Maximum Wall Thickness: 0.125" (3.2 mm)

Other Specifications

  • Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Charts for details.)
  • Maximum Centerline Radius (CLR): 7" (177.8 mm)
  • Maximum Degree of Bend: 180 degrees, depending on the die

Features

  • Great for custom fabrication applications
  • Bend up to 2", 0.134" tubing or NPS 1-1/2 pipe manually!
  • 100% Designed, Machined, and Assembled in the USA!
  • Designed for a lifetime of constant use
  • Forms quality, repeatable bends (less than 10% distortion in most cases)
  • Creates 180-degree bends in less than 2 minutes (requires appropriate die)
  • Tooling changes in less than 30 seconds
  • All parts are CNC-machined for accuracy
  • Heavy-duty 5/8”-thick frame arms
  • Full selection of over 300 dies
  • Converts to hydraulic in minutes

Includes

  • 105 Heavy Duty Tube and Pipe Bender
  • Extension Handle
  • Industrial Degree Ring with Stop and Pointer
  • Stand
  • U-Strap Pin, Center-Axis Pin, Backing Block Pin, Large Swing Arm Pin, Ratchet Handle Pin, & Small Swing Arm Pin
  • Tensioning Bolt

Warranty

Our 105 Heavy Duty Bender comes with a 1-year warranty against manufacturing defects. For full details on warranty and returns, see our full warranty policy.

Resources

Lead Time

Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
