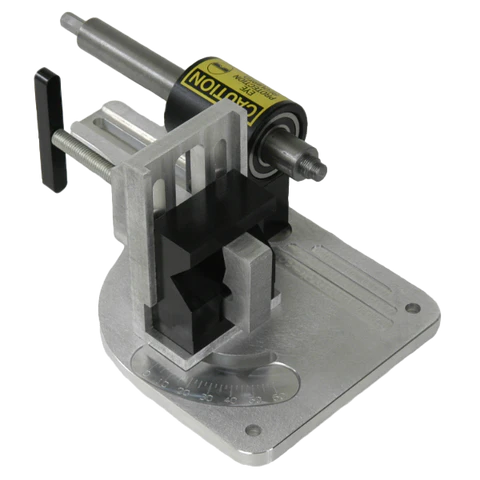

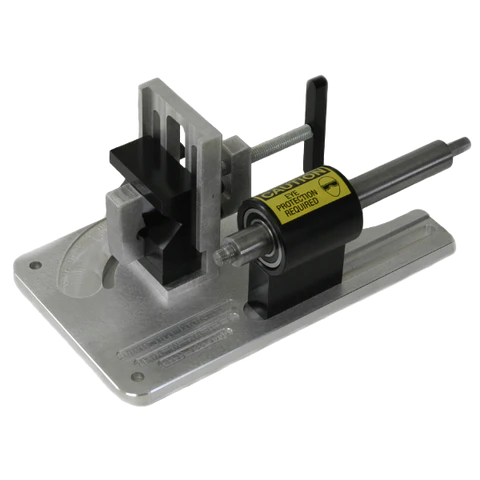

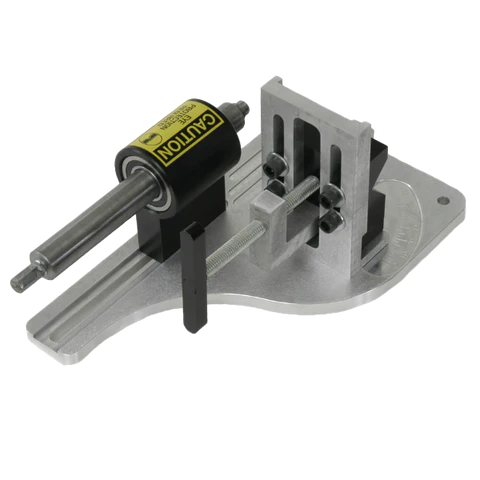

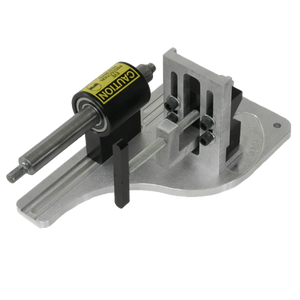

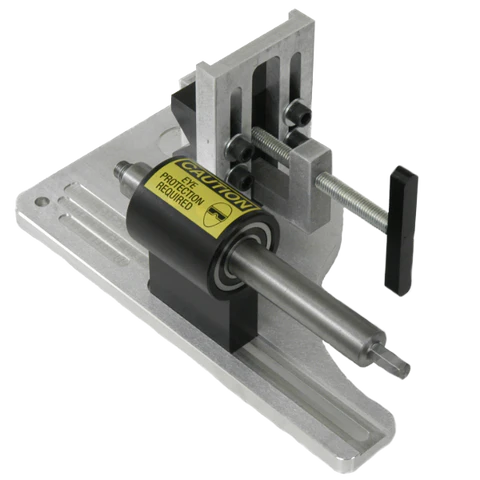

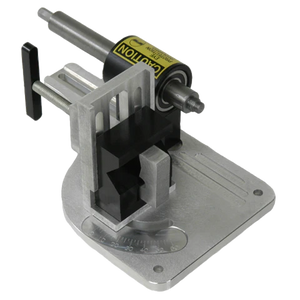

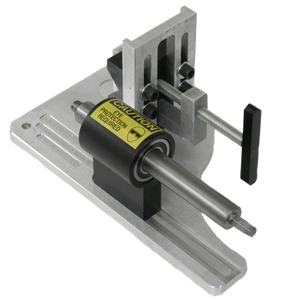

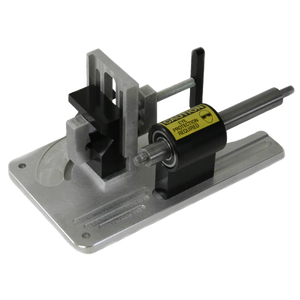

Pro+ Pipe And Tube Notcher

Round Tube

• Minimum Outside Diameter (OD): 1/2" (12.7 mm)
• Maximum Outside Diamter (OD): 2" (50.8 mm)

Pipe

• Minimum Size: NPS 1/4 (DN 8)
• Maximum Size: NPS 1-1/2 (DN 35)

Other Specifications

• Notch Angle: 0degrees-60degrees
• Offset Notching: Up to 1/2 the OD of your tube or pipe
• Minimum Chuck Size: 1/2" (12.7 mm)
• Minimum Required Chuck-to-Table Height (for drill press use): 16" (407 mm)
• Arbor Thread Sizes: 1/2-20 and 5/8-18 (accepts both)
