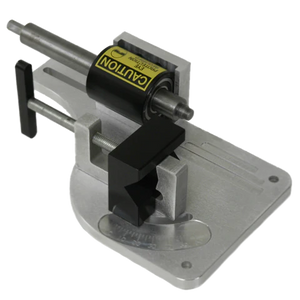

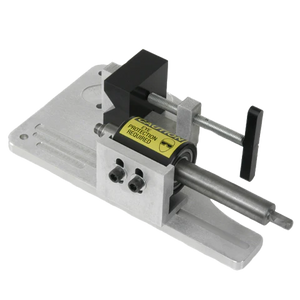

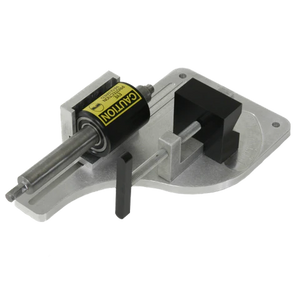

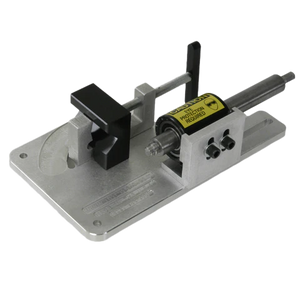

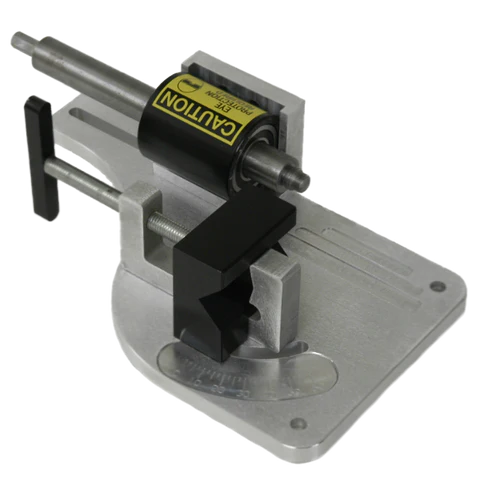

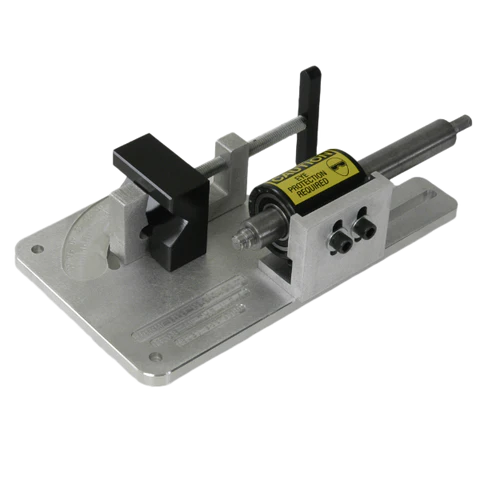

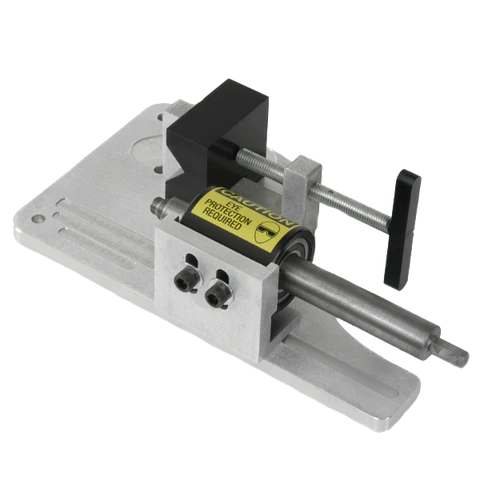

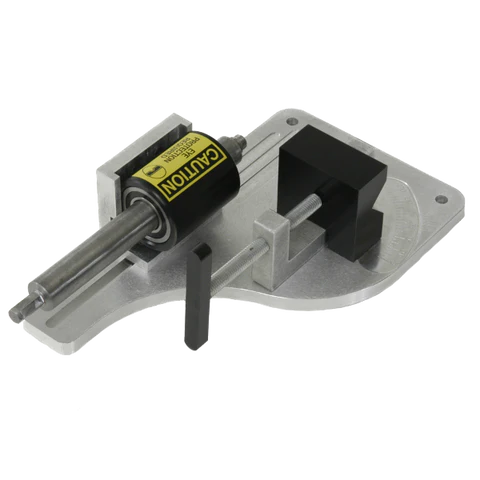

Pro Pipe And Tube Notcher
Pro Pipe And Tube Notcher
Pro Pipe And Tube Notcher
Pro Pipe And Tube Notcher
  • SKU: N-500

Pro Pipe And Tube Notcher

$286.95

Round Tube

  • Minimum Outside Diameter (OD): 1/2" (12.7 mm)
  • Maximum Outside Diamter (OD): 2" (50.8 mm)

Pipe

  • Minimum Size: NPS 1/4 (DN 8)
  • Maximum Size: NPS 1-1/2 (DN 35)

Other Specifications

  • Notch Angle: 0degrees-60degrees
  • Minimum Chuck Size: 1/2" (12.7 mm)
  • Minimum Required Chuck-to-Table Height (for drill press use): 16" (407 mm)
  • Arbor Thread Sizes: 1/2-20 and 5/8-18 (accepts both)
  • Offset Notching: None (See our Industrial Hole Saw Notcher for that capability.)
