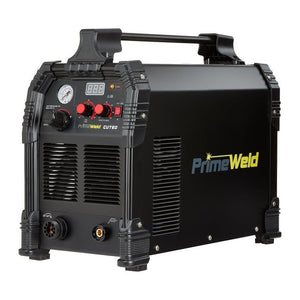

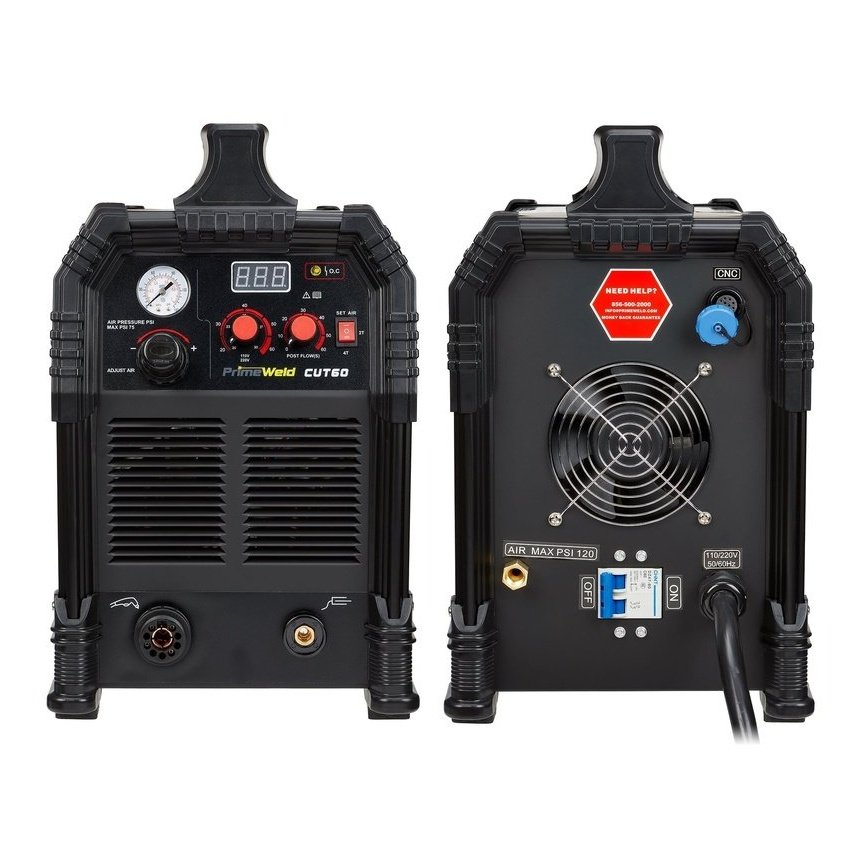

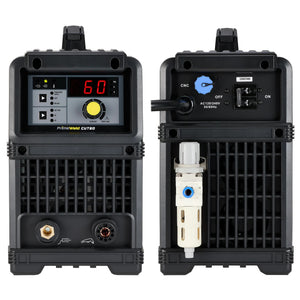

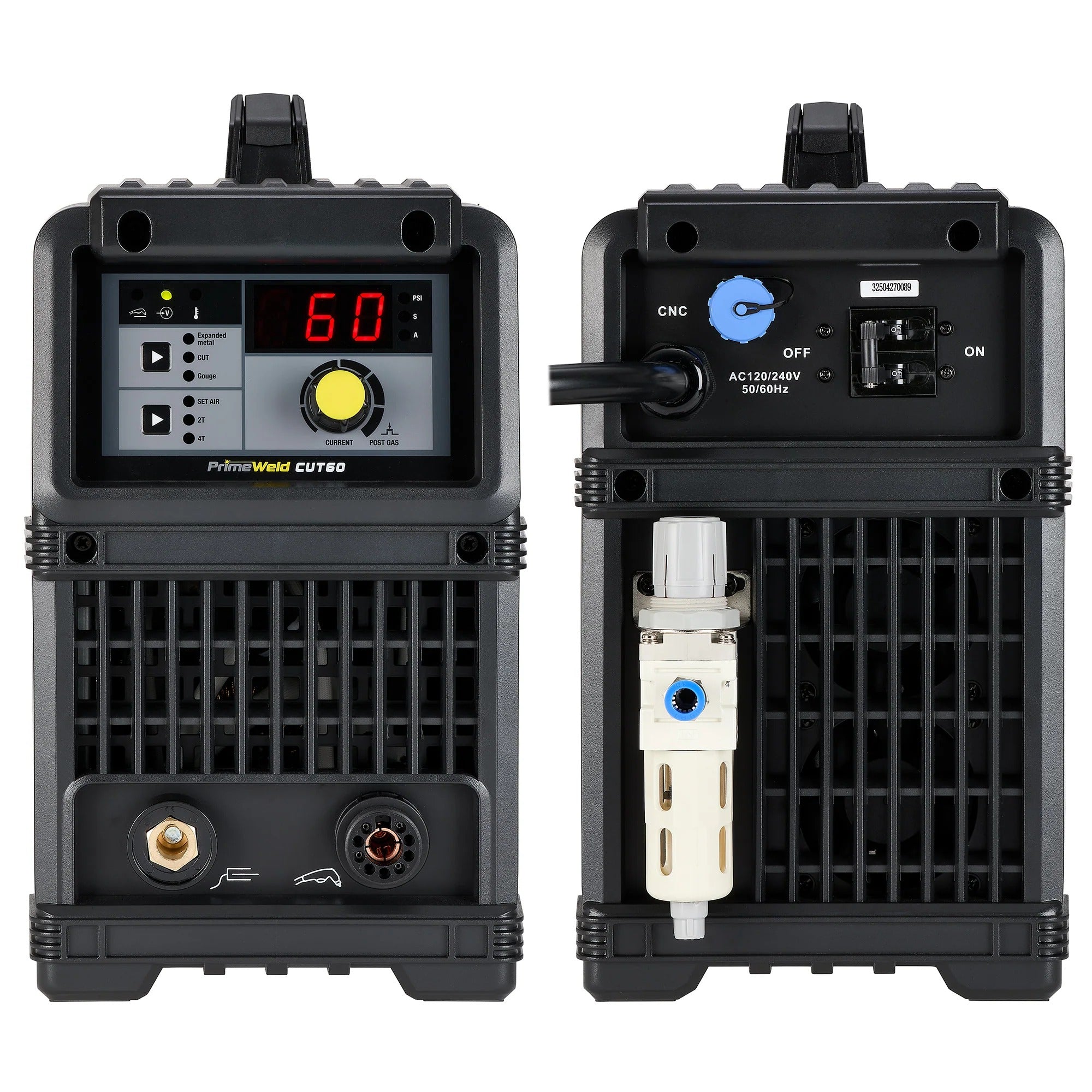

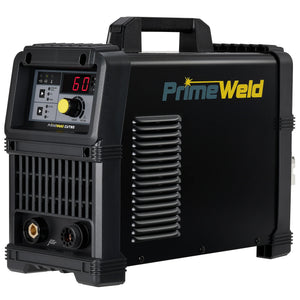

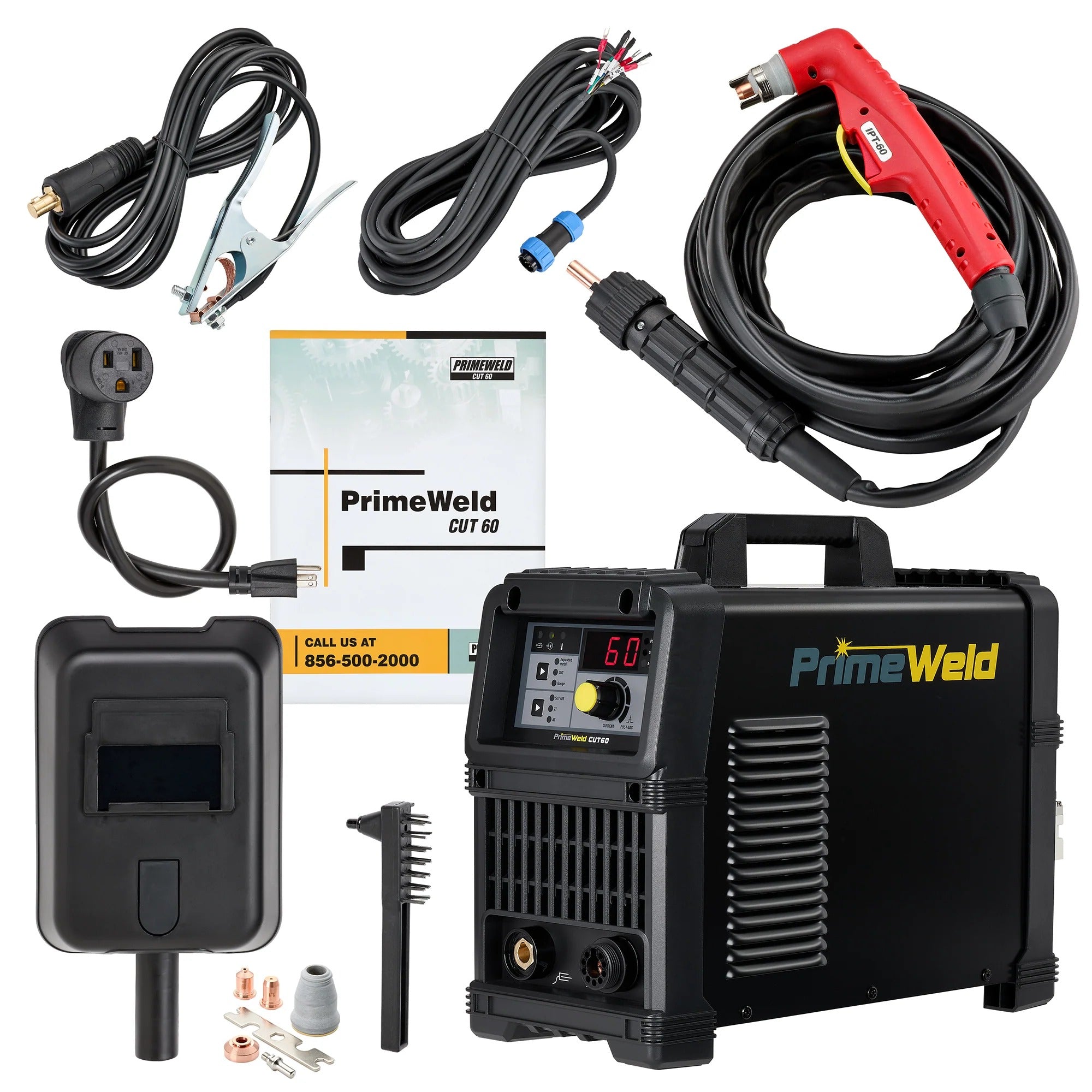

PrimeWeld’s CUT60 Dual Voltage 110v/220v 60 Amp Plasma Cutter brings plenty of fabrication power to your shop. The 60 amp max rating cuts steel up to 7/8-inch thick. At 20 amps output, this plasma cutter will cut as thin as 22 gauge sheet metal. Like every PrimeWeld welding machine, we built the CUT60 Plasma Cutter to withstand the tough conditions found in real-world workplaces.

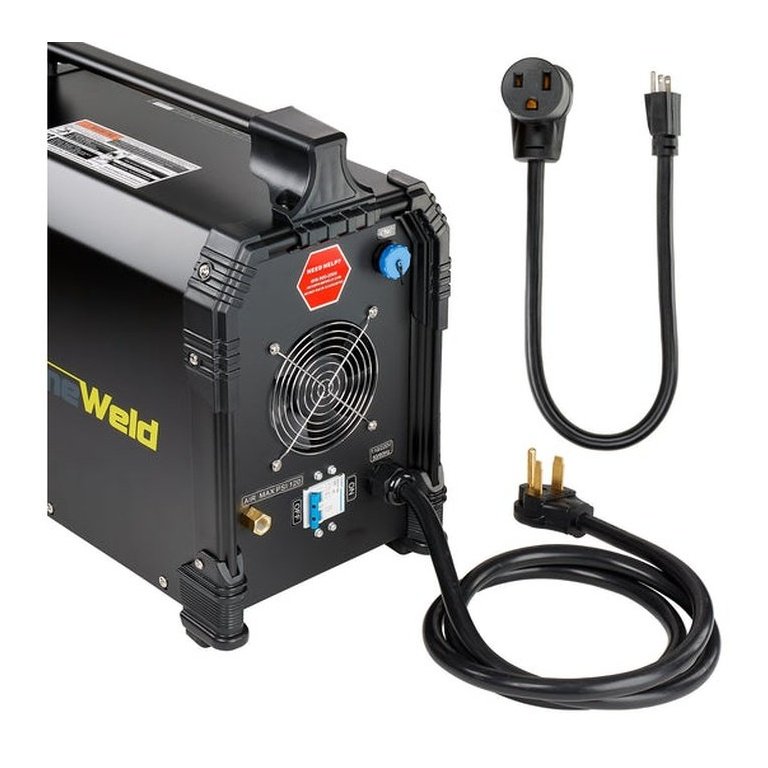

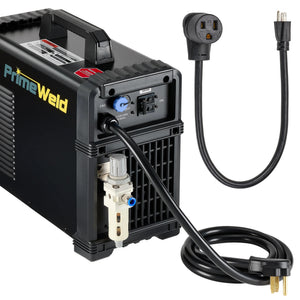

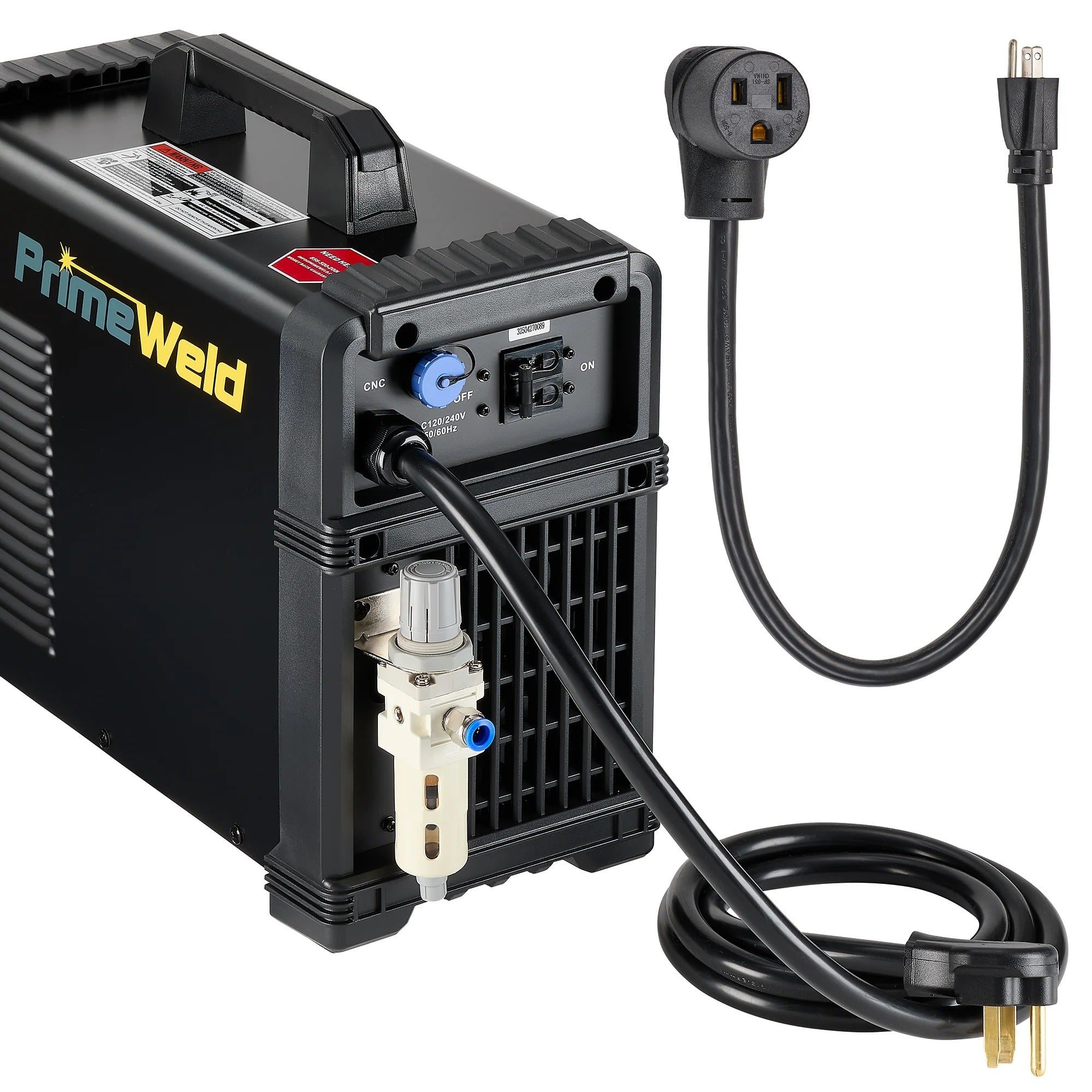

This plasma cutting machine features dual-voltage input with both 120-volt and 240-volt input power. It comes with a standard 3-pole 240 power cord and an adapter to plug into 120 volts. It has go-anywhere convenience that lets you tackle really tough cutting jobs, whether you have commercial power or want to plug it in at home.

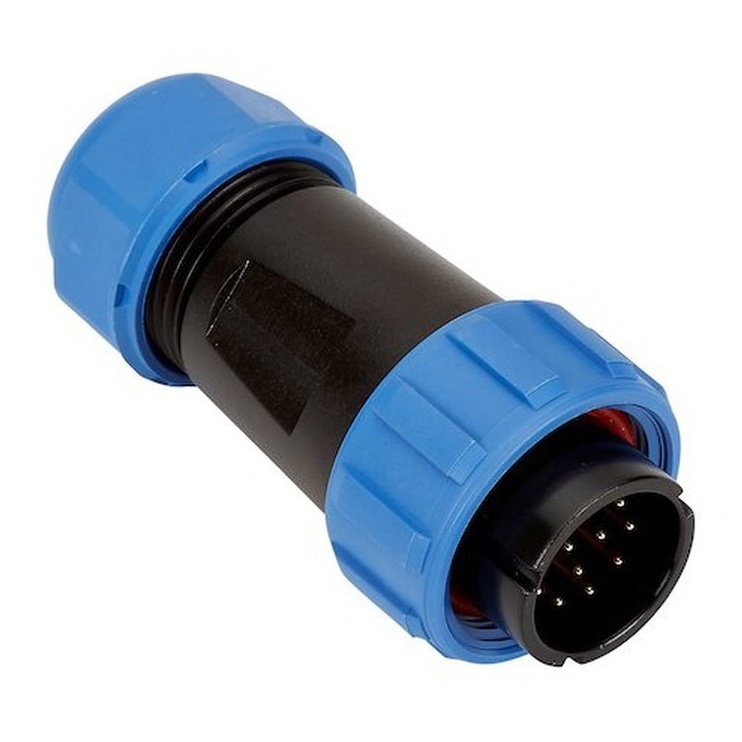

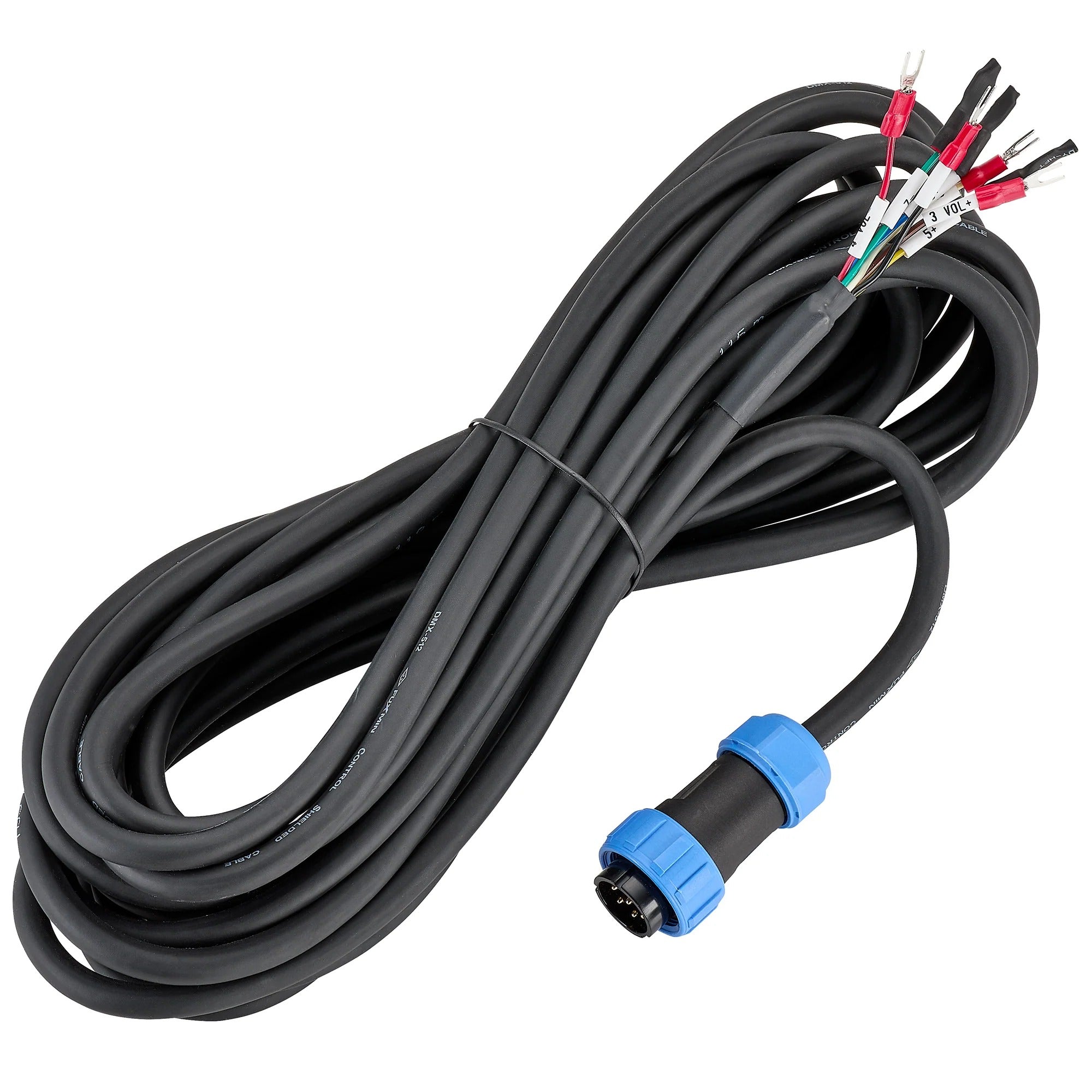

The PrimeWeld CUT60 110v 220v Plasma Cutter is excellent for CNC use. Plasma cutters that start the arc with high-frequency technology can interfere with digital electronics such as computers and cell phones, meaning welders can’t use them with a computer-controlled CNC plasma cutting table. This 60 amp plasma cutter solves that problem with a blowback pilot torch.

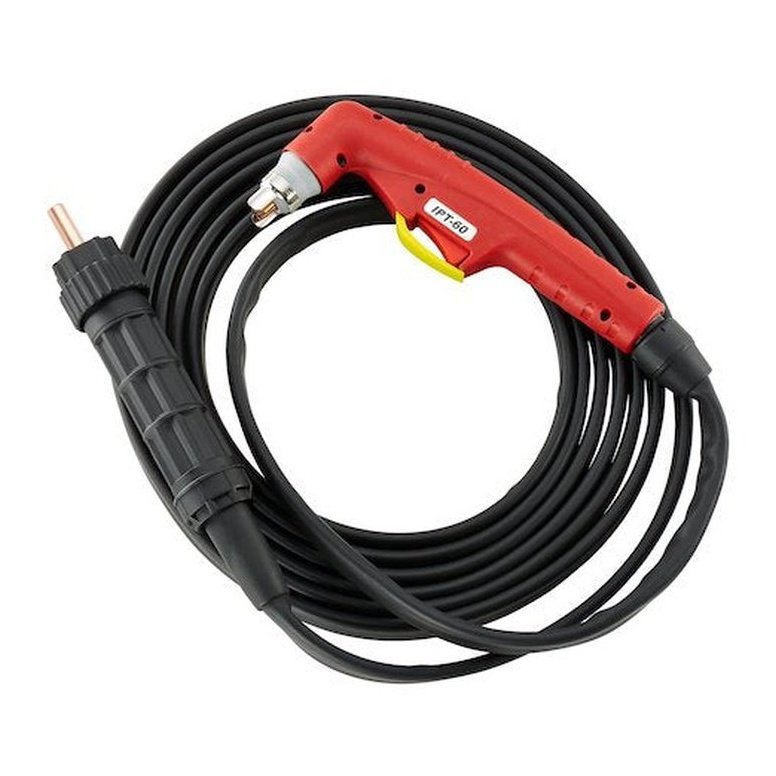

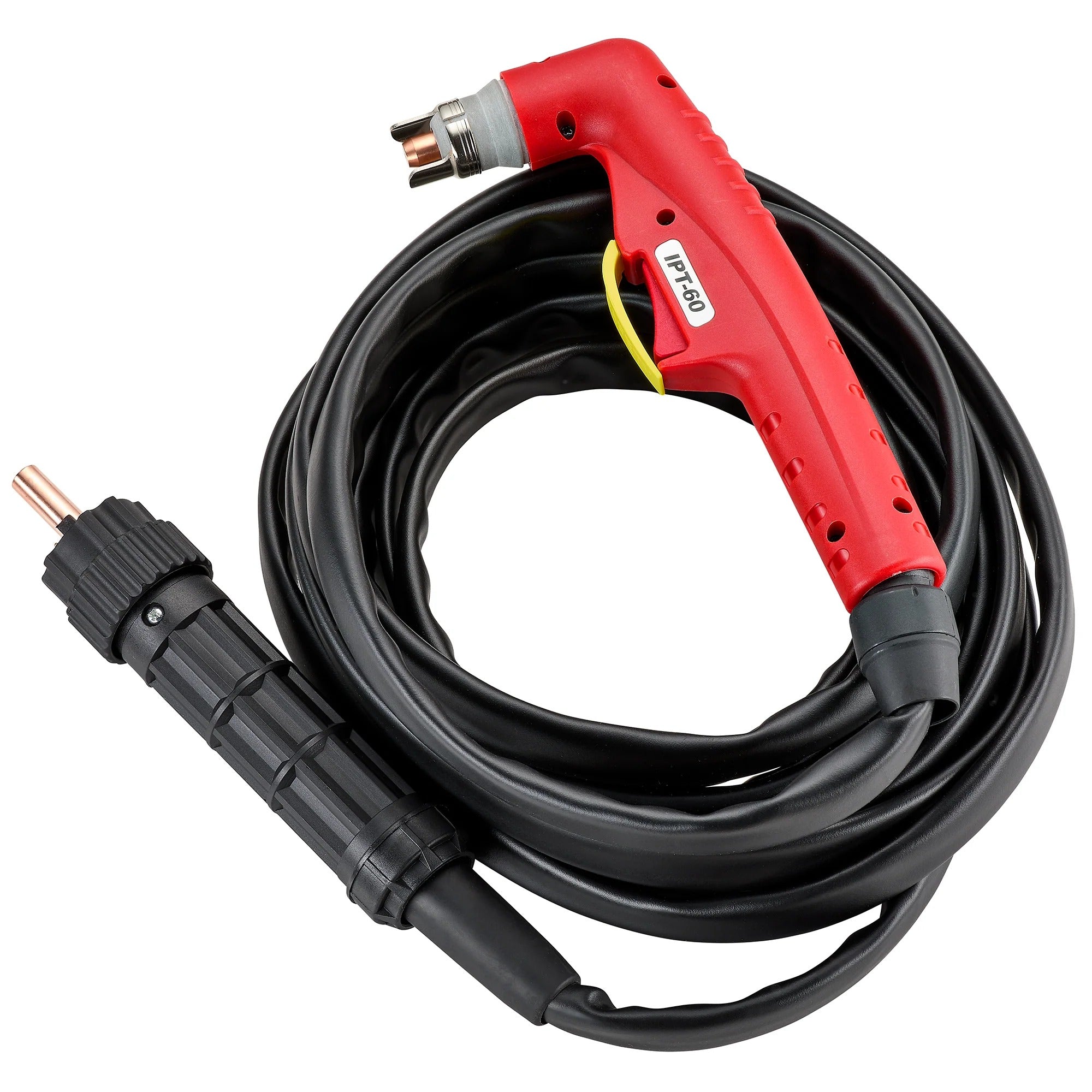

Blowback torches use a buildup of air pressure against the material surface. That pressure forces the electrode backward into the torch when you pull the trigger, firing the torch arc. You can also drag start this torch by touching it to the cutting surface and literally dragging the torch. Use affordable, powerful, and high-quality 60 amp plasma cutter for production runs of precision-cut parts and for complex artwork.
The PrimeWeld CUT60 Plasma Cutter also offers a continuous pilot arc, cutting material like grating, mesh steel, and expanded metal with ease. When the arc is in open spaces in the metal, the torch stops cutting until it reaches another solid place, then restrikes the cutting arc.
We connect you with real people who provide great advice and are easy to contact. They know how to troubleshoot every PrimeWeld model for optimum performance.
|Input voltage||1 phase AC, 110V +/- 15%||1 Phase AC, 220V +/- 15%|
Input connector type
Pre-wired for NEMA 6-50P

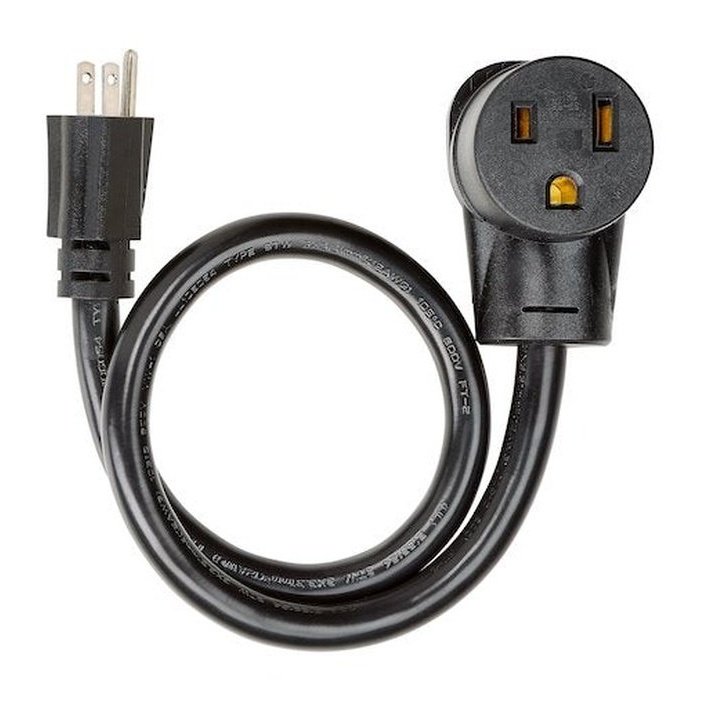

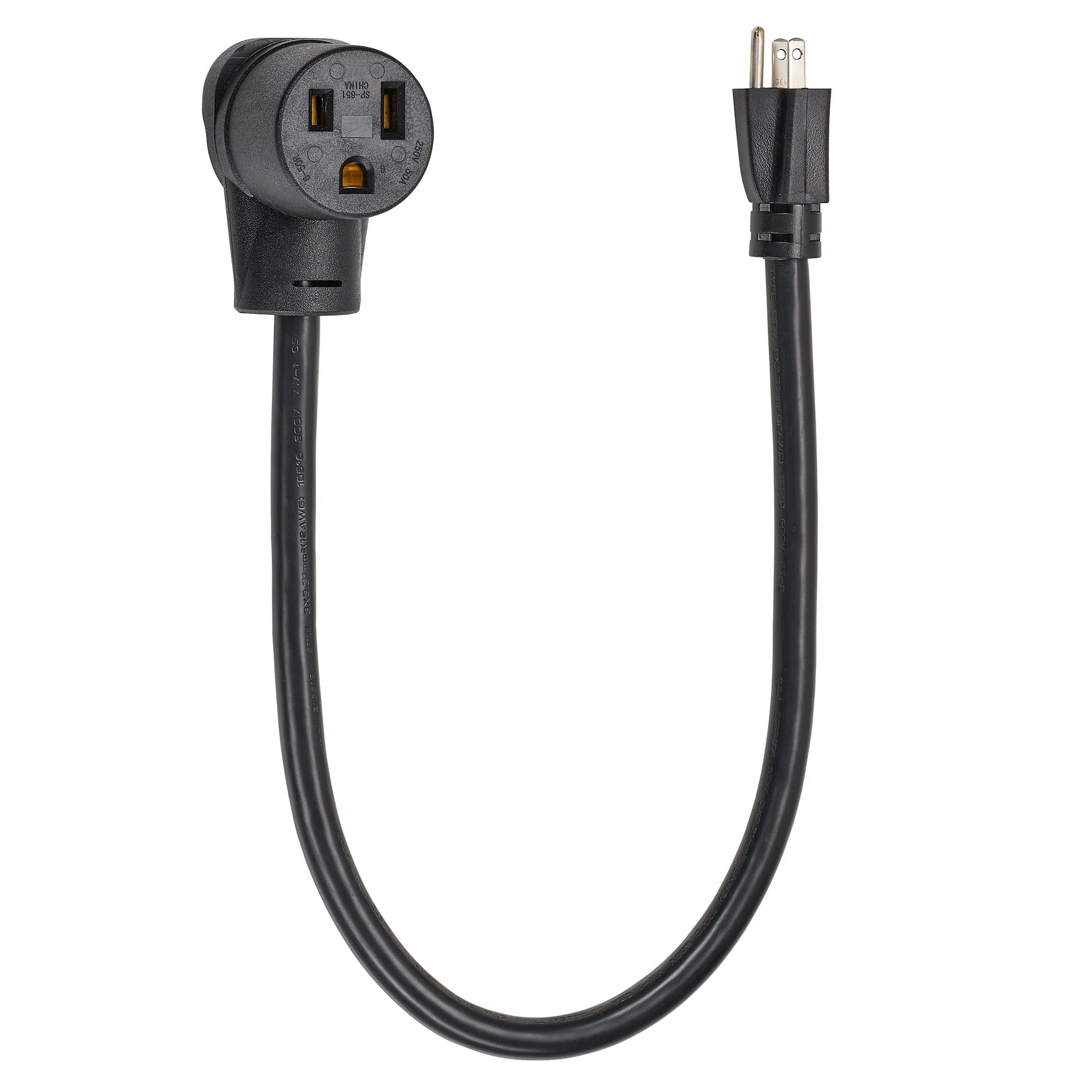

*adapter provided for
NEMA 6-50 to NEMA 5-15
(for 220V or 110V operations)
|Rated input current||
|Rated output voltage||
|Rated output current||
|Arcing start mode||Non HF style non contact start|
60% @ 30 A/92 V
100% @ 23A/89.3 V
60% @ 60 A/104V
100% @ 46 A/98.4V
|Recommended operating air pressure||55-75 psi|

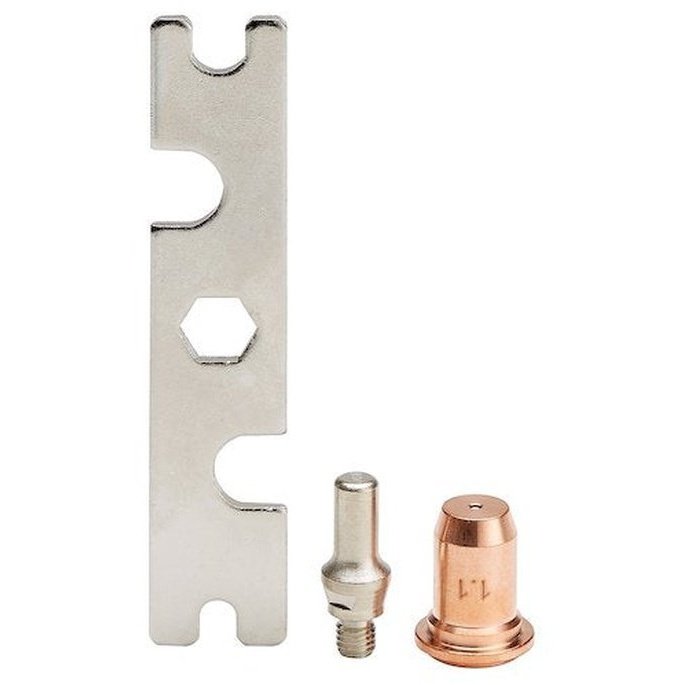

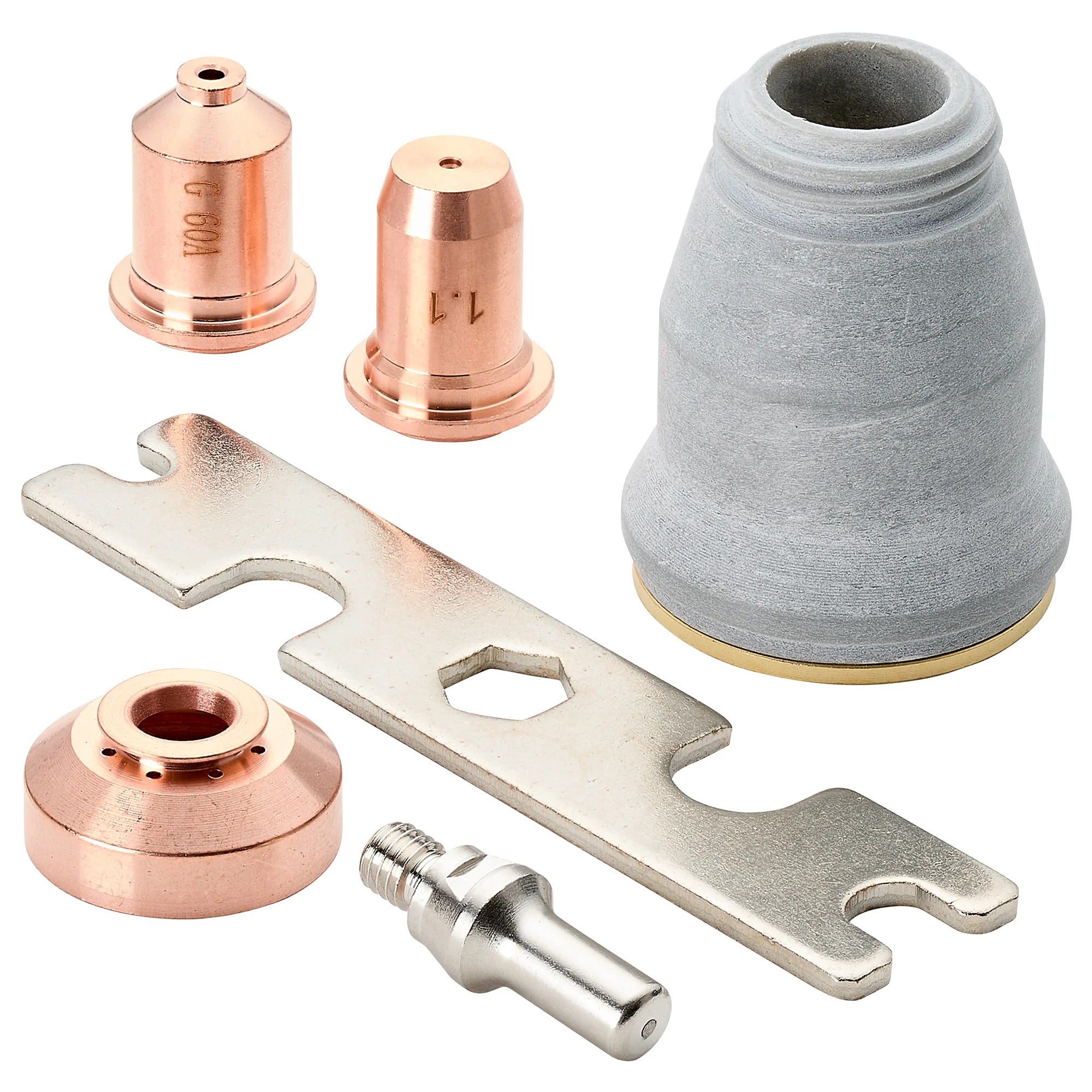

|Nozzle inside hole (mm)||1.1mm|
|Air post flow timer||
|Ingress protection rating (IP)||IP21|
|Weight||15.20 kg / 33.51 lbs|
|Overall dimensions||520 x 265 x 420 mm / 20.47 x 10.43 x 16.54 inches|

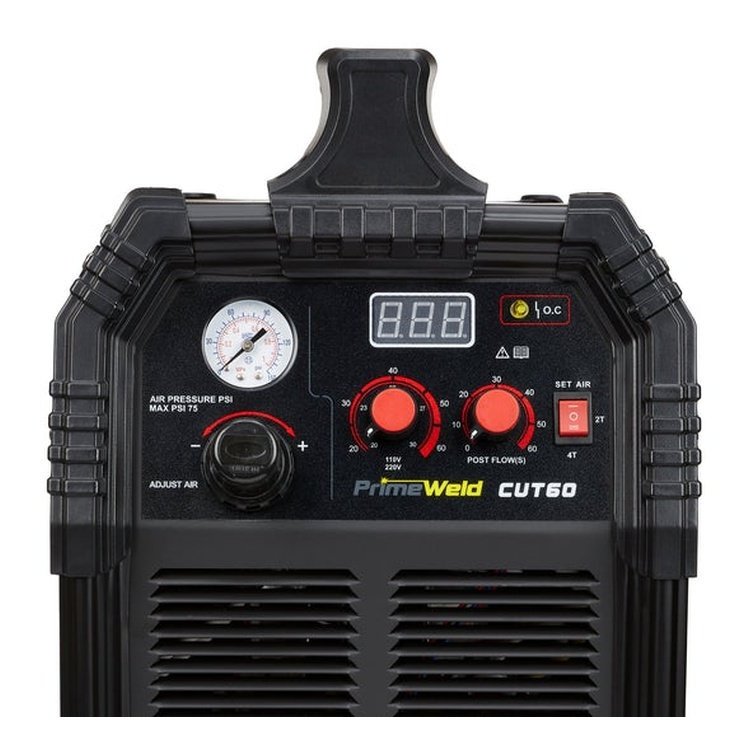

Turn the power switch to the “on” position. At this time, the indicator light will be ON showing the unit is powered on.
