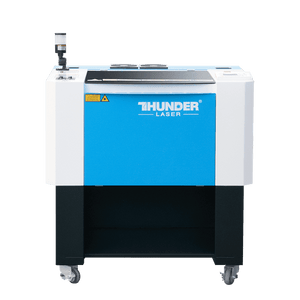

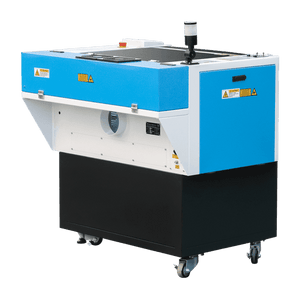

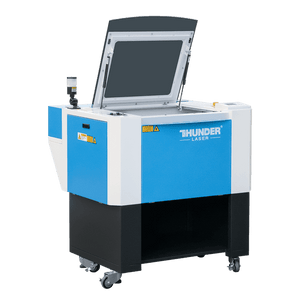

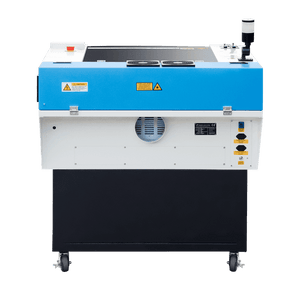

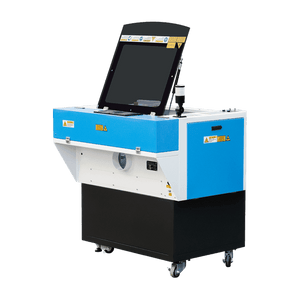

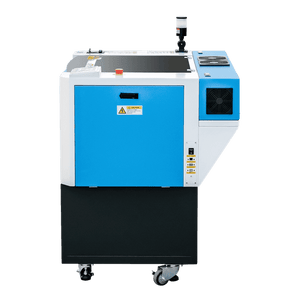

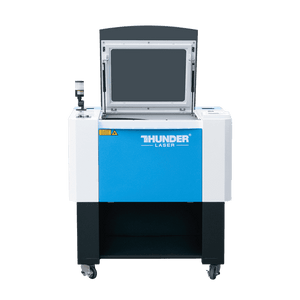

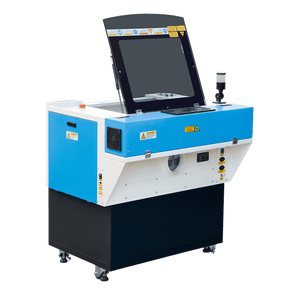

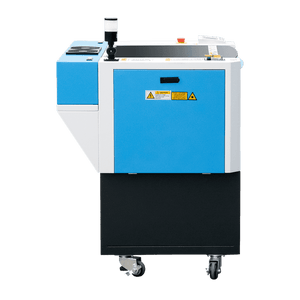

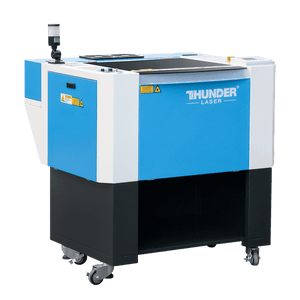

Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
Odin22 - Laser Engraver
  • SKU: Odin 22
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Odin22 - Laser Engraver

$12,870.00

The Odin series laser machine combines small size, compact, high quality engraving and cutting at a low cost. With 3G acceleration and 80 IPS (2000mm/sec) engraving speed, it provides a super fast laser engraving solution for industry. The RF tube allows fantastic beam signature and is air cooled, you don’t have to worry about a water chiller. The gantry payload is minimal and is super smooth.

Click here to download Brochure

Features
  • High Speed Motor

    High Speed Motor

    Japanese ORIENTAL motor systems on X and Y axes, with 80 IPS (2000mm/s) and 3G acceleration engraving speed.
    100% smoother guide Rail

    New: 100% smoother guide Rail

    Patent guide rail developed by Thunder Laser, less resistance and low noise.
    RF

    New: 1,000 DPI RF metal laser source

    With excellent quality Beam output and stable laser power, lifespan up to 10,000 hours.
    Upper & Lower Vent

    New: Upper & Lower Vent

    To timely remove the heat from material surface.
    Newly-designed focus lens and mirror holder

    Newly-designed focus lens and mirror holder

    Easier to clean and replace lens and mirrors, Lenses of different FL are swappable in the same mount.
    New Auto focus

    New Auto focus

    No limitation for materials or working area, more accurate.



What's Included



  • Air Assist
      Air Assist
    Exhaust
      Exhaust
    2 Head.jpg
      2″ Head
    Tool Kit
      Tool Kit
    Cleaning Kit
      Cleaning Kit
    Honeycomb / Knife Bed
      Honeycomb / Knife Bed
    Alarm Lamp
      Alarm Lamp
    Smart Board
      Smart Board
    Red Dot Pointer
      Red Dot Pointer
Specifications
Laser System Odin 22 Odin 32
Laser Tube Wattage 30 Watt 55 Watt (Coherent)
Working Area 559 x 381 mm (22″ x 15″) 813 x 508 mm (32″ x 20″)
Table Size 625 x 440 mm (24.6″ x 17.3″) 899 x 567 mm (35.4″ x 22.3″)
Max Part Size(W x L x H) 625 x 440 mm x 185mm(24.6″ x 17.3″ x 7.3″) 899 x 567 mm x 185mm(35.4″ x 22.3″ x 7.3″)
Dimensions(W x D x H) 1030x860x1090mm (40″ x 34″ x 43″) 1284x987x1090mm (51″ x 39″ x 43″)
Laser Type Radio Frequency Laser Tube
Cooling Air Cooled
Maximum Speed 2000MM/S
Maximum machining size at 1000 speed – lightweight laser head 529 x 381 mm(20.8″ x 15″) 783 x 508 mm(30.8″ x 20″)
Maximum machining size at 2000 speed – lightweight laser head 461 x 381 mm(18″ x 15″) 715 x 508 mm(28″ x 20″)
Speed and Power Control Computer or manually controlled speed and power from 0-100%.Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster,vector,and combined mode
Resolution(DPI) User controlled from 100 to 1000DPI(standard laser head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows, Mac, and Linux (Mac and Linux with LightBurn Software)
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed, etc…
Electrical Requirements Requirements110 to 240 volts,50 or 60 Hz,single phase
Z-Axis Height 185mm (7.3″) 185mm (7.3″)
Net Weight 125kgs (275lbs) 300kgs (661lbs)
Motion Control System High-Speed Stepper Motors
Speed and Power Control(engraving depth)

Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.

Operating Modes Optimized raster, vector, and combined mode
Ventilation System Integral exhaust fan. There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
Max. Speed 2000mm/s
Workpiece table Solid metal blades & Honeycomb table
Max. table load 20kg / 44lbs
