Large Diameter Gas Saver Kits
Large Diameter Gas Saver Kits
Large Diameter Gas Saver Kits
Large Diameter Gas Saver Kits
  • SKU: D2GS332LD
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Large Diameter Gas Saver Kits

$198.95
Shipping calculated at checkout.
  • Saves up to 40% of shielding gas consumption
  • Available in Glass Cup (Size 18) or Alumina Cup (Size 18)
  • Used on 2 Series (9 / 20 Style) & 3 Series (17 / 18 / 26 Style) TIG torches

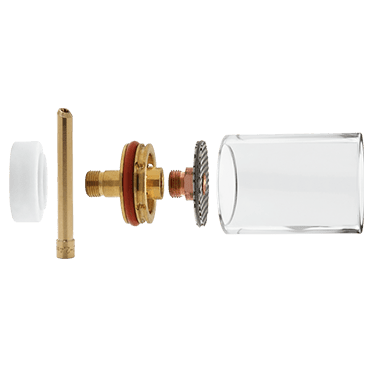

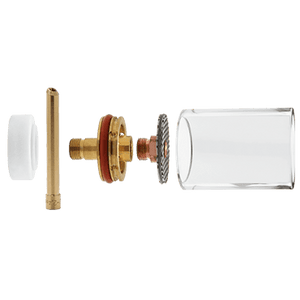

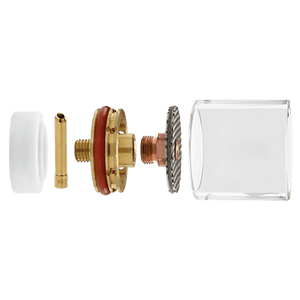

  • Kit Includes: Heatshield, Collet, Collet Body, Tungsten Adapter Screen, and Glass or Alumina Cup

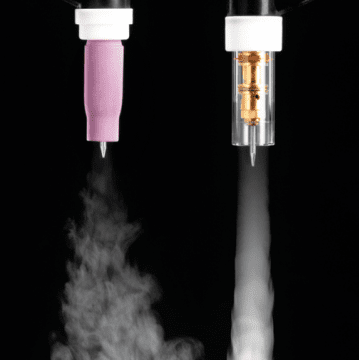

Gas Saver Kits provide better gas coverage than standard collet bodies. One of the first industry designs with a heat resistant clear glass cup, they can be used on a variety of applications and are very useful in maintaining clear visibility of the weld. Our large diameter kits work very well for exotic metals and alloys such as Titanium and Inconel by providing premium shielding gas coverage over your weld.



2 SERIES | LARGE DIAMETER | GAS SAVER KITS
Torches Tungsten Cup Type Order #
CK9,CK20
(2 SERIES)
1/16" (1.6mm) ALUMINA D2GS116LD-A
3/32" (2.4mm) ALUMINA D2GS332LD-A
1/8" (3.2mm)
ALUMINA D2GS418LD-A
1/16" (1.6mm) GLASS D2GS116LD
3/32" (2.4mm) GLASS D2GS332LD
1/8" (3.2mm) GLASS D2GS418LD
3 SERIES | LARGE DIAMETER | GAS SAVER KITS
Torches Tungsten Cup Type Order #
CK17,
CK18, CK26
(3 SERIES)
1/16" (1.6mm) ALUMINA D4GS116LD-A
3/32" (2.4mm) ALUMINA D4GS332LD-A
1/8" (3.2mm)
ALUMINA D4GS418LD-A
1/16" (1.6mm) GLASS D4GS116LD
3/32" (2.4mm) GLASS D4GS332LD
1/8" (3.2mm) GLASS D4GS418LD
Parts Chart
