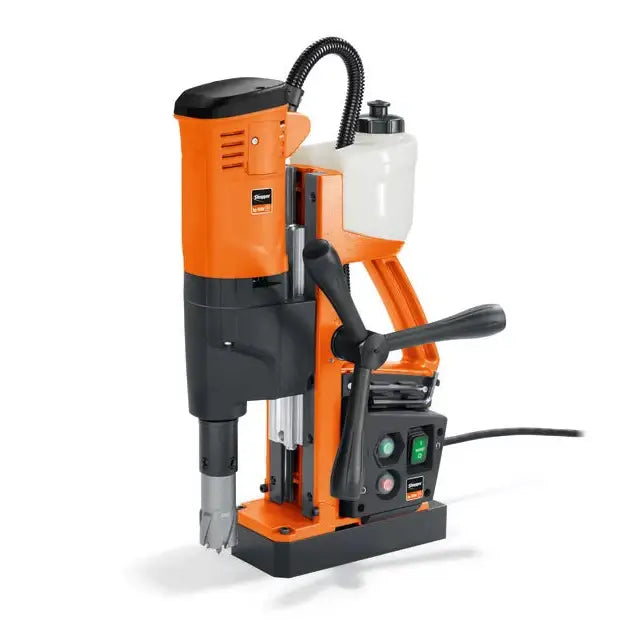

JME HOLEMAKER III Endurance Core Drill 1-3/8

JME HOLEMAKER III Endurance Core Drill 1-3/8" 120V N09

SKU: 72705961090
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

JME HOLEMAKER III Endurance Core Drill 1-3/8" 120V N09

$1,277.00

Shipping calculated at checkout.

Product Availability Ask about this product

Vendor: FEIN

The optimal drilling solution with high powered German motor designed for use with Carbide and HSS cutters for toughest jobs and applications.

Extemely wear resistant concept with durable newly designed polyurethane motorhousing for use in industry and manual trades.
Extemely lightweight drill yet powerful enough for heaviest drilling applications.
Cost effective drill for use with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results.
Optimum power-to-weight ratio.

Integrated coolant tank.
Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
Pivoting motor cable.
Higher RPM for optimal use with carbide cutters.
Hand feed wheel can be mounted either side.
Integrated hexagon socket holder.

Technical data

Power consumption	1,100 W
Power output	510 W
Full load speed	450 rpm
No load speed	590 rpm
Carbide cutter max. dia.	1-3/8 [35] in[mm]
HSS cutter max. dia.	1-3/8 [35] in[mm]
Cutter max. drilling depth	2 [50] in[mm]
Twist drill max. dia.	5/8 [16] in[mm]
Cutter holder	3/4" Weldon
Stroke	5-11/16 [145] in[mm]
Total stroke range	10-1/4 [260] in[mm]
Magnetic holding force	2810 [12,500] lbs[N]
Magnetic base dimensions	7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug	8.9 [2.7] ft[m]
Weight	25.79 [11.70] lbs[kg]

Includes

1 coolant tank
1 safety strap
2 pilot pins
1 chip guard
2 hexagonal socket keys, 5 and 6 mm
1 hexagonal socket key with T-grip, 5 mm
1 case

Product feature

Hand feed wheel can be mounted on either side
