JCM 200 AUTO Automatic Magnetic Core Drill 2" MT3 120V

SKU: 72704661120

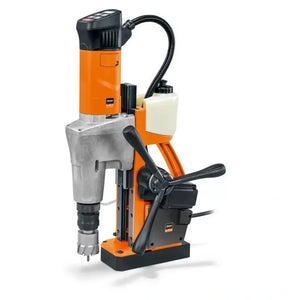

JCM 200 AUTO Automatic Magnetic Core Drill 2" MT3 120V

$4,258.00

Shipping calculated at checkout.

Product Availability Ask about this product

Vendor: FEIN

Light, smart, fully automatic 2-speed machine. Saves time and expense in the workshop and on the construction site.

Time and cost savings in large volume drilling due to digitally controlled drill feed.
Predictable work times on contract and serial work due to repeatable and consistent drilling times.
Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
High-power motor with stable speed.
Electronic speed control.

High magnetic holding force.
Easy to read convenient magnetic holding force display.
Integrated coolant tank.
Motion sensor.
Control pads in the field of view.
* optional using accessory.
** only in manual machine operation

Technical data

Power consumption	1,200 W		Sound pressure level LpA	82,1 dB
Power output	610 W		Measurement uncertainty of the measured value KpA	5 dB
Load speed: 1st gear	130 - 260 rpm		Sound power level LWA	93,1 dB
Load speed: 2nd gear	260 - 520 rpm		Measurement uncertainty of the measured value KWA	5 dB
Tool mount	MT 3		Peak sound value LpCpeak	96,2 dB
Carbide cutter max. dia.	2 [50] in[mm]		Measurement uncertainty of the measured value KpCpeak	5 dB
HSS cutter max. dia.	1-5/8 [40] in[mm]
Cutter max. drilling depth	2 [50] (3 [75] )* in[mm]
Twist drill max. dia.	3/4 [18] /7/8 [23] ** in[mm]
Tapping	M 16**
Max. countersinking dia.	2 [50] ** in[mm]
Reaming max. dia.	7/8 [23] ** in[mm]
Cutter holder	3/4" Weldon
Cutter change	tool-free
Stroke	5-11/16 [145] in[mm]
Total stroke range	12-3/8 [315] in[mm]
Magnetic holding force	2810 [12,500] lbs[N]
Magnetic base dimensions	7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug	13.1 [4] ft[m]
Weight	36.16 [16.40] lbs[kg]

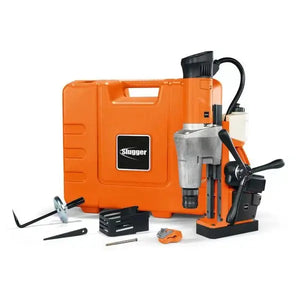

Includes

1 coolant tank
1 safety strap
1 chip hook
1 pilot pin 4 1/8 in (105 mm)
1 drift
1 chip guard
1 case

Product feature

Magnet monitor system
Magnet holding force display
Automatic drill feed
Forward/reverse operation
Electronic speed setting
Memory function
Speed-controlled tacho electronics
Tilt sensor
