GI 150 2V Belt grinder 220/3/60 6 in Single speed N09
  • SKU: 79020439233
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

GI 150 2V Belt grinder 220/3/60 6 in Single speed N09

$6,698.95
Shipping calculated at checkout.

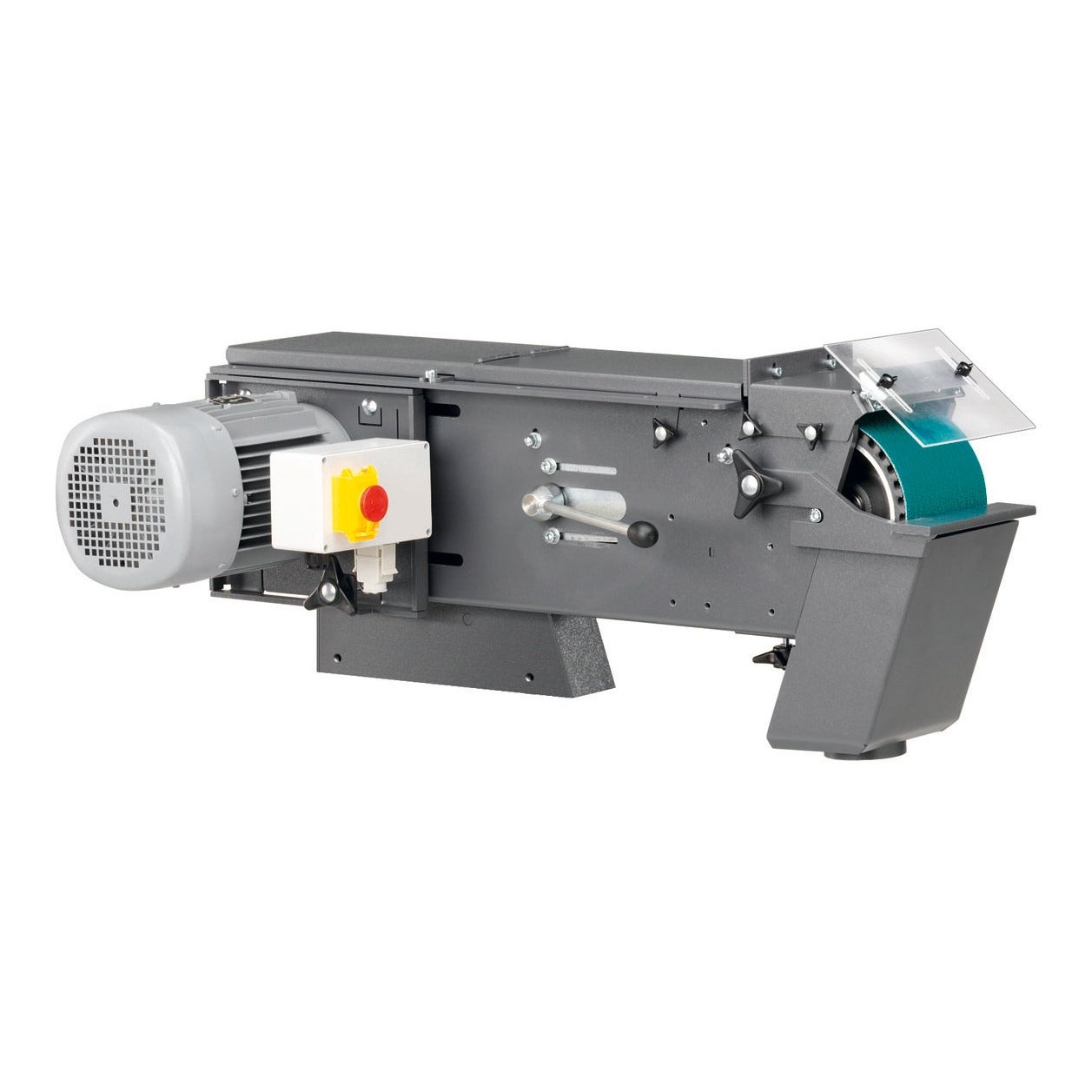

Belt grinder (base unit), 150 mm

High performance belt grinder, modular expansion capability, for industrial and production applications


  • Expandable by means of add-on modules
  • Extremely durable three-phase motor allows grinding with constant rpm
  • Speed of 3,450 rpm ideal for metal machining
  • Detachable swarf collector
  • Connection option for external collector
  • Drive disc with polyurethane coating
  • Working height independently adjustable
  • Patented belt tensioning system
  • Robust three-phase motor
  • Low vibration level

INCLUDES

  • 1 CEE plug (16A)
  • 1 Grinding belt 6 x 79 in [150 x 2,000 mm] (36 grit R)
Technical Data
Power consumption 4 kW
Current/Voltage 3 x 230/220V 50/60Hz
No load speed 3,450 rpm
Belt dimension 6 [150] x 78-3/4 [2,000] in[mm]
Weight 180.78 [82] lbs[kg]
