FS 41 ES Combination Planer / Jointer

FS 41 ES

Regular price $19,200.00

FS 41 ES Combination Planer / Jointer
FS 41 ES Combination Planer / Jointer
FS 41 ES Combination Planer / Jointer
FS 41 ES Combination Planer / Jointer
FS 41 ES Combination Planer / Jointer

Single Phase 4.8HP 220V Self Braking Motor

  • Surface planer tables with simultaneous opening
  • Dedicated surface planer fence (dimensions 1200 x 150 mm)
  • Thicknessing table lifting by means of 4 columns dust protected
  • Helicoidal thicknesser infeed roller
  • Sandblasted steel thicknesser outfeed roller
  • Pre-setting for mortiser
  • Mechanical readout (1/10 mm) for thicknessing table height

Wheels for Machine Movement

Additional Fence for Processing Thin Workpieces



Rubber Coated Outfeed Roller

10 Spare Inserts & Xylent Maintenance Kit

120mm Exhaust Hood

3-240mm Thicknesser Capacity

6-12m/min Feed Rate

410x775mm Table Dimensions for Thicknesser

2200mm Surfacer Bed Length

5mm Maximum Stock Removal

410mm Working Width

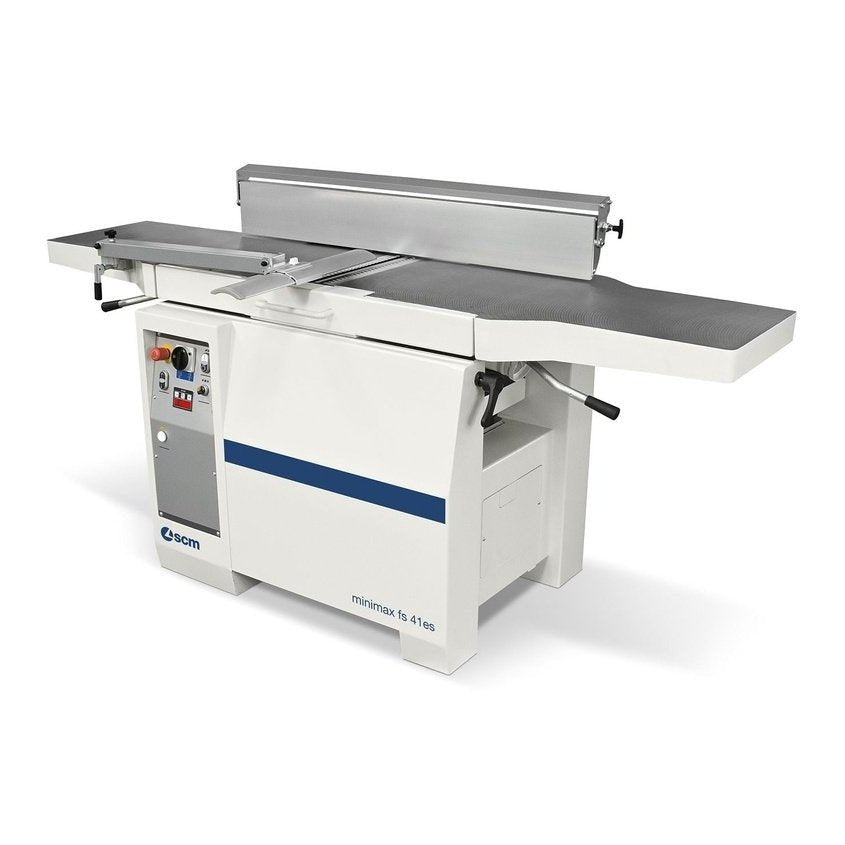

Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.

Discover the "Xylent" cutterhead, available for this machine.

Perfect finish

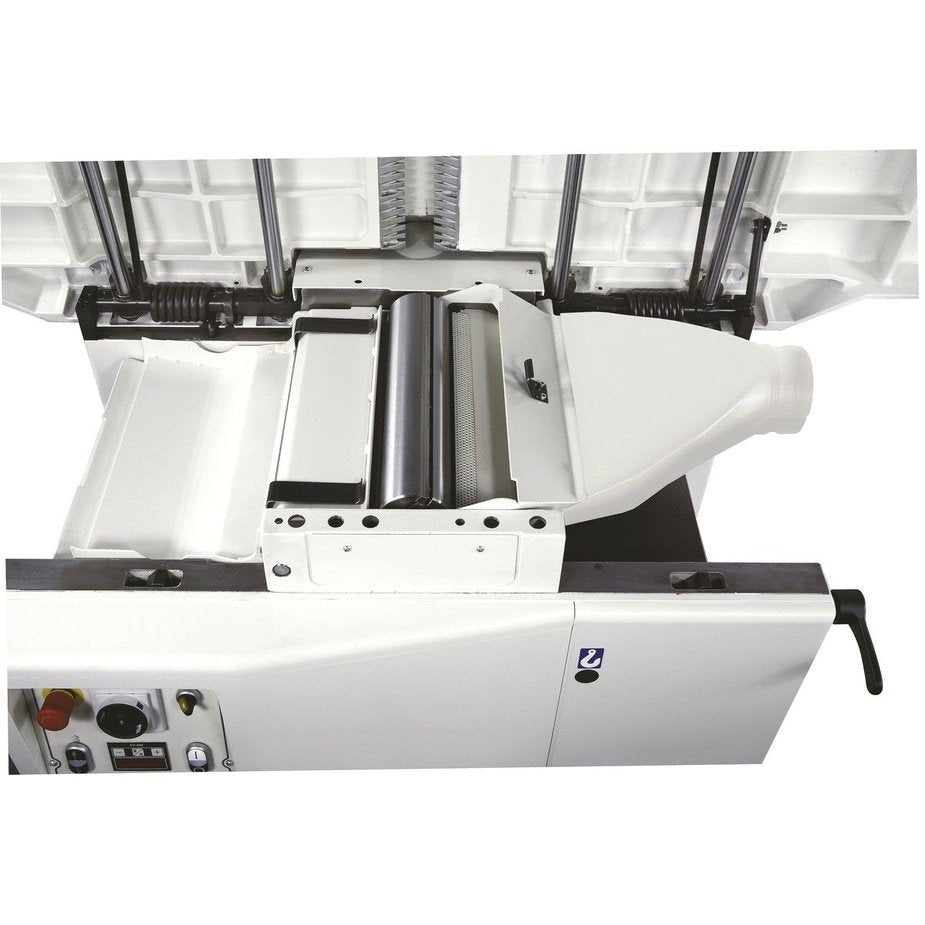

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block  and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability over time

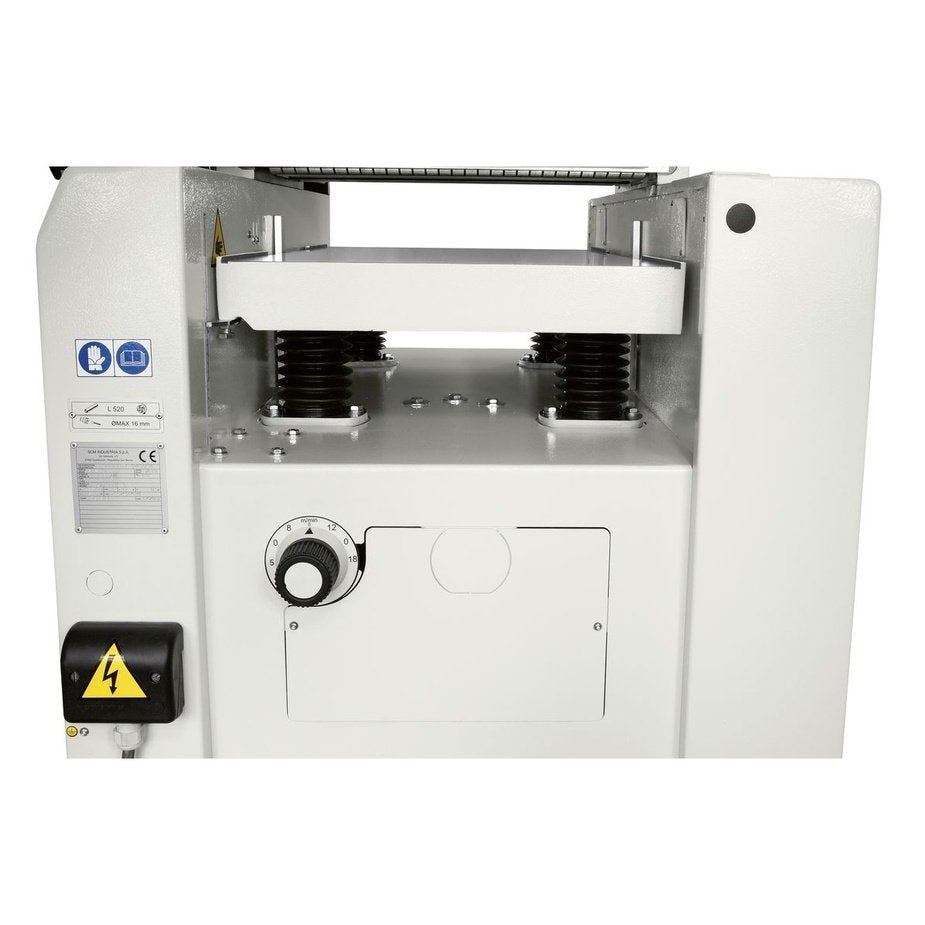

For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.

High rigidity

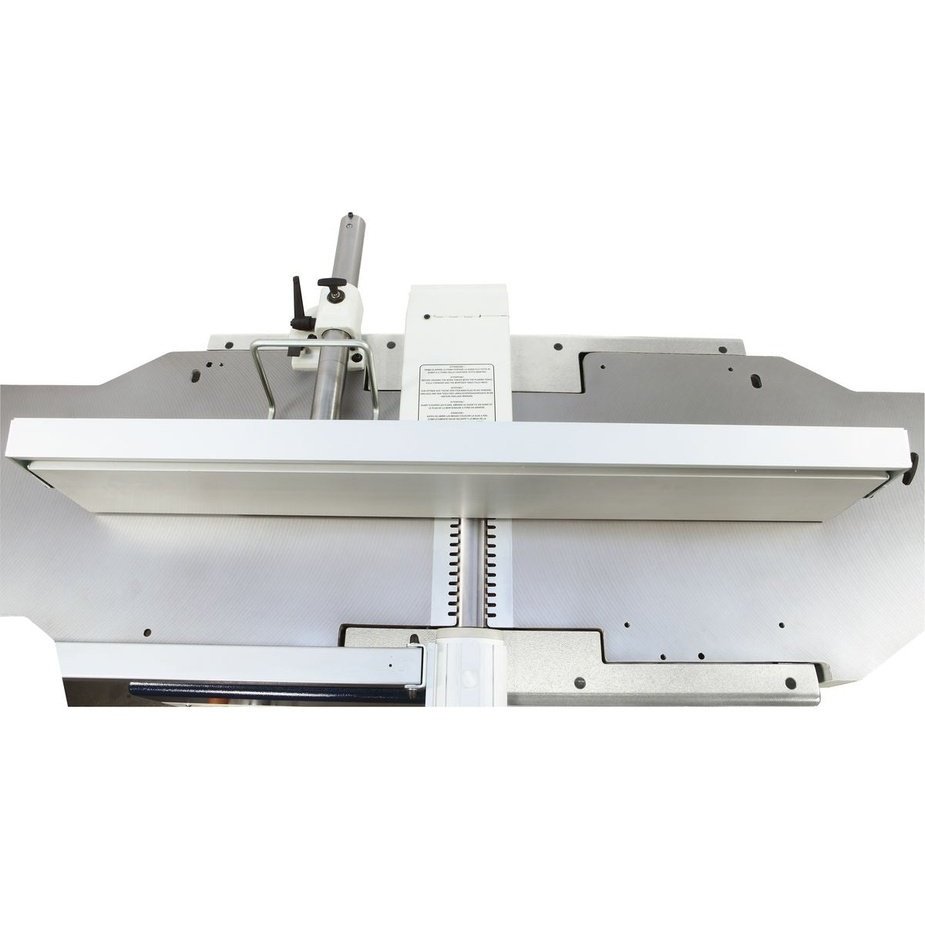

High rigid fence with a smooth movement thanks to the central locking on round bar.

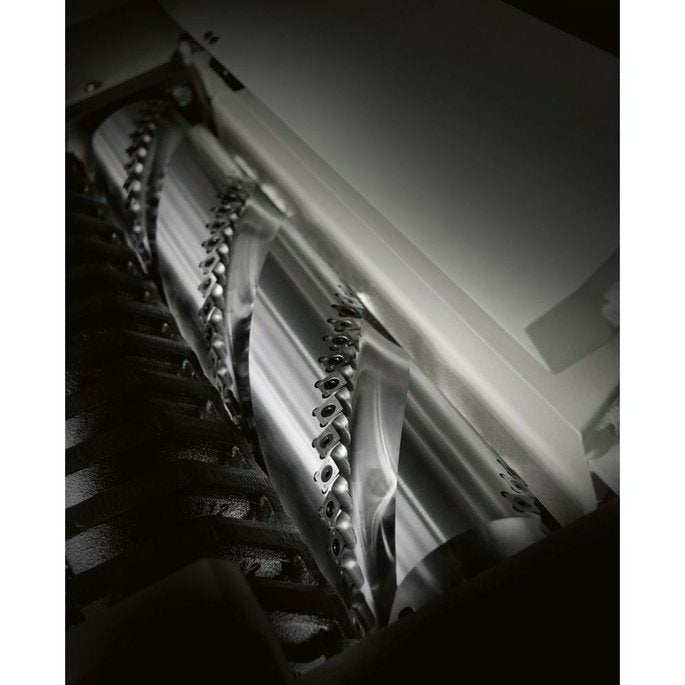

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
