Formula S 540P Bandsaw
Formula S 540P Bandsaw
Formula S 540P Bandsaw
Formula S 540P Bandsaw
Sold Out
  • SKU: S540 P
  • Availability: Out of stock

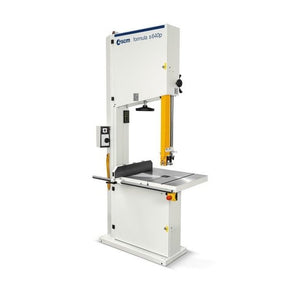

Formula S 540P Bandsaw

Shipping calculated at checkout.


Single Phase 4.8HP 220V

20" Resaw Capacity

Wheels for Machine Movement

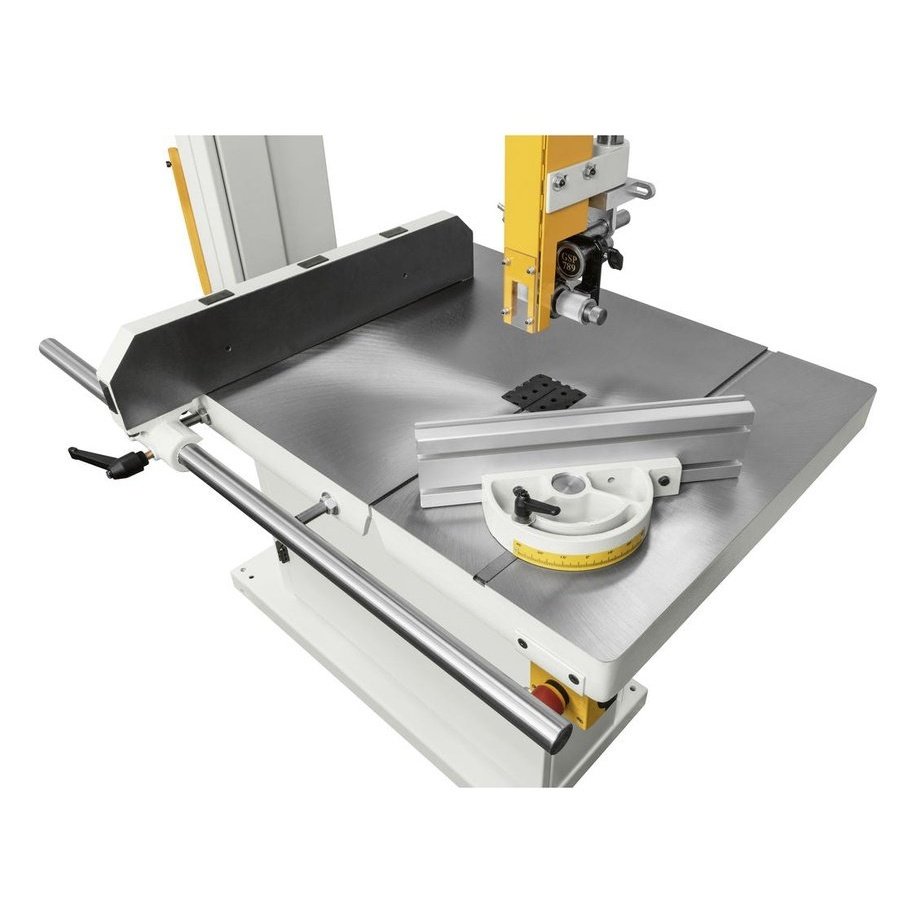

- cast-iron squaring fence
- grooved table 19,1 x 6,4 mm
- micro-switches on the doors and foot brake

Standard equipment:

  • Use and maintenance manuals available only in the following languages:
    Italian, English, French, German, Spanish, Dutch,  Czech, Portuguese
  • Rack and pinion lifting system of the guide unit
  • Saw-blade tensioning indicator
  • Cast-iron worktable

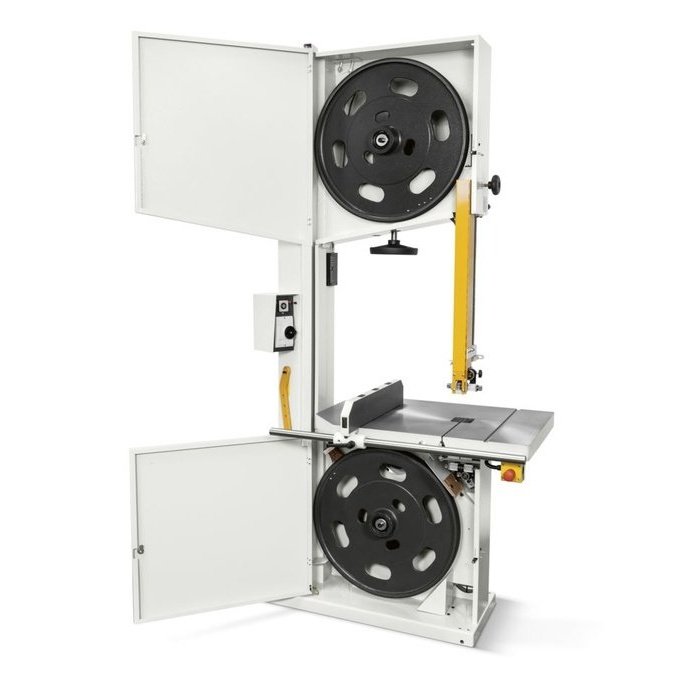

  • Disc-type cast-iron wheels running on sealed for life ball bearings
  • Footbrake  (with protections, USA and CANADA versions)
  • Overload motor protection
  • Emergency pushbutton (CE and USA/Canada version)

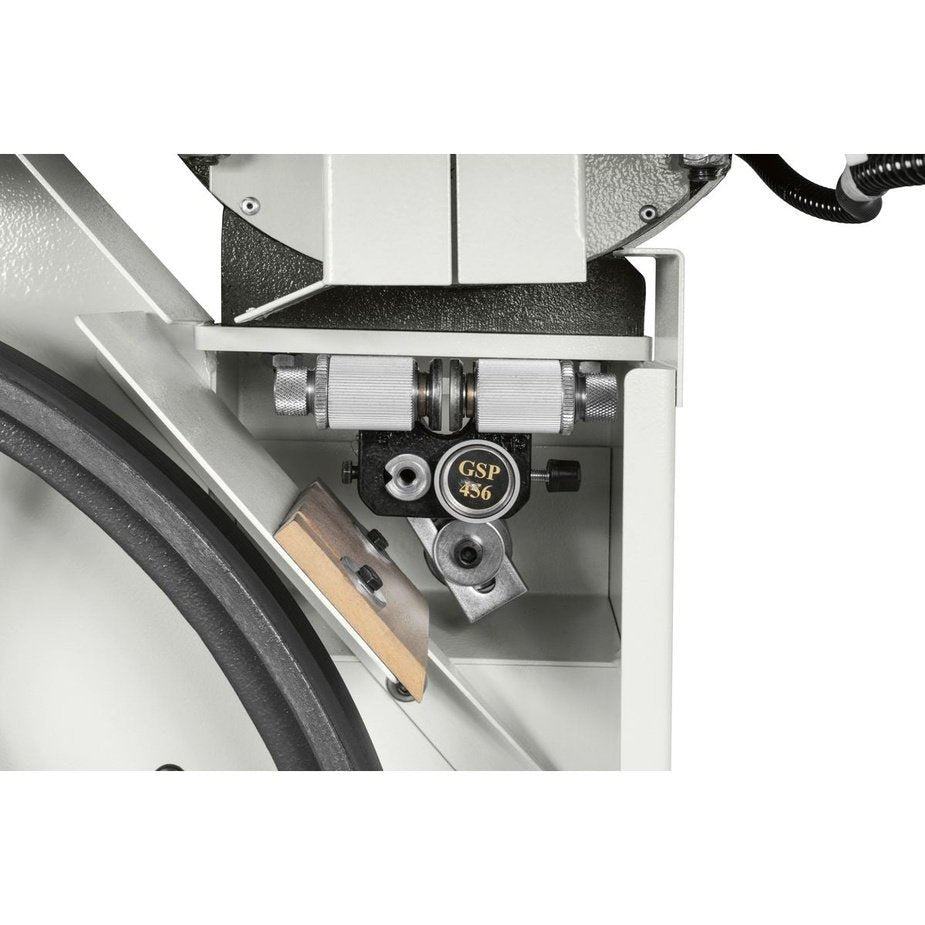

  • Bottom blade guide with ball bearings (CE, USA, CANADA versions)
  • Top blade guide with ball bearings
  • Cleaning brush on bottom wheel
  • Micro-switches on the doors (standard for CE, USA, Canada version)
  • Lapped worktable
  • Exhaust outlet
  • wood blocks + nylon
  • 2 Dust Extraction Ports 120mm
  • 6-35mm Bandsaw Blade Width
  • 0-45 Degree Table Tilting
  • 520mm Maximum Cutting Width
  • 520 x 720mm Worktable Dimensions

Massive, high-precision, professional band saws for serious woodworkers and production shops.

The S 540P is the big brother of the S440p. For those looking for single-phase power, but with a larger throat and even more resaw capacity, this is the machine for you. With all of the features of its smaller brother, this bandsaw will resaw up to 20” of material. Want to make your own veneer?  Bring it on!
