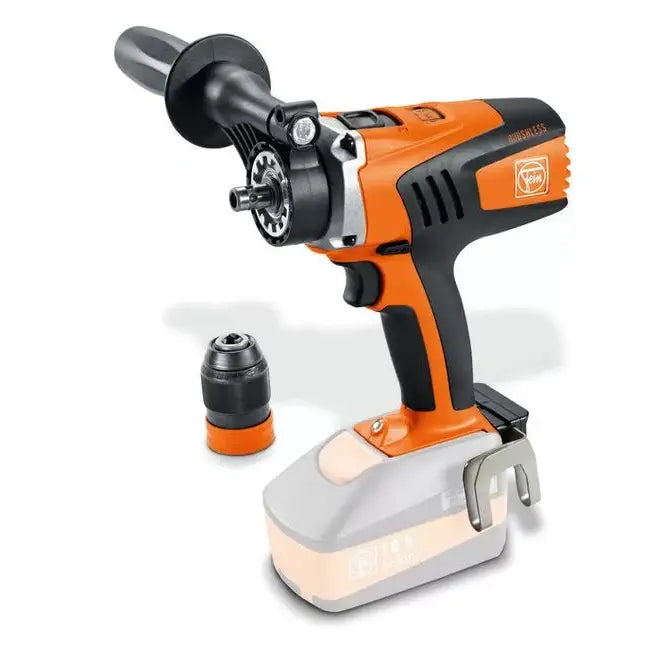

ASCM 18QM Select Cordless 18V Drill-Driver 4-Speed
ASCM 18QM Select Cordless 18V Drill-Driver 4-Speed
ASCM 18QM Select Cordless 18V Drill-Driver 4-Speed
  • SKU: 71161164090

ASCM 18QM Select Cordless 18V Drill-Driver 4-Speed


4-speed cordless drill/driver with brushless motor and QuickIN MAX interface. No compromise on performance for drilling and tapping up to 12 mm and drilling with carbide hole saws.

  • Brushless FEIN PowerDrive motor, fully encapsulated and dust-protected with 30% higher efficiency and long service life.
  • 4-speed solid metal gearbox. Optimum cutting speeds for drilling in metal and self-drilling screwdriving.
  • QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Quick change between applications.
  • High torques up to 90 Nm.
  • Including QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
  • In speed 4, optimum speeds (3850 rpm) for small diameters.
  • In speed 3, optimum speeds (1950 rpm) for 8 mm diameters.
  • Speed 1 for powerful thread cutting.
  • Electronic torque setting.
  • Fixes 10 x 400 mm screws without pre-drilling.
  • 2,500 screw connections (5x40 mm in wood) with one battery charge (6 Ah).
  • One charger for all FEIN Li-ion batteries of all voltage classes.
  • The battery charge can be read off the battery.
  • FEIN SafetyCell technology. Protects the battery and tool from overload, overheating and total discharge.
  • Extensive user protection features include restart protection, electronic overload protection and brake.


Battery Voltage 18 V Sound Pressure level LpA
Uncertainty of measured value KpA
73 dB
3 dB
Battery Compatibility Li-ion / HighPower Li-ion Sound power level LWA
Uncertainty of measured value KWA
84 dB
3 dB
Battery Interface 18 V Sound peak value LpCpeak
Uncertainty of measured value KpCpeak
86 dB
3 dB
Motor brushless Vibration value 1 ahv 3-way αh,D 1,5 m/s²
1,5 m/s
Gearbox 4-speed
Accessory interface QuickIN MAX
Speed, no load 400 / 800 / 1,950 / 3850 rpm
Max. torque (hard/soft) 90 / 45 NM
Torque levels 15 + 1
Drill chuck clamping width 1.5 - 13 mm
Fastening 10 x 400 mm
Capacity in steel Ø 25 mm
Capacity in wood Ø 50 mm
Tapping M 12
Weight without storage battery 1.50 kg


  • 1 QuickIN drill chuck (120 Nm)
  • 1 belt clip
  • 1 magnetic bit storage
  • 1 handle
  • 1 plastic carrying case
