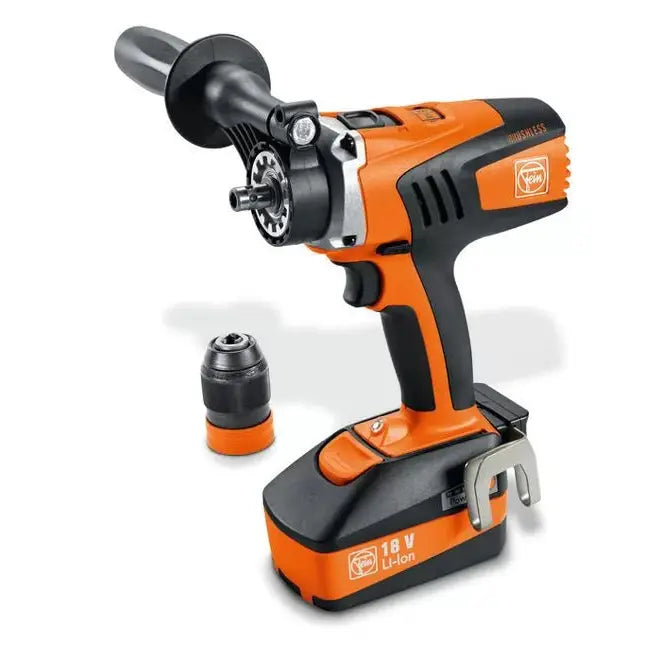

ASCM 18 QM 4-speed Cordless Drill/Driver
ASCM 18 QM 4-speed Cordless Drill/Driver
ASCM 18 QM 4-speed Cordless Drill/Driver
ASCM 18 QM 4-speed Cordless Drill/Driver
  • SKU: 71161161090

ASCM 18 QM 4-speed Cordless Drill/Driver

$960.00
Shipping calculated at checkout.
Product Availability Ask about this product

4-Speed cordless drill/driver with brushless motor and QuickIN MAX interface. Uncompromising power for drilling and tapping up to 1/2 [12] in[mm] and drilling with carbide hole saws.

Product feature

  • Removable drill chuck
  • Electronic torque-controlled shut-off



  • Fully encapsulated and dustproof brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
  • 4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.
  • QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Fast change between applications.
  • High torques up to 797 [90] in/lbs[Nm].
  • Includes QuickIN solid metal drill chuck (1,062 [120] in/lbs[Nm]) with carbide jaws and high clamping force.
  • Optimal speed (3,850 rpm) in 4th gear for small diameters.
  • Optimal speed (1,950 rpm) in 3rd gear for 3/8 [8] in[mm] dia.
  • Cut threads efficiently in 1st gear.
  • Electronic torque setting.
  • Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
  • 2,500 screw applications (3/16 x 1-9/16 [5 x 40] in[mm] in wood) with one battery charge (6 Ah).
  • One charger for all voltage classes of FEIN Li-ion batteries.
  • The battery capacity can be read directly on the battery.
  • FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.



Technical data
Battery voltage 18 V Vibration and Sound Emission Values
Battery capacity 6 Ah Sound pressure level LpA 73 dB
Battery compatibility Li-ion / HighPower Li-ions Measurement uncertainty of
the measured value KpA		 3 dB
Battery interface 18 V Sound power level LWA 84 dB
Motor brushless Measurement uncertainty of
the measured value KWA		 3 dB
Gearbox 4-speed Peak sound value LpCpeak 86 dB
Accessory interface QuickIN MAX Measurement uncertainty of
the measured value KpCpeak		 3 dB
No load speed 400 / 800 / 1,950 / 3,850 rpm Vibration value 1 αhv 3-way αh,D 1,5 m/s²
Max. torque (hard/soft) 797 [90] / 398 [45] in/lbs[Nm] Measurement uncertainty of
the measured value Kα		 1,5 m/s²
Torque steps 15 + 1
Chuck capacity 1/16 [1.5] - 1/2 [13] in[mm]
Fastening 3/8 [10] x 15-3/4 [400] in[mm]
Capacity in steel Ø 31/32 [25] in[mm]
Capacity in wood Ø 1-31/32 [50] in[mm]
Tapping M 12
Weight incl. battery 4.85 [2.20] lbs[kg]
Weight without battery 3.31 [1.50] lbs[kg]

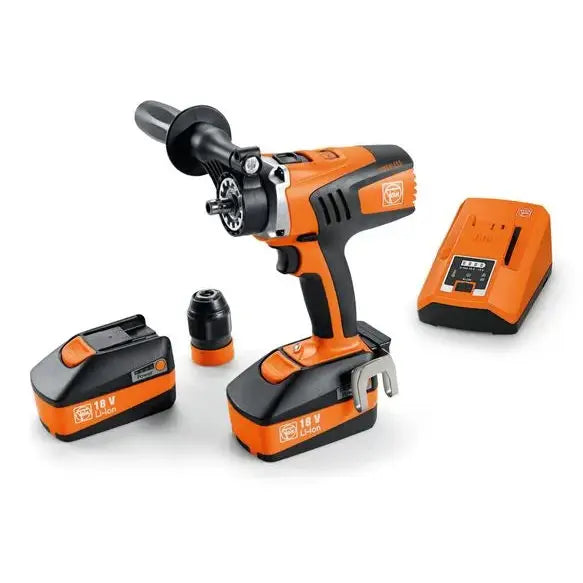

Includes
  • 2 rechargeable batteries (Li-ion)
  • 1 rapid charger ALG 80
  • 1 QuickIN drill chuck (1,062 [120] in/lbs[Nm])
  • 1 belt clip
  • 1 bit garage
  • 1 handle
  • 1 tool case
