AJMU 137 PMQW Set 18V Cordless Universal Core Drill
AJMU 137 PMQW Set 18V Cordless Universal Core Drill
AJMU 137 PMQW Set 18V Cordless Universal Core Drill
AJMU 137 PMQW Set 18V Cordless Universal Core Drill
AJMU 137 PMQW Set 18V Cordless Universal Core Drill
AJMU 137 PMQW Set 18V Cordless Universal Core Drill
  • SKU: 71700261090

AJMU 137 PMQW Set 18V Cordless Universal Core Drill

$3,706.95
Shipping calculated at checkout.
Product Availability Ask about this product

Small, long-stroke, 1-speed universal cordless magnetic base drill with forward / reverse rotation, MT2 tool mounting, permanent magnet and maximum functionality for mobile work on the construction site.

Details
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Small and lightweight tool for persistently high long-term work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and FEIN HighPower battery with high-current-capable cells.
  • Flexibility in all mobile drilling operations, such as mag base drilling, spiral drilling, tapping, sinking and reaming.
  • FEIN HighPower Li-ion battery. Continuously high current output with 75% higher amperage than Li-ion batteries for high cutting speed.
  • Simple and error-proof control concept in the operator's field of view.
  • Easy to read convenient magnetic holding force display.
  • Motion sensor.
  • Reversible.
  • Electronic speed control.
  • Extra long stroke.
  • MT2 tool mounting.
  • Extra narrow permanent magnet with magnetic bias.
  • "Memory function" speed storage.
  • The battery capacity can be read directly on the battery.
  • FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.
  • * optional using accessory.
  • ** Highest performance with FEIN HighPower Li-ion battery.

Technical data
Battery voltage 18 V Sound Pressure level LpA
Uncertainty of measured value KpA		 82.4 dB
3dB
Battery capacity 5.2 Ah Sound power level LWA
Uncertainty of measured value KWA		 93.4 dB
3 dB
Battery compatibility Li-ion / HighPower Li-ions*** Sound peak value LpCpeak
Uncertainty of measured value KpCpeak		 97.1 dB
3 dB
Battery Interface 18 V Vibration value 1 αhv 3-way
Measurement uncertainty of the measured value Ka		 αh,D 0,6 m/s²
1,5 m/s²
Motor Brushless
Full load speed 130-520 rpm
Tool mount MT 2
Carbide cutter max. dia. 1-3/8(35) in(mm)
HSS cutter max. dia. 1-3/8(35) in(mm)
Cutter max. drilling depth 2(50) [3(75)]* in(mm)
Twist drill max. dia. 3/4(18) in(mm)
Tapping M 14
Max. countersink dia. 1-1/4(31) in(mm)
reaming max. dia. 3/4(18) in(mm)
Cutter holder 3/4" Weldon
Cutter change tool-free
Stroke 5-5/16(135) in(mm)
Total stroke range 10-1/4(260) in(mm)
Magnetic holding force 2023(9000) lbs(N)
Magnetic base dimensions 7-11/16(195) x 2-3/4(70) in(mm)
Weight incl. battery 28.22(12.80) lbs(kg)
Weight without battery 26.68(12.10) lbs(kg)

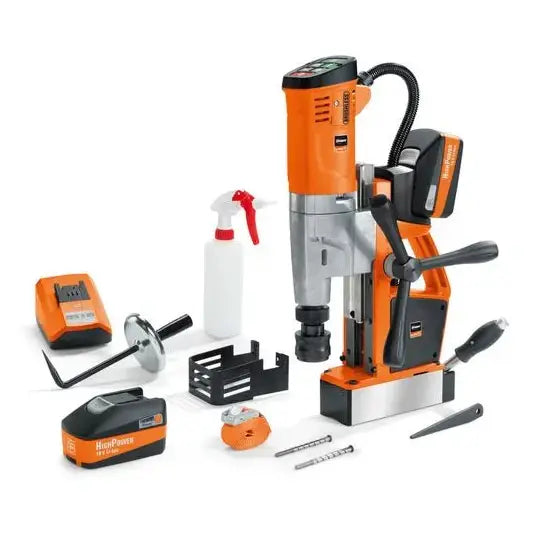

Includes
  • 2 battery packs (HighPower Li-ions)
  • 1 rapid charger ALG 80
  • 1 coolant pump
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin
  • 1 chip guard
  • 1 drift
  • 1 case
Product feature
  • Magnet holding force display
  • Forward/reverse operation
  • Electronic speed setting
  • Memory function
  • Speed-controlled tacho electronics
  • Tilt sensor
