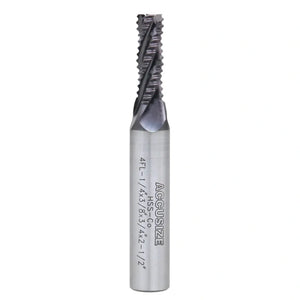

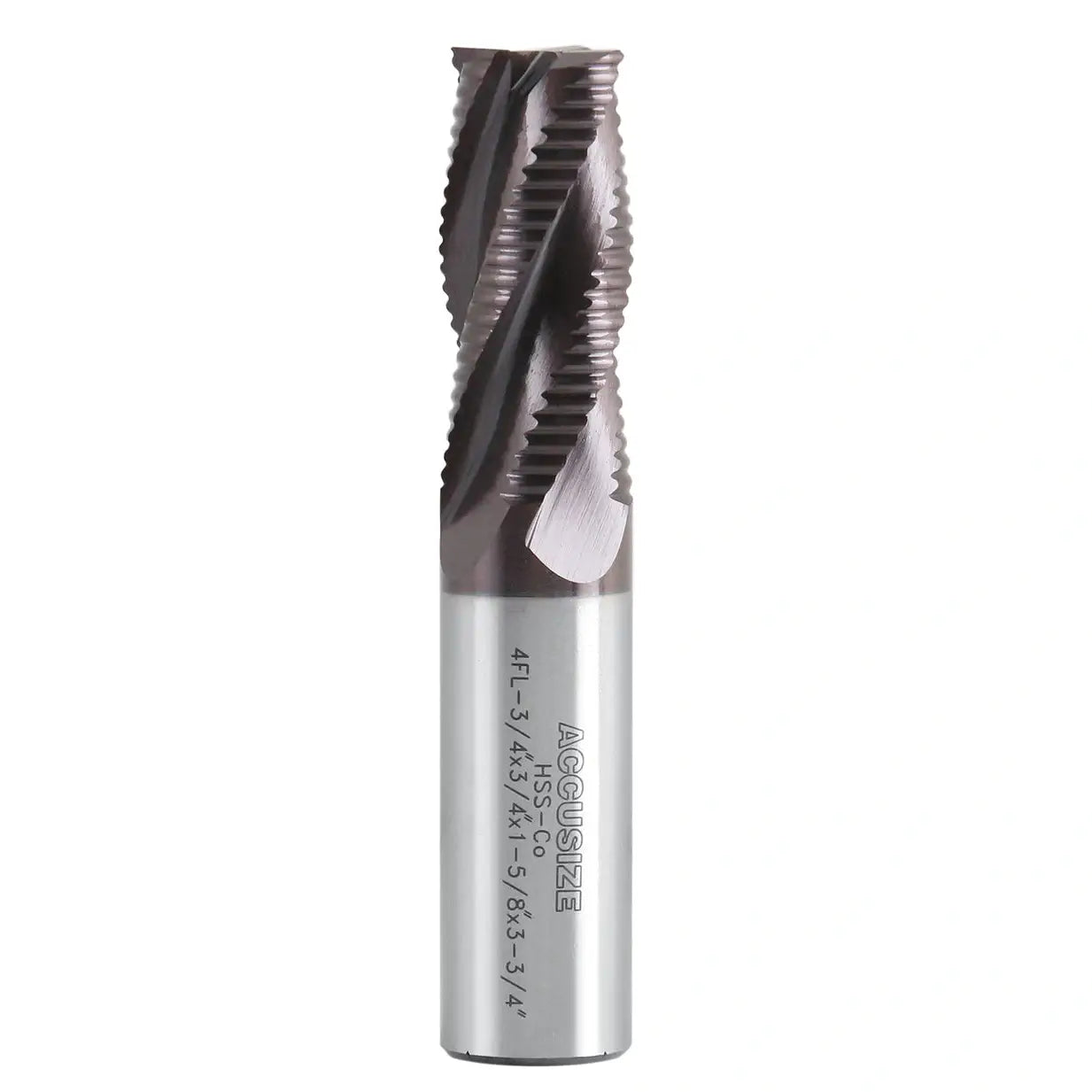

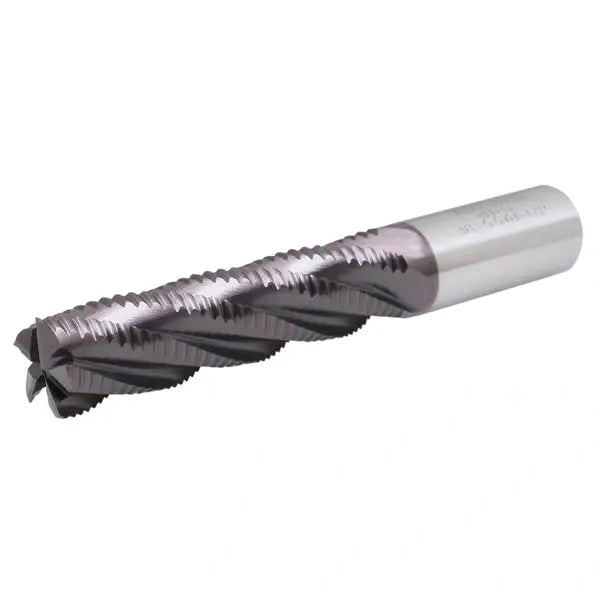

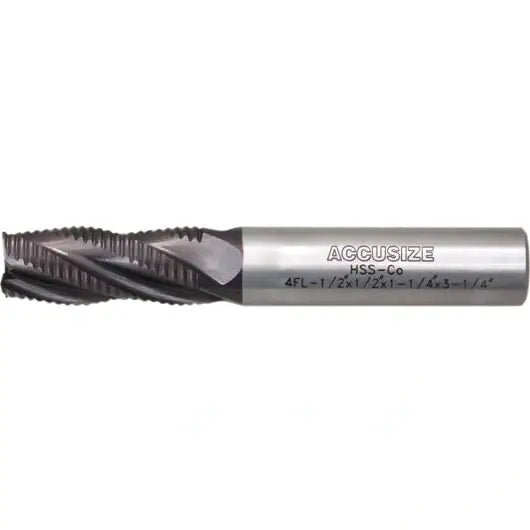

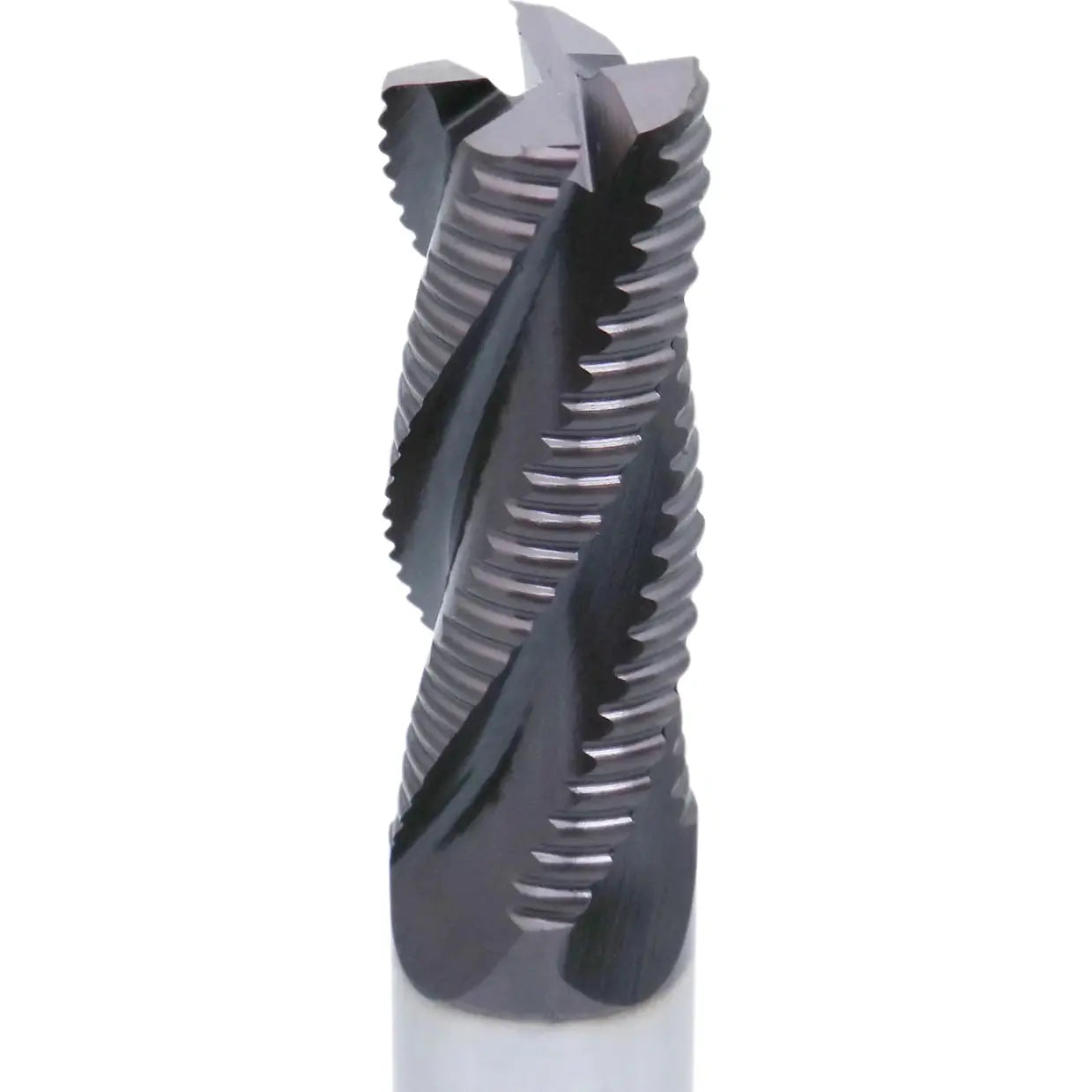

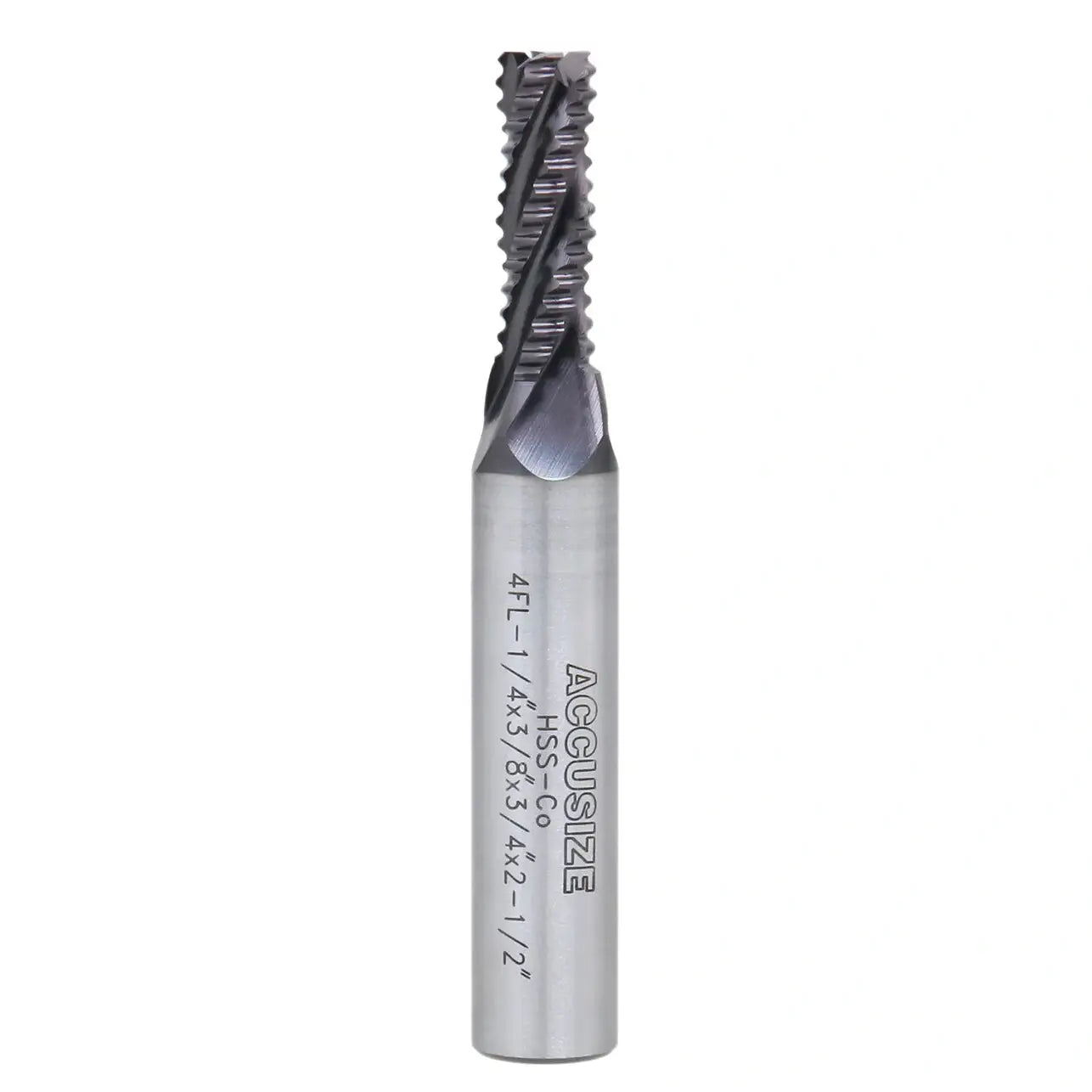

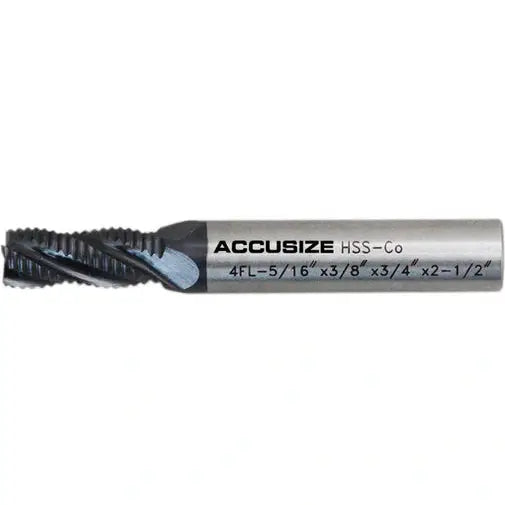

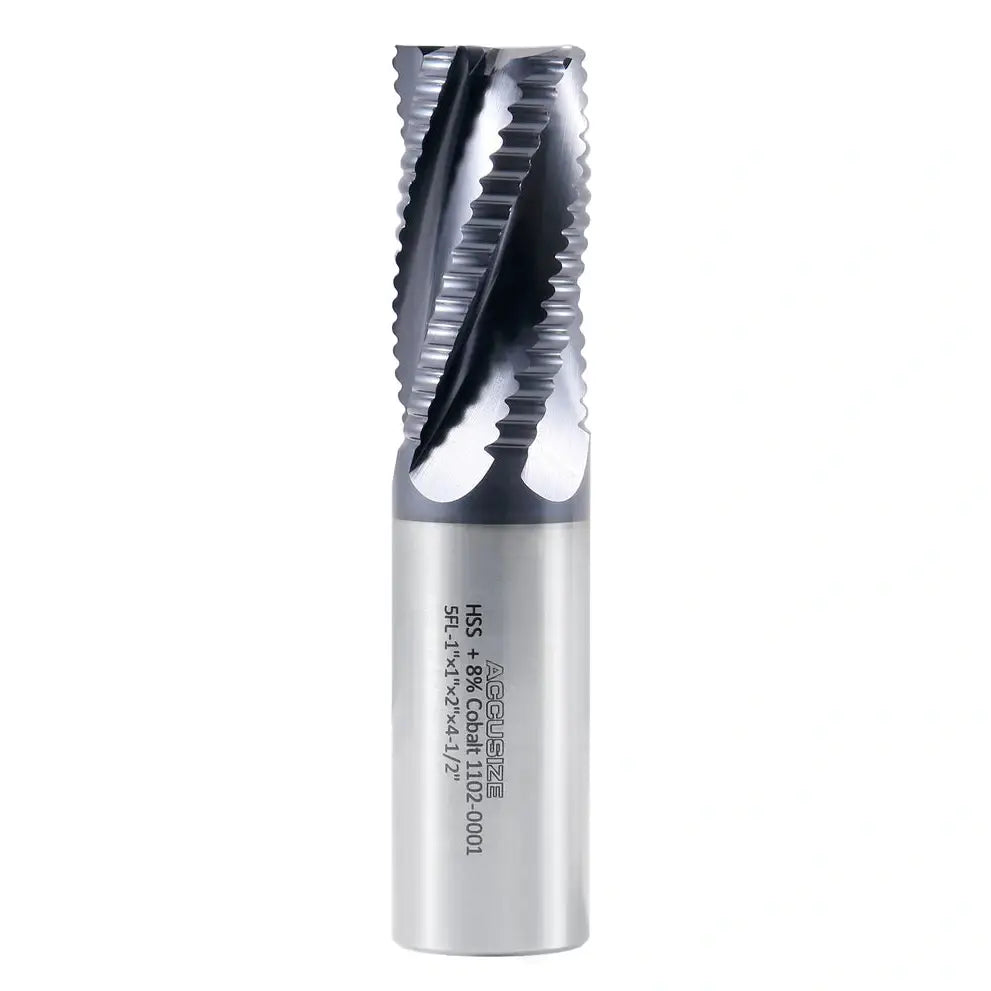

Accusize - Standard Tooth, TiAlN Coated, M42-8% Cobalt Roughing End Mills
TIALN COATED M42-8% COBALT ROUGHING END MILLS, STANDARD TOOTH
- TiAlN Coated
- Single-end
- Center cutting
- M42-8% Premium cobalt
- Flutes ground by a world-class IS-9002 Factory, CNC Qualified
| Item # | Dia. | Shk. Dia. | Flt. Length | Oal. | Fl |
|---|---|---|---|---|---|
| 1102-0014 | 1/4" | 3/8" | 3/4" | 2-1/2" | 4 |
| 1102-0516 | 5/16" | 3/8" | 3/4" | 2-1/2" | 4 |

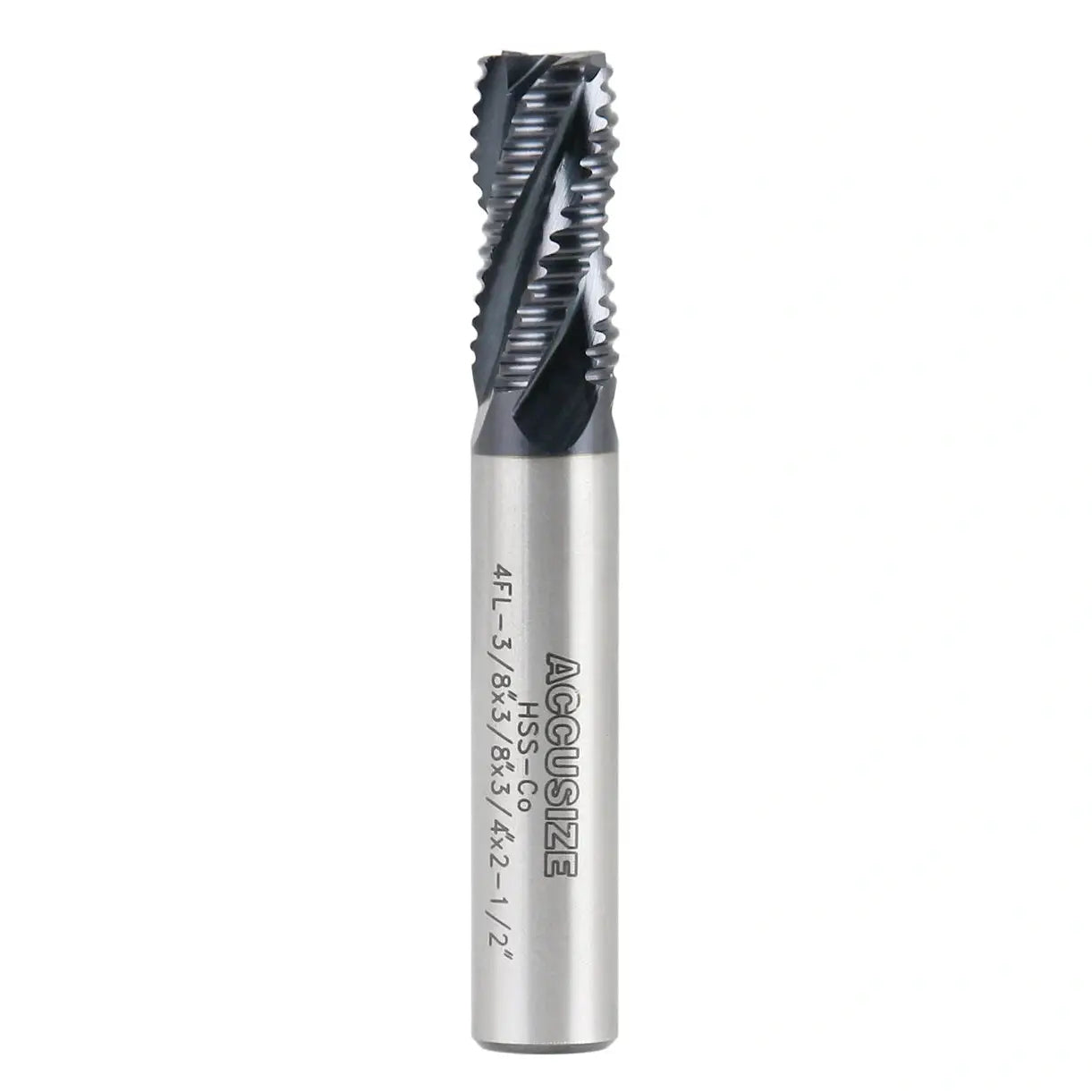

| 1102-0038 | 3/8" | 3/8" | 3/4" | 2-1/2" | 4 |
| 1102-0012 | 1/2" | 1/2" | 1-1/4" | 3-1/4" | 4 |

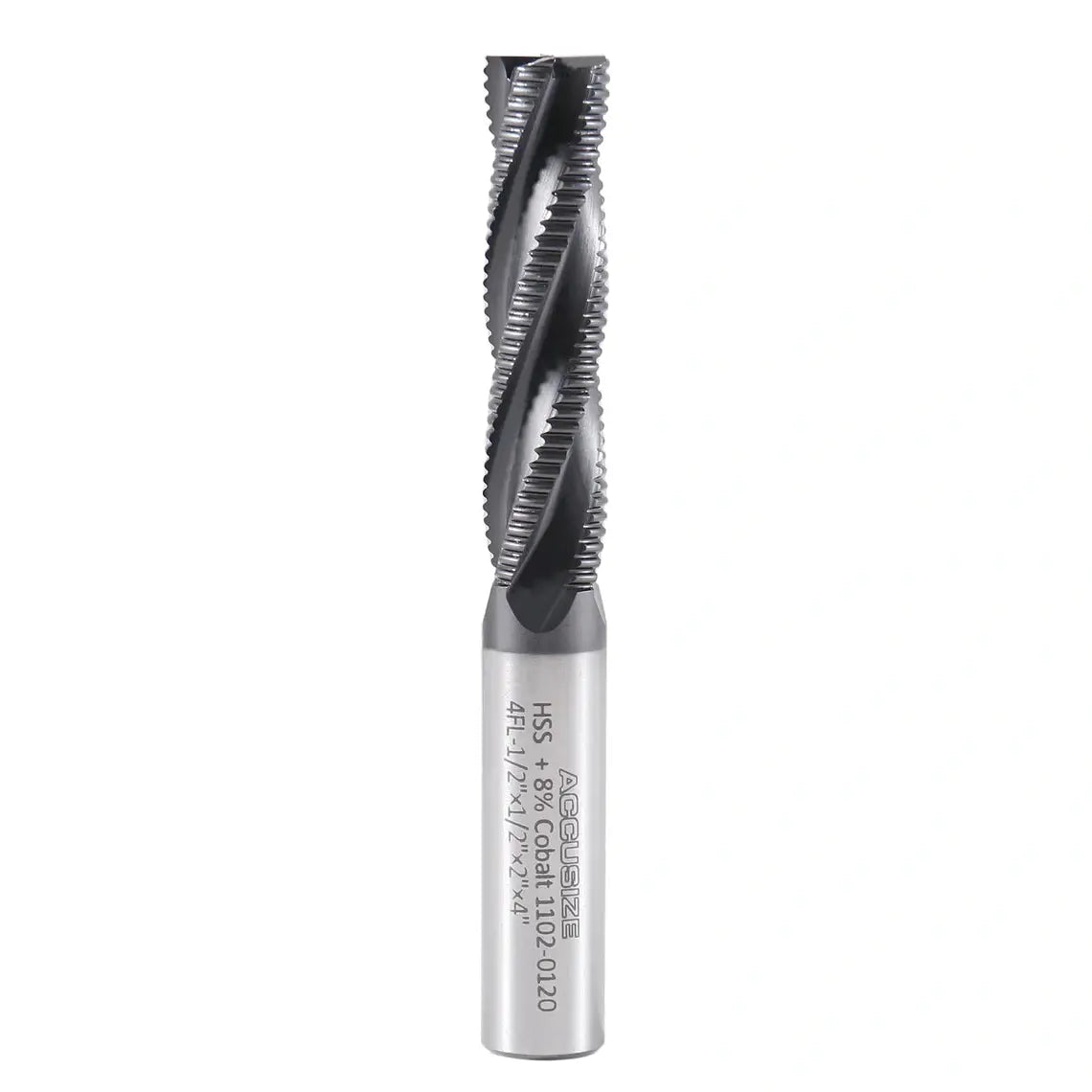

| 1102-0120 | 1/2" | 1/2" | 2" | 4" | 4 |
| 1102-0058 | 5/8" | 5/8" | 1-5/8" | 3-3/4" | 4 |
| 1102-0034 | 3/4" | 3/4" | 1-5/8" | 3-3/4" | 4 |
| 1102-0001 | 1" | 1" | 2" | 4-1/2" | 5 |
| 1102-0031 | 1" | 1" | 3" | 5-1/2" | 5 |
| 1102-0114 | 1" | 1" | 4" | 6-1/2" | 5 |
| Recommended Cutting Conditions for Roughing End Mills [Side Milling] | ||||||||||||
| Work Material |
Low Carbon Steels (Tensile Strength: ≈480N/mm2) Copper Alloys, Cast Iron(Soft) |
Medium Carbon Steels (Tensile Strength: 480-720N/mm2) Copper Alloys, Cast Iron(Hard) |
High Carbon Steels (Tensile Strength: 720-950N/mm2) Alloys Steel, Stainless Steels |
Special Alloy Steels Untree-cutting Steels (30-40HRC) |
Aluminium, Aluminium Alloys & Plastic |
|||||||
| Mill Dia | Ae | Ad | Speed | Feed | Speed | Feed | Speed | Feed | Speed | Feed | Speed | Feed |
| (inch) | (inch) | (inch) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) |
| 1/4" | 1/8" | 3/8" | 1900 | 0.246 | 1425 | 0.177 | 1064 | 0.111 | 808 | 0.068 | 4275 | 0.738 |
| 5/16" | 5/32" | 15/32" | 1330 | 0.278 | 1007 | 0.209 | 760 | 0.134 | 570 | 0.085 | 2993 | 0.879 |
| 3/8" | 3/16" | 9/16" | 1064 | 0.311 | 808 | 0.236 | 599 | 0.147 | 451 | 0.095 | 2375 | 0.977 |
| 1/2" | 1/4" | 3/4" | 855 | 0.347 | 637 | 0.265 | 475 | 0.167 | 356 | 0.104 | 1900 | 1.115 |
| 5/8" | 5/16" | 15/16" | 675 | 0.390 | 504 | 0.295 | 380 | 0.187 | 285 | 0.118 | 1520 | 1.256 |
| 3/4" | 3/8" | 1-1/8" | 532 | 0.475 | 404 | 0.357 | 299 | 0.209 | 224 | 0.134 | 1188 | 1.394 |
| 1" | 1/2" | 1-1/2" | 428 | 0.390 | 318 | 0.295 | 238 | 0.187 | 181 | 0.118 | 950 | 1.394 |
- The Indicated speeds and feeds are for side milling
- a depth(Ae)=0.5D
- a width of cut(Ad)=1.5D
- Use a rigid and precise machine and holder.
- Use suitable cutting fluids
Recommended cutting speed and feed
