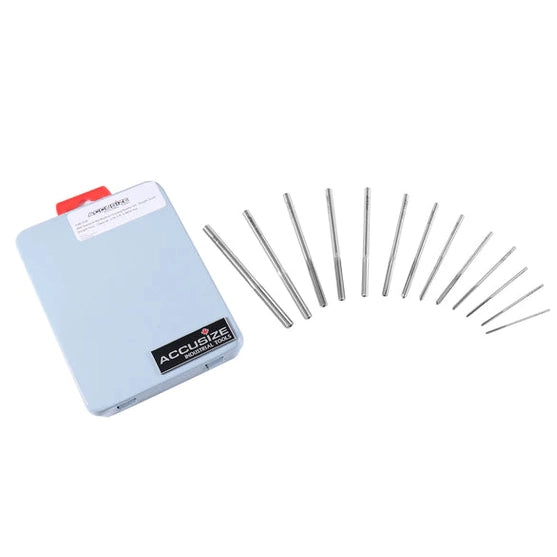

HSS CHUCKING REAMER SETS

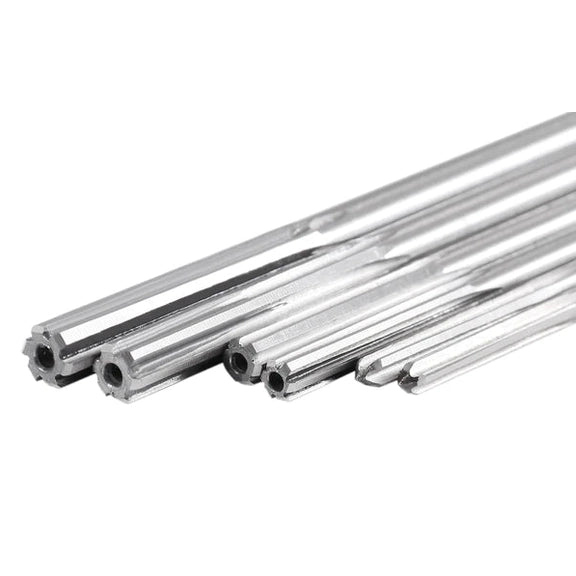

Chucking reamers are also known as machine reamers. They are the most common reamers used in lathes, drill presses and screw machines that provide a smooth finish to the hole. Regarding the counts of flutes, the more flutes a chucking reamer is with, the better performance it has. Accusize chucking reamers come with straight flutes and straight shanks.
- High-Speed Steel
- Straight Shank
- Straight Flute
- Diameter tolerance: +0.0001" to +0.0005"
-0.0000" - 29ps/set: 1/16" thru 1/2" by 64ths, fractional size
- 26ps/set: Letter size from A to Z
- 14ps/set: Over & under size 0.1240" thru. 0.5010", decimal size
- 25ps/set: 1.0 mm to 13.0 mm by 0.5 mm
- 60ps/set: #1 thru #60, wire gauge size
- 13ps/set: 1/16" thru 1/4" by 64ths, fractional size
| Item # | Pieces per set | Range |
|---|---|---|
| 5500-SF00 | 29 | 1/16" thru. 1/2" by 1/64" |
| 5500-SL00 | 26 | Letter Size A to Z |
| 5500-SX00 | 14 | Over & Under Size 0.1240"-0.5010" |
| 5500-SB00 | 25 | 1.0 mm - 13.0 mm by 0.5mm |
| 5500-SK00 | 60 | #1 to 60# |
| 5500-SE00 | 13 | 1/16" thru 1/4" by 64ths |
5500-SF00 SPECIFICATION
| Diameter (in.) | Shank Diameter (in.) | Flute Length (in.) | Overall Length (in.) | No. of Flutes |
| 1/16 | 0.0625 | 1/2 | 2-1/2 | 4 |
| 5/64 | 0.0781 | 3/4 | 3 | 4 |
| 3/32 | 0.0938 | 3/4 | 3 | 4 |
| 7/64 | 0.1094 | 7/8 | 3-1/2 | 4 |
| 1/8 | 0.1190 | 7/8 | 3-1/2 | 6 |
| 9/64 | 0.1350 | 1 | 4 | 6 |
| 5/32 | 0.1510 | 1 | 4 | 6 |
| 11/64 | 0.1645 | 1-1/8 | 4-1/2 | 6 |
| 3/16 | 0≤1805 | 1-1/8 | 4-1/2 | 6 |
| 13/64 | 0.1945 | 1-1/4 | 5 | 6 |
| 7/32 | 0.2075 | 1-1/4 | 5 | 6 |
| 15/64 | 0.2265 | 1-1/2 | 6 | 6 |
| 1/4 | 0.2405 | 1-1/2 | 6 | 6 |
| 17/64 | 0.2485 | 1-1/2 | 6 | 6 |
| 9/32 | 0.2485 | 1-1/2 | 6 | 6 |
| 19/64 | 0.2807 | 1-1/2 | 6 | 6 |
| 5/16 | 0.2807 | 1-1/2 | 6 | 6 |
| 21/64 | 0.2807 | 1-1/2 | 6 | 6 |
| 11/32 | 0.2807 | 1-1/2 | 6 | 6 |
| 23/64 | 0.3120 | 1-3/4 | 7 | 6 |
| 3/8 | 0.3120 | 1-3/4 | 7 | 6 |
| 25/64 | 0.3120 | 1-3/4 | 7 | 6 |
| 13/32 | 0.3120 | 1-3/4 | 7 | 6 |
| 27/64 | 0.3745 | 1-3/4 | 7 | 6 |
| 7/16 | 0.3745 | 1-3/4 | 7 | 6 |
| 29/64 | 0.3745 | 1-3/4 | 7 | 6 |
| 15/32 | 0.3745 | 1-3/4 | 7 | 6 |
| 31/64 | 0.4370 | 2 | 8 | 6 |
| 1/2 | 0.4370 | 2 | 8 | 6 |
5500-SL00 SPECIFICATION
| Size |
Decimal Diameter (in.) |
Shank Diameter (in.) |
Flute Length (in.) |
Overall Length (in.) |
No. of Flutes |
| A | 0.2340 | 0.2265 | 1-1/2 | 6 | 6 |
| B | 0.2380 | 0.2329 | 1-1/2 | 6 | 6 |
| C | 0.2420 | 0.2329 | 1-1/2 | 6 | 6 |
| D | 0.2460 | 0.2329 | 1-1/2 | 6 | 6 |
| E | 0.2500 | 0.2405 | 1-1/2 | 6 | 6 |
| F | 0.2570 | 0.2485 | 1-1/2 | 6 | 6 |
| G | 0.2610 | 0.2485 | 1-1/2 | 6 | 6 |
| H | 0.2660 | 0.2485 | 1-1/2 | 6 | 6 |
| I | 0.2720 | 0.2485 | 1-1/2 | 6 | 6 |
| J | 0.2770 | 0.2485 | 1-1/2 | 6 | 6 |
| K | 0.2810 | 0.2485 | 1-1/2 | 6 | 6 |
| L | 0.2900 | 0.2807 | 1-1/2 | 6 | 6 |
| M | 0.2950 | 0.2807 | 1-1/2 | 6 | 6 |
| N | 0.3020 | 0.2807 | 1-1/2 | 6 | 6 |
| O | 0.3160 | 0.2807 | 1-1/2 | 6 | 6 |
| P | 0.3230 | 0.2807 | 1-1/2 | 6 | 6 |
| Q | 0.3320 | 0.2807 | 1-1/2 | 6 | 6 |
| R | 0.3390 | 0.2807 | 1-1/2 | 6 | 6 |
| S | 0.3480 | 0.3120 | 1-3/4 | 7 | 6 |
| T | 0.3580 | 0.3120 | 1-3/4 | 7 | 6 |
| U | 0.3680 | 0.3120 | 1-3/4 | 7 | 6 |
| V | 0.3770 | 0.3120 | 1-3/4 | 7 | 6 |
| W | 0.3860 | 0.3120 | 1-3/4 | 7 | 6 |
| X | 0.3970 | 0.3120 | 1-3/4 | 7 | 6 |
| Y | 0.4040 | 0.3120 | 1-3/4 | 7 | 6 |
| Z | 0.4130 | 0.3745 | 1-3/4 | 7 | 6 |
5500-SB00 SPECIFICATIONS
| Size (mm) |
Decimal Diameter (in.) |
Flute Length (in.) |
Overall Length (in.) |
No. of Flutes |
| 1.0 | 0.0394 | 1/2 | 1-5/8 | 4 |
| 1.5 | 0.0591 | 1/2 | 2-1/2 | 4 |
| 2.0 | 0.0787 | 3/4 | 3 | 4 |
| 2.5 | 0.0984 | 7/8 | 3-1/2 | 4 |
| 3.0 | 0.1181 | 7/8 | 3-1/2 | 4 |
| 3.5 | 0.1378 | 1 | 4 | 6 |
| 4.0 | 0.1575 | 1-1/8 | 4-1/2 | 6 |
| 4.5 | 0.1772 | 1-1/8 | 4-1/2 | 6 |
| 5.0 | 0.1969 | 1-1/4 | 5 | 6 |
| 5.5 | 0.2165 | 1-1/4 | 5 | 6 |
| 6.0 | 0.2362 | 1-1/2 | 6 | 6 |
| 6.5 | 0.2559 | 1-1/2 | 6 | 6 |
| 7.0 | 0.2756 | 1-1/2 | 6 | 6 |
| 7.5 | 0.2953 | 1-1/2 | 6 | 6 |
| 8.0 | 0.3150 | 1-1/2 | 6 | 6 |
| 8.5 | 0.3346 | 1-1/2 | 6 | 6 |
| 9.0 | 0.3543 | 1-3/4 | 7 | 6 |
| 9.5 | 0.3740 | 1-3/4 | 7 | 6 |
| 10.0 | 0.3937 | 1-3/4 | 7 | 6 |
| 10.5 | 0.4134 | 1-3/4 | 7 | 6 |
| 11.0 | 0.4331 | 1-3/4 | 7 | 6 |
| 11.5 | 0.4528 | 1-3/4 | 7 | 6 |
| 12.0 | 0.4724 | 1-3/4 | 7 | 6 |
| 12.5 | 0.4921 | 2 | 8 | 6 |
| 13.0 | 0.5118 | 2 | 8 | 6 |
5500-SK00 SPECIFICATIONS
- in HUOT USA Index Metal Box
| Size |
Dec. Equiv. (in.) |
Flute Length (in.) |
Overall Length (in.) |
No. of Flutes |
| #1 | 0.228 | 1 1/2 | 6 | 6 |
| #2 | 0.221 | 1 1/2 | 6 | 6 |
| #3 | 0.213 | 1 1/4 | 5 | 6 |
| #4 | 0.209 | 1 1/4 | 5 | 6 |
| #5 | 0.2055 | 1 1/4 | 5 | 6 |
| #6 | 0.204 | 1 1/4 | 5 | 6 |
| #7 | 0.201 | 1 1/4 | 5 | 6 |
| #8 | 0.199 | 1 1/4 | 5 | 6 |
| #9 | 0.196 | 1 1/4 | 5 | 6 |
| #10 | 0.1935 | 1 1/4 | 5 | 6 |
| #11 | 0.191 | 1 1/4 | 5 | 6 |
| #12 | 0.189 | 1 1/8 | 4 1/4 | 6 |
| #13 | 0.185 | 1 1/8 | 4 1/4 | 6 |
| #14 | 0.182 | 1 1/8 | 4 1/4 | 6 |
| #15 | 0.18 | 1 1/8 | 4 1/4 | 6 |
| #16 | 0.177 | 1 1/8 | 4 1/4 | 6 |
| #17 | 0.173 | 1 1/8 | 4 1/4 | 6 |
| #18 | 0.1695 | 1 1/8 | 4 1/4 | 6 |
| #19 | 0.166 | 1 1/8 | 4 1/4 | 6 |
| #20 | 0.161 | 1 1/8 | 4 1/4 | 6 |
| #21 | 0.159 | 1 1/8 | 4 1/4 | 6 |
| #22 | 0.157 | 1 | 4 | 6 |
| #23 | 0.154 | 1 | 4 | 6 |
| #24 | 0.152 | 1 | 4 | 6 |
| #25 | 0.1495 | 1 | 4 | 6 |
| #26 | 0.147 | 1 | 4 | 6 |
| #27 | 0.144 | 1 | 4 | 6 |
| #28 | 0.1405 | 1 | 4 | 6 |
| #29 | 0.136 | 1 | 4 | 6 |
| #30 | 0.1285 | 7/8 | 3 1/2 | 6 |
| #31 | 0.12 | 7/8 | 3 1/2 | 4 |
| #32 | 0.116 | 7/8 | 3 1/2 | 4 |
| #33 | 0.113 | 7/8 | 3 1/2 | 4 |
| #34 | 0.111 | 7/8 | 3 1/2 | 4 |
| #35 | 0.11 | 7/8 | 3 1/2 | 4 |
| #36 | 0.1065 | 7/8 | 3 1/2 | 4 |
| #37 | 0.104 | 7/8 | 3 1/2 | 4 |
| #38 | 0.1015 | 7/8 | 3 1/2 | 4 |
| #39 | 0.0995 | 7/8 | 3 1/2 | 4 |
| #40 | 0.095 | 7/8 | 3 1/2 | 4 |
| #41 | 0.096 | 7/8 | 3 1/2 | 4 |
| #42 | 0.0935 | 3/4 | 3 | 4 |
| #43 | 0.089 | 3/4 | 3 | 4 |
| #44 | 0.086 | 3/4 | 3 | 4 |
| #45 | 0.082 | 3/4 | 3 | 4 |
| #46 | 0.081 | 3/4 | 3 | 4 |
| #47 | 0.0785 | 3/4 | 3 | 4 |
| #48 | 0.076 | 3/4 | 3 | 4 |
| #49 | 0.073 | 3/4 | 3 | 4 |
| #50 | 0.07 | 3/4 | 3 | 4 |
| #51 | 0.067 | 3/4 | 3 | 4 |
| #52 | 0.0635 | 2 1/2 | 2 1/2 | 4 |
| #53 | 0.0595 | 2 1/2 | 2 1/2 | 4 |
| #54 | 0.055 | 2 1/2 | 2 1/2 | 4 |
| #55 | 0.052 | 2 1/2 | 2 1/2 | 4 |
| #56 | 0.0465 | 2 1/2 | 2 1/2 | 4 |
| #57 | 0.043 | 2 1/2 | 2 1/2 | 4 |
| #58 | 0.042 | 2 1/2 | 2 1/2 | 4 |
| #59 | 0.041 | 2 1/2 | 2 1/2 | 4 |
| #60 | 0.04 | 2 1/2 | 2 1/2 | 4 |

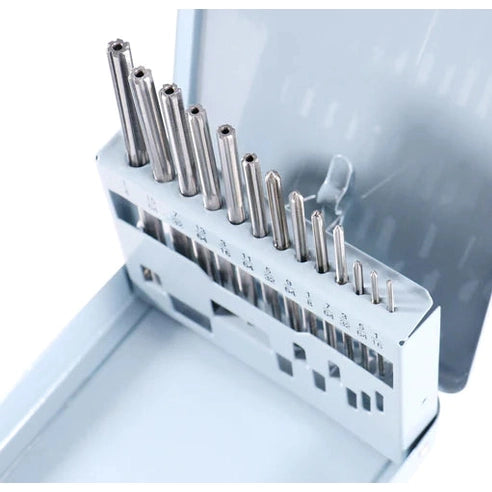

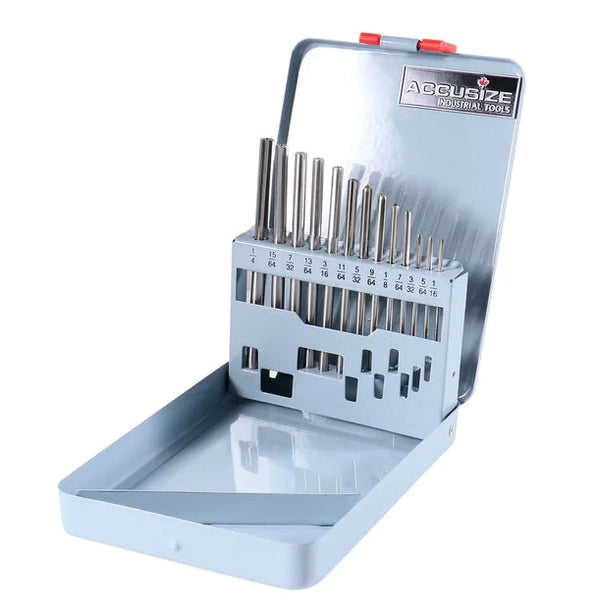

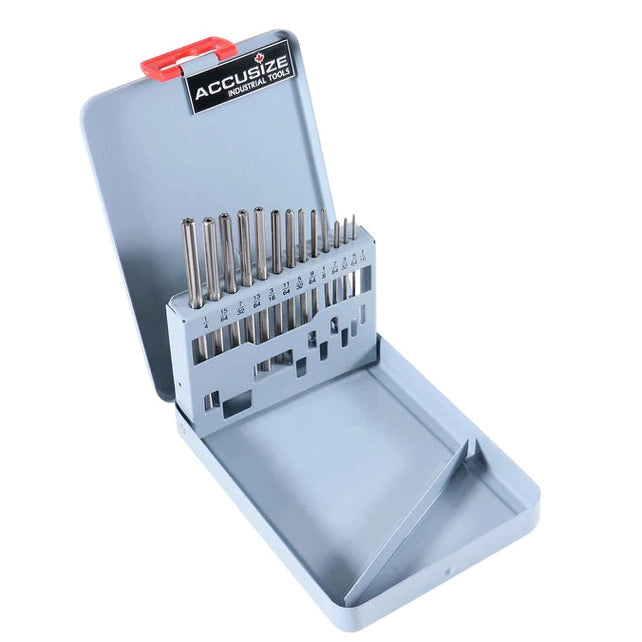

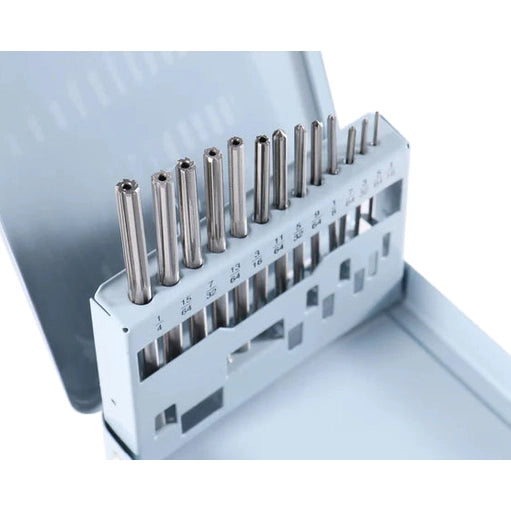

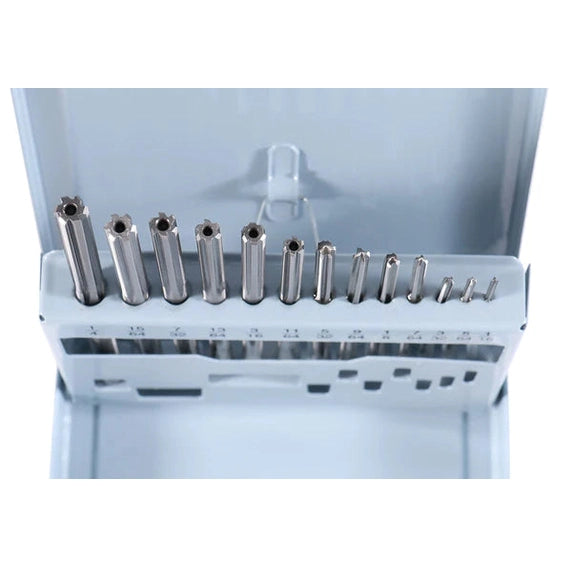

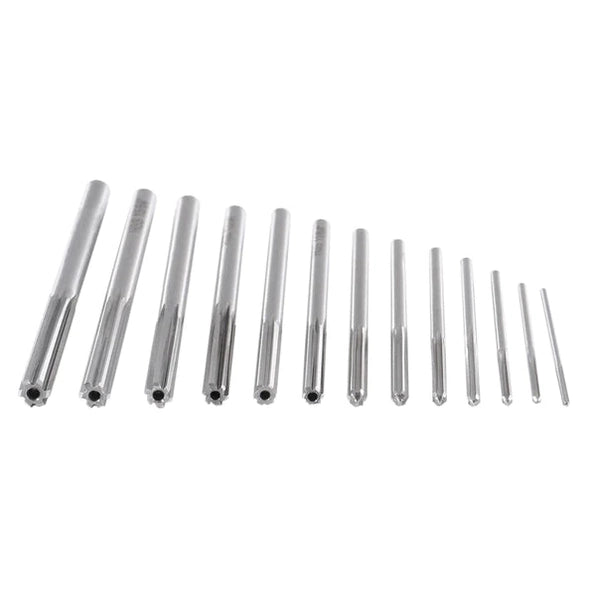

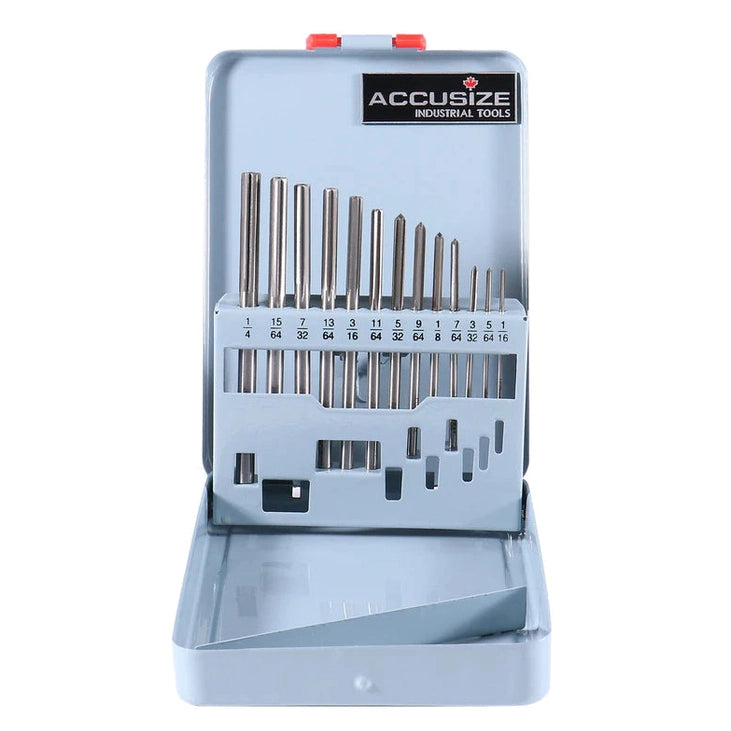

5500-SE00 SPECIFICATIONS
| Diameter (in.) | Shank Diameter (in.) | Flute Length (in.) | Overall Length (in.) | No. of Flutes |
| 1/16 | 0.0625 | 0.5 | 1-7/8 |
4 |
| 5/64 | 0.0781 | 3/4 | 2 |
4 |
| 3/32 | 0.0938 | 3/4 | 2-1/4 | 4 |
| 7/64 | 0.1094 | 7/8 | 2-5/8 | 4 |
| 1/8 | 0.1190 | 7/8 | 2-3/4 | 6 |
| 9/64 | 0.1350 | 1 | 2-7/8 | 6 |
| 5/32 | 0.1510 | 1 | 3-1/8 | 6 |
| 11/64 | 0.1645 | 1-1/8 | 3-1/4 | 6 |
| 3/16 | 0.1805 | 1-1/8 | 3-1/2 | 6 |
| 13/64 | 0.1945 | 1-1/4 | 3-5/8 | 6 |
| 7/32 | 0.2075 | 1-1/4 | 3-3/4 | 6 |
| 15/64 | 0.2265 | 1-1/2 | 3-7/8 | 6 |
| 1/4 | 0.2405 | 1-1/2 | 4 |
6 |
5500-SX00 SPECIFICATIONS
| 5500-SX00: 14pcs/set: 0.1240" thru 0.5010" | ||||
| Size | Dec.Equiv. | Flute Length | Overall Length | No. of Flutes |
| 0.1240" | 0.1240" |
7/8" | 3-1/2" | 4 |
| 0.1260" | 0.1260" | 7/8" | 3-1/2" | 6 |
| 0.1865" | 0.1865" | 1-1/8" | 4-1/2" | 6 |
| 0.1885" | 0.1885" | 1-1/8" | 4-1/2" | 6 |
| 0.2490" | 0.2490" | 1-1/2" | 6" | 6 |
| 0.2510" | 0.2510" | 1-1/2" | 6" | 6 |
| 0.3115" | 0.3115" | 1-1/2" | 6" | 6 |
| 0.3135" | 0.3135" | 1-1/2" | 6" | 6 |
| 0.3740" | 0.3740" | 1-3/4" | 7" | 6 |
| 0.3760" | 0.3760" | 1-3/4" | 7" | 6 |
| 0.4365" | 0.4365" | 1-3/4" | 7" | 6 |
| 0.4385" | 0.4385" | 1-3/4" | 7" | 6 |
| 0.4990" | 0.4990" | 2" | 8" | 6 |
| 0.5010" | 0.5010" | 2" | 8" | 6 |
