51765 Solid Carbide CNC Spiral Double O Flute
51765 Solid Carbide CNC Spiral Double O Flute
51765 Solid Carbide CNC Spiral Double O Flute
51765 Solid Carbide CNC Spiral Double O Flute
  • SKU: AMA51765
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

51765 Solid Carbide CNC Spiral Double O Flute

Shipping calculated at checkout.

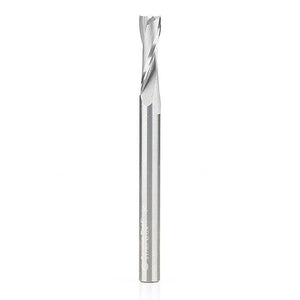

51765 Solid Carbide CNC Spiral Double O Flute, Plastic Cutting 1/4 Dia x 7/8 x 1/4 Shank x 3 Inch Long Up Cut Router Bit
To be used only on CNC machines and routers with automatic feeding.

Produce super clean smooth cuts especially in acrylic materials (Plexiglas‚® Lucite‚®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

Excellent for cutting:

  • Plastic
  • Acetal
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Alupanel®
  • Copolymer
  • Corian
  • Coroplast®*
  • Corrugated Polypropolyne
  • Delrin
  • Ethylene-Vinyl Acetate
  • Foam Board
  • Fomex®
  • Gator Board
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite
  • Mechanical/Engineered Plastics
  • Nitrite Rubber
  • Nylon
  • Perspex® Cast Acrylic Sheet
  • Phenolic
  • Plexiglas®
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate
  • Polypropylene (PP)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • PVC
  • Sign Foam
  • StarBoard® (King StarBoard R) High Density Polyethylene Sheet (HDPE)
  • Styrene-Acrylonitrile
  • Styrene-Butadiene Rubber (SBR)
  • Styrene-Isoprene-Styrene (SIS)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Ultra High Molecular Weight Polyethylene (UHMW)
  • Urethane

    *Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

    **A soft plastic cardboard made with super soft super flexible PVC.

    ***Gatorfoam‚® Foam Board a polystyrene foam board bonded between two layers of Luxcell‚® wood-fiber veneer.

    ‚¬ Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

    Maximum RPM:‚ 35,000

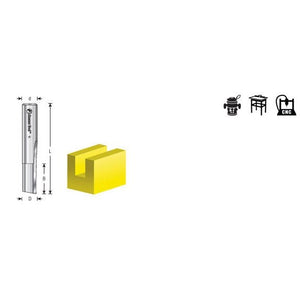

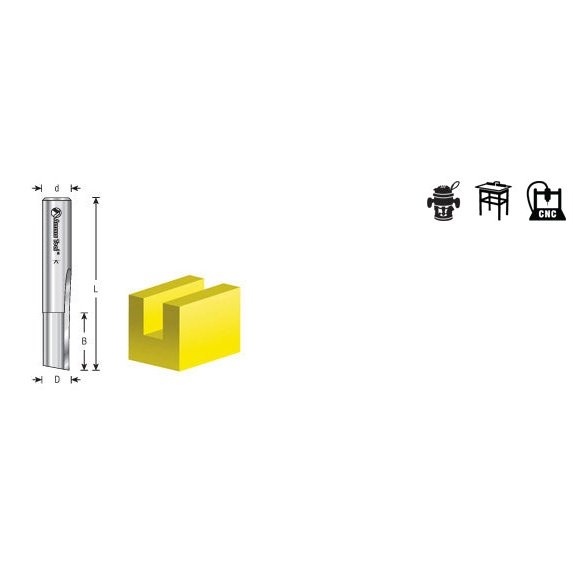

    Direction Up-Cut
    (D) Diameter 1/4
    (B) Cutting Height 7/8
    (d) Shank 1/4
    Overall Length (L) 3
    Flutes 2
