46094 K Solid Carbide Up Cut

46094 K Solid Carbide Up Cut

$64.95

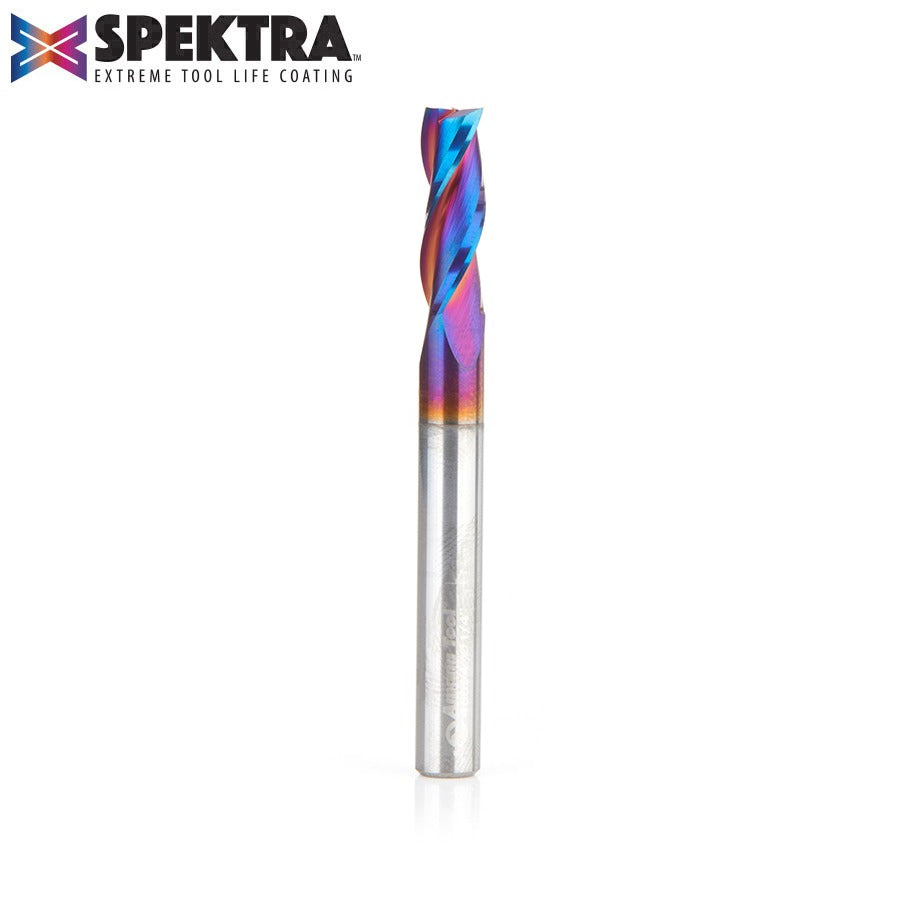

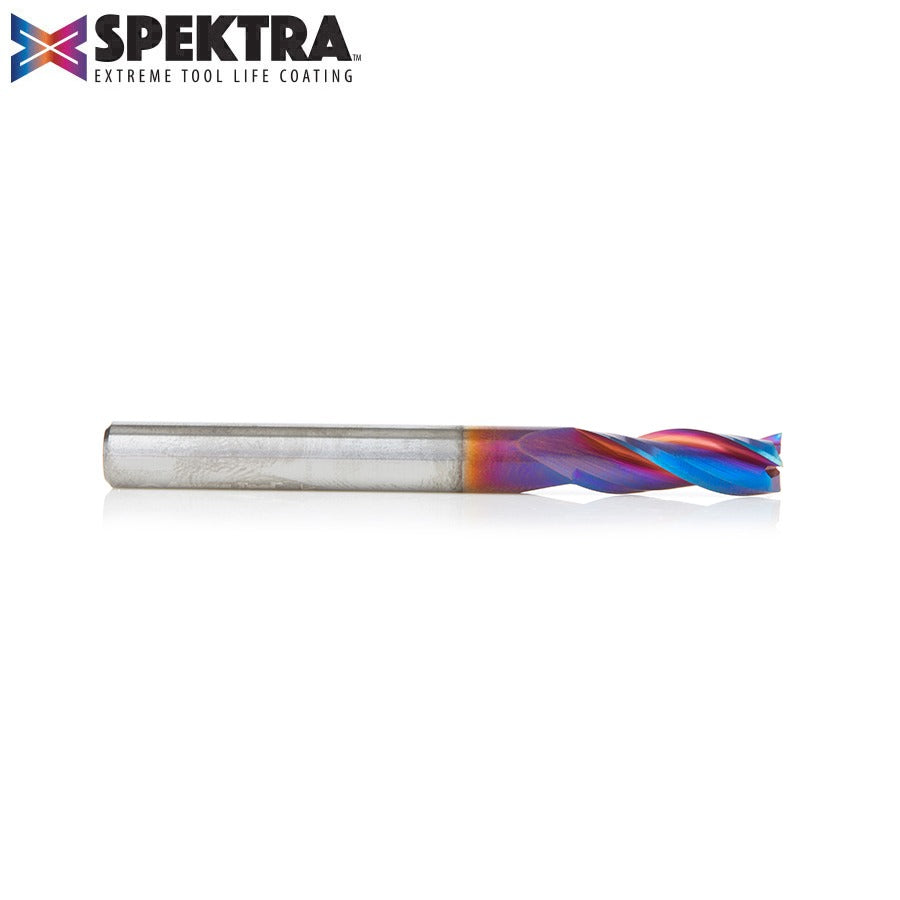

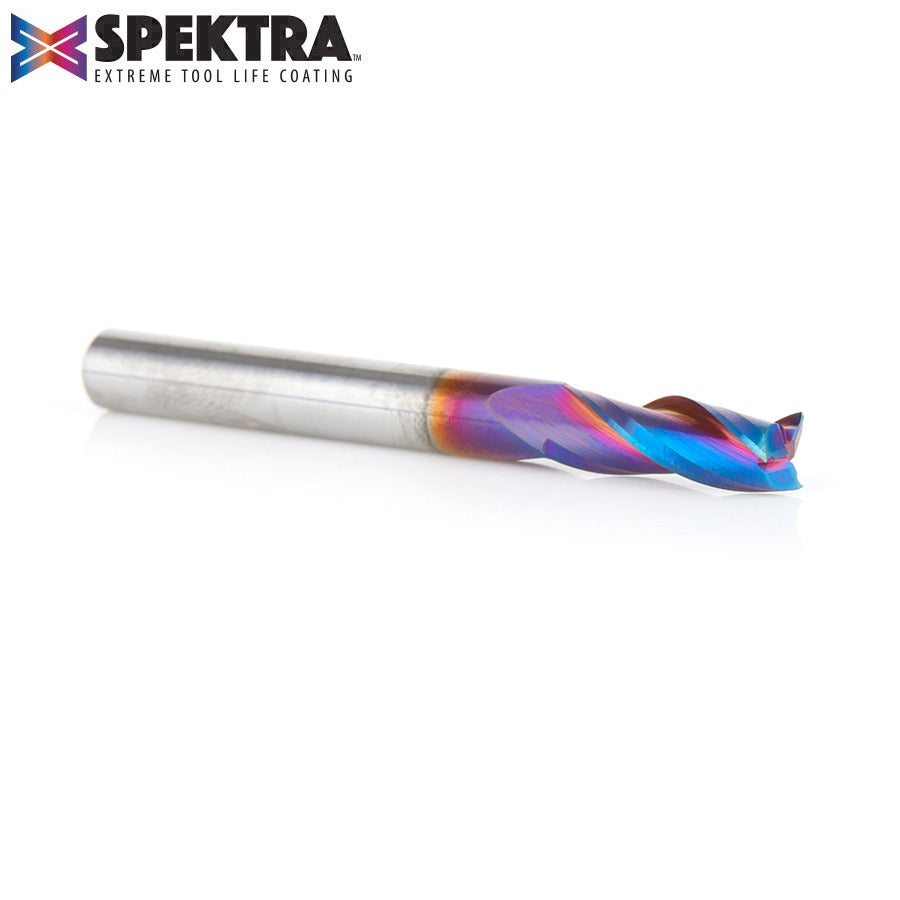

46094 K Solid Carbide Up Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2 1/2 Inch Long Composite, Fiberglass & Phenolic Cutting Spektra Extreme Tool Life Coated Router Bit
Amana Tool®s Modern Materials Finishing Geometry (MMFG) incorporates high shear multi-flute and a Spektra coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring Spektra coating addresses these challenges with a winning geometry combination.



Excellent for cutting:

  • Plastic
  • Acrylic Stone
  • Aluminum
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Carbon Fiber Reinforced Polymer (CFRP)
  • Composite
  • Corian
  • Coroplast®*
  • Fiberglass
  • Fiberglass PCB Board
  • HDPE
  • High Impact Polystyrene (HIPS)
  • Low Density Polyethylene (LDPE)
  • Phenolics
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan)€
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Thermoplastic Polyolefin (TPO)

*A soft plastic cardboard made with super soft super flexible PVC.

€ Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

Our Spektra bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tools cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

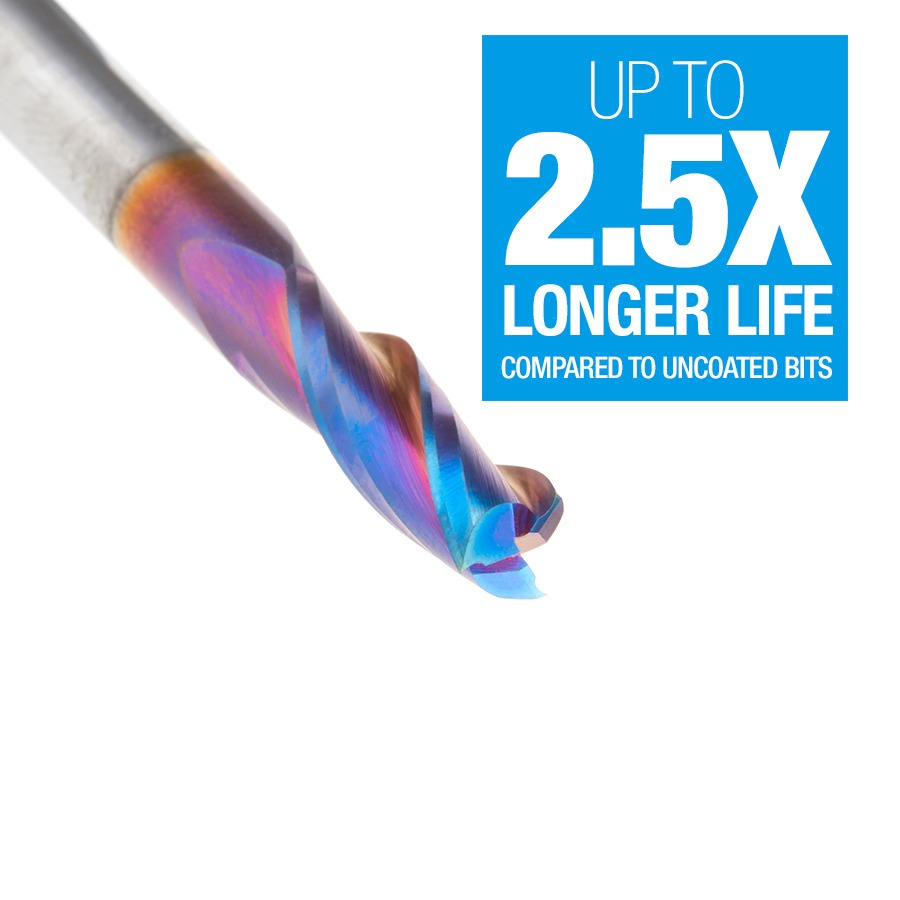

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Fusion Logo

Fusion 360 compatible tool file for 46094-K available for download, click here.

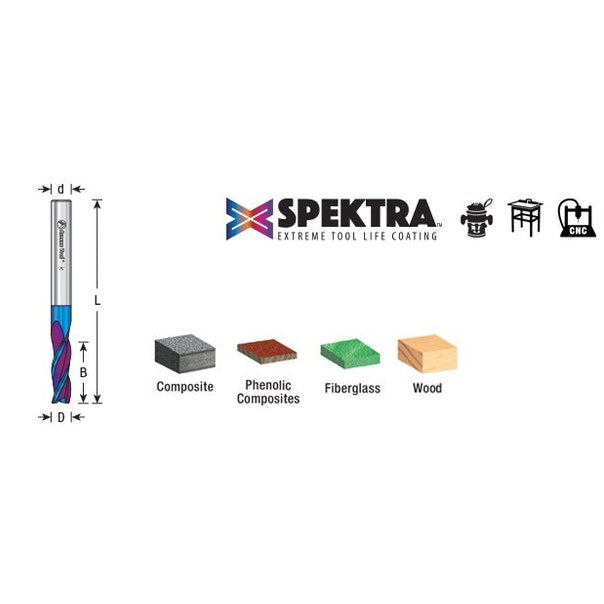

Specification
Direction Up-Cut
(D) Diameter 1/4
(B) Cutting Height 3/4
(d) Shank 1/4
Overall Length (L) 2-1/2

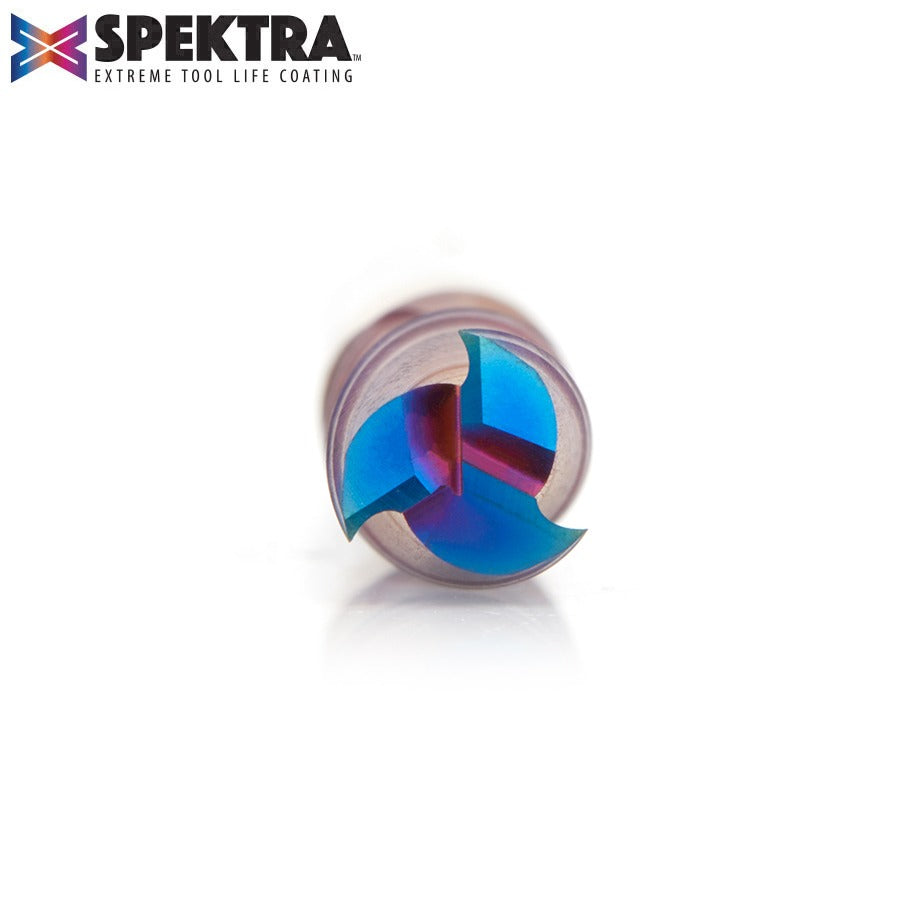

Flutes 3
