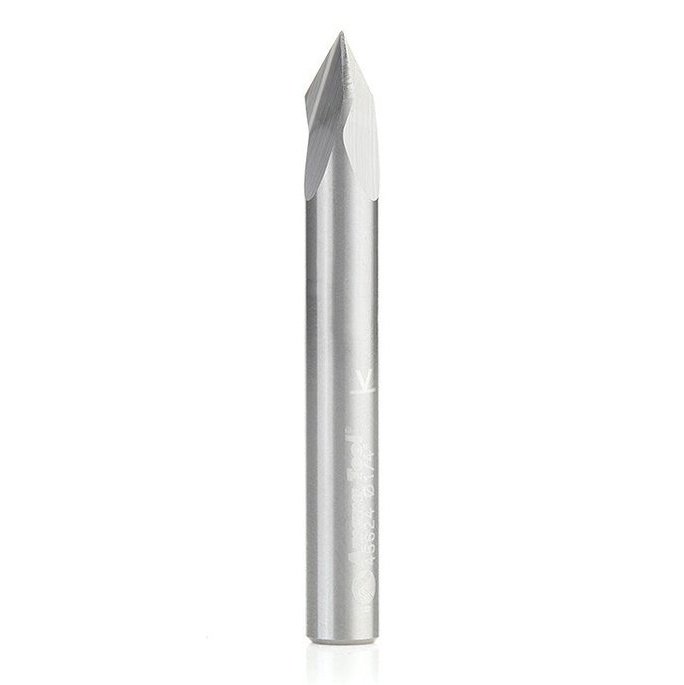

45624 Solid Carbide V Groove 60 Deg x 1/4 Dia x 7/32 x 1/4 Inch Shank
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
Vectric and Fusion 360 compatible tool files for 45624 available for download, click here.
| Angle (a°) | 60° |
|---|---|
| Diameter (D) | 1/4 |
| Cutting Height (B) | 7/32 |
| B1 | 31/64 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Flutes | 3 |
