SKU: SIN3-2004

Accusize - 2-Axis DRO Packages for Lathe Machines, Glass Scales (X, Y)

$689.00

Shipping calculated at checkout.

Product Availability Ask about this product

Vendor: Accusize
Product Type: Digital Readout

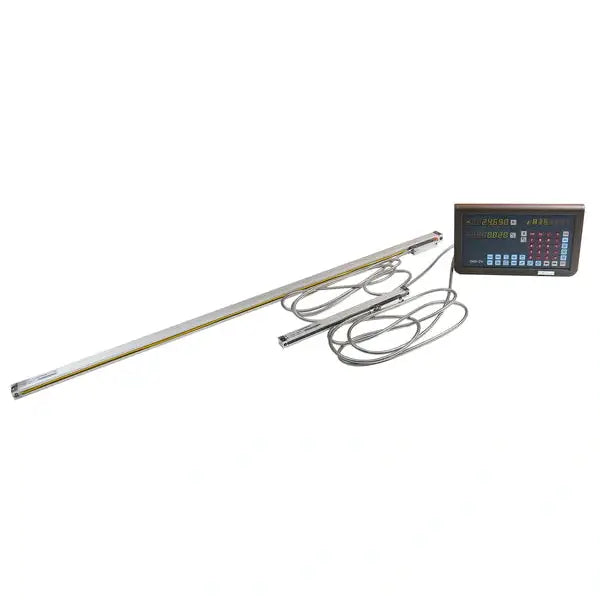

2-AXIS D.R.O. PACKAGES FOR LATHE MACHINES (X, Y)

Features

Voltage 90V-240V
Power DC 5v (15%) 80 MA
Two mounting brackets are each located at either end of the scale
Resolution selection: 0.0002"/0.005mm
Zero setting
Half calculating, locating workpiece center
Inch/Metric conversion and INC/ABS conversion
Diameter/radius selection
Simple & Smooth "R" function
Divide the perimeter of circle # (Bolt Circle Drilling)
Hole Drilling Along An Oblique Line
Save 200 workpiece zero points
Angular Surface Processing
Progressive Processing of Rectangular Inner Chamber
To reach objective values stop
Cone measure
Number percolate
Takes 16 bits & 32 bits CPU technology
200 cutlery memory
Power failure memory

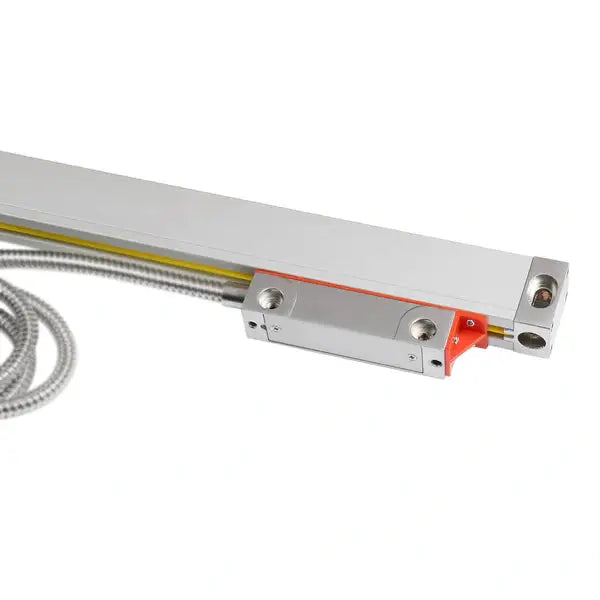

KA-300 series small size encoder

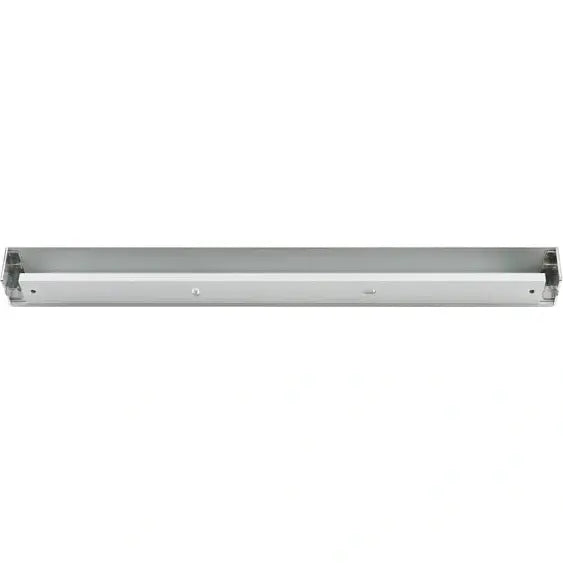

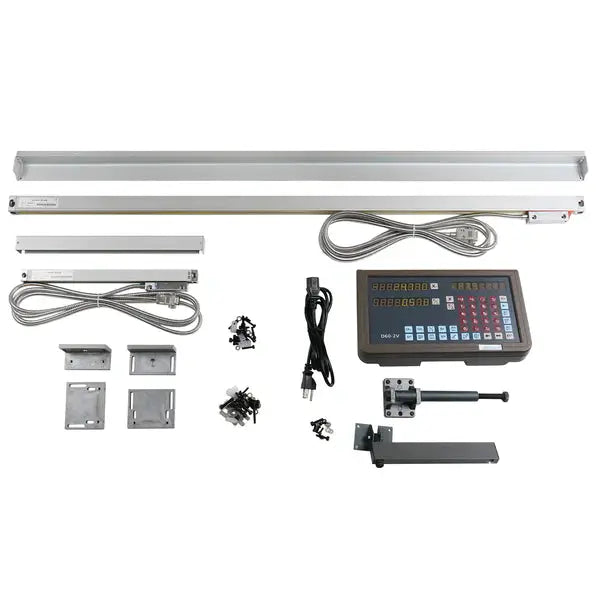

All mounting hardware

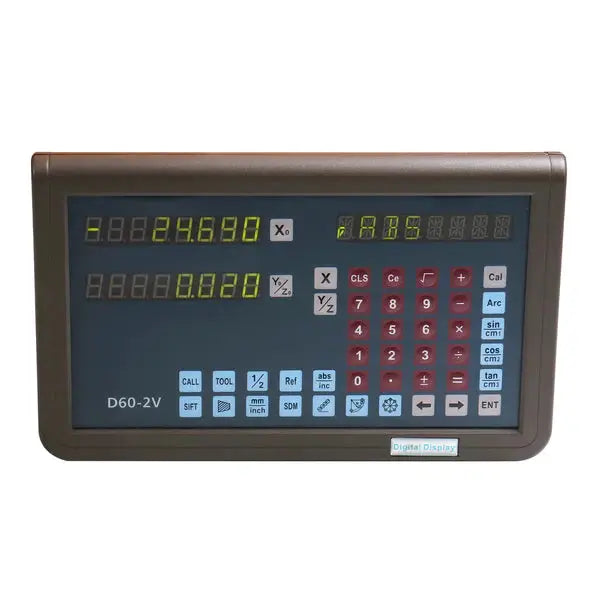

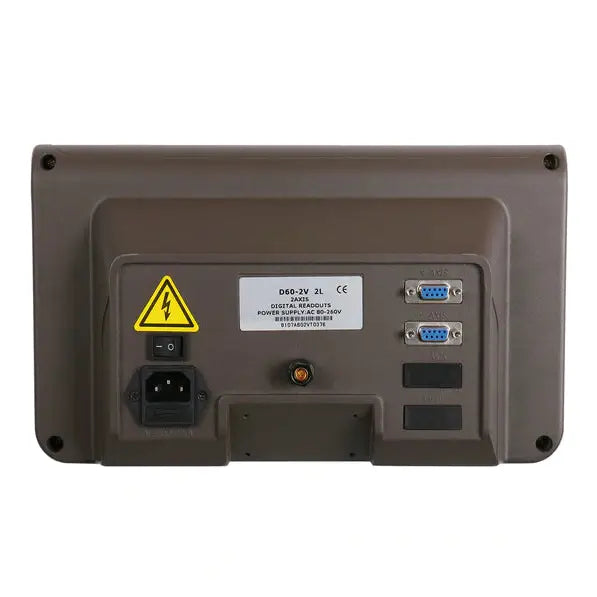

1 standard DRO Counter

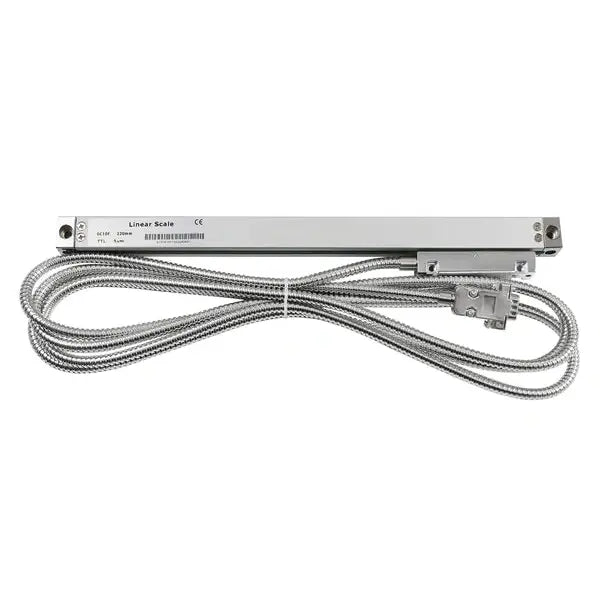

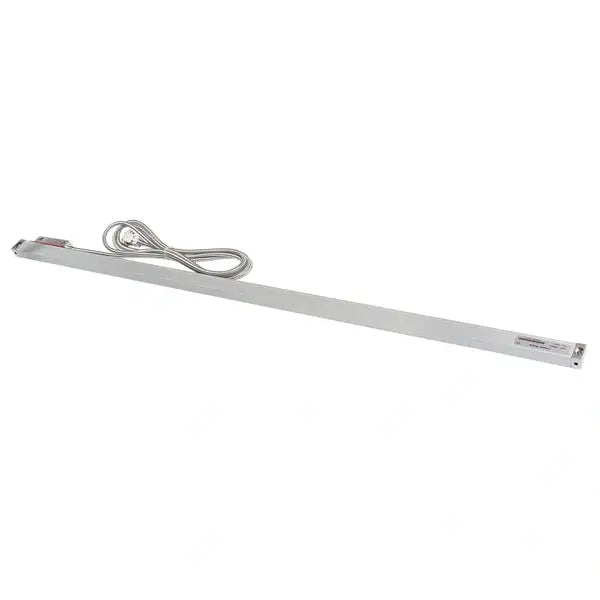

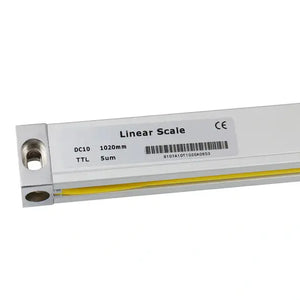

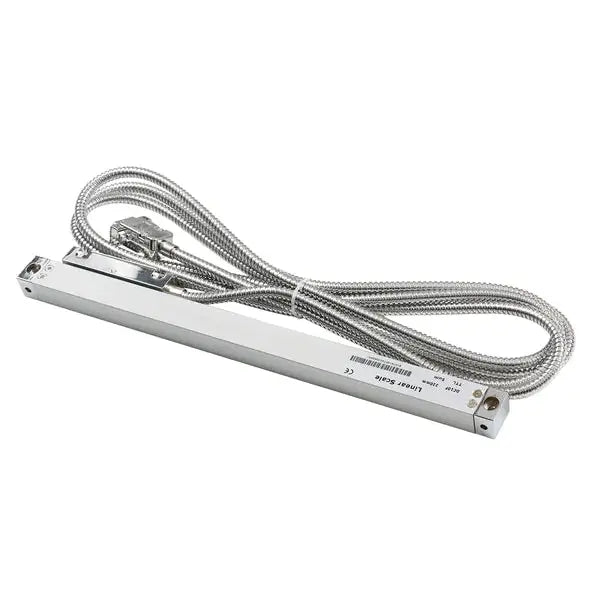

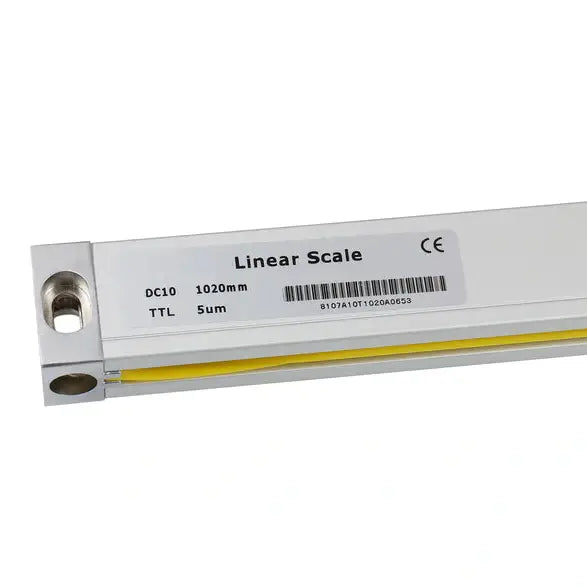

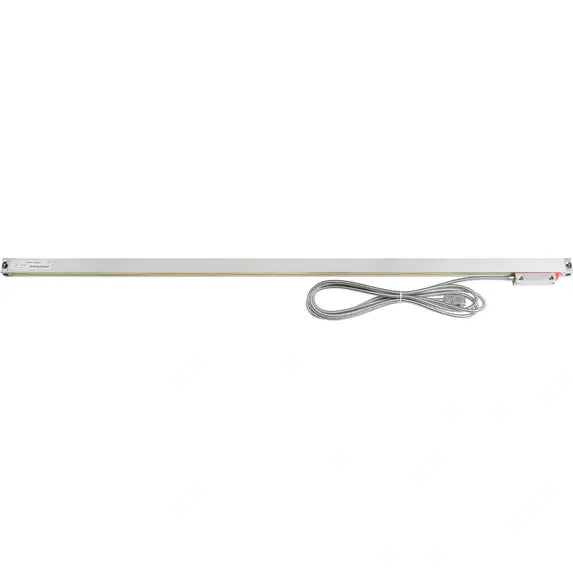

2 Linear glass scales, cross slide scale is slim style model
Operating manual
Resolution 0.0002"/0.005mm
Max. response speeds:47 in./sec.
Aluminum outside case with double rubber seals
Over 10" connecting cable
IP53 Liquid & Particle resistance

Item No.	Lathe Size	Travel	Overall Length of Scale
SIN3-2001	12'' x 24''	6'' x 30''	11'' x 35''
SIN3-2002	12'' x 36''	8'' x 40''	13'' x 45''
SIN3-2003	13'' x 40''	8'' x 40''	13'' x 45''
SIN3-2004	14'' x 40''	10'' x 40''	15'' x 45''
SIN3-2005	16''x 40''	10'' x 40''	15'' x 45''
