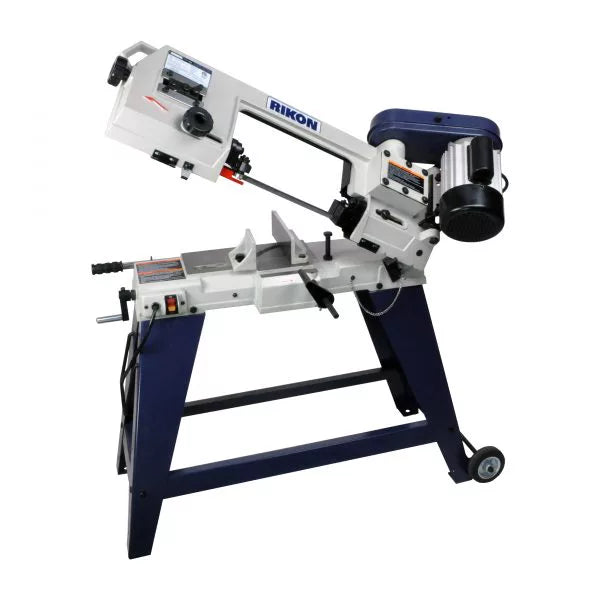

15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
15-400 4″ x 6″ Metal Cutting Bandsaw
  • SKU: 15-400

15-400 4″ x 6″ Metal Cutting Bandsaw

$749.99

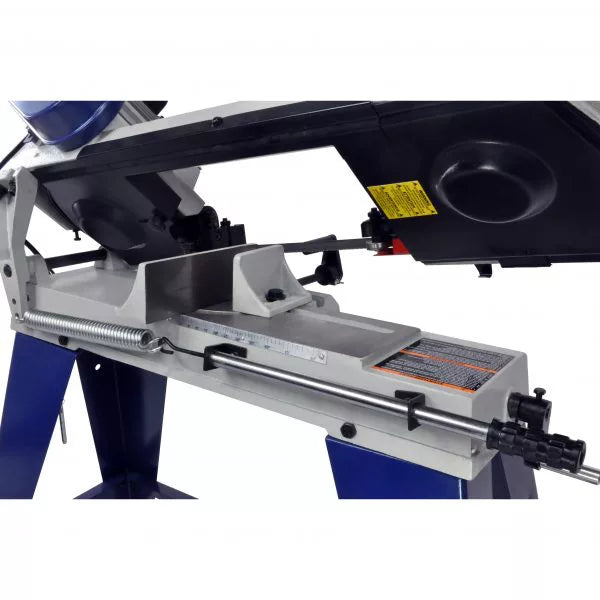

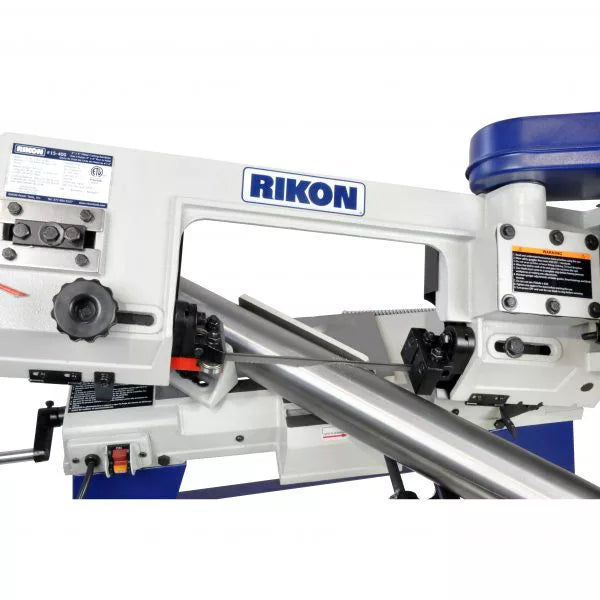

4″ x 6″ Metal Cutting Bandsaw #15-400 is designed to cut as a horizontal bow saw but will also operate as a vertical bandsaw when a table (included) is installed. Three blade speeds of 80, 120 and 180 feet per minute are ideal for optimizing cut performance in brass alloys up to stainless steel. Miter angle cuts are possible up to 45°. The blade can be fed into the material manually or controlled automatically and hands-free with a spring-assist torsion system. When a cutting operation in completed the saw will automatically shut off.


Motor

Horsepower 3/4HP
Amps 4.6A
Volts 120V, 60Hz, 1PH
RPM 1,720
Blade
Length 64-1/2" (1638 mm)
Width 1/2" (12.7mm)

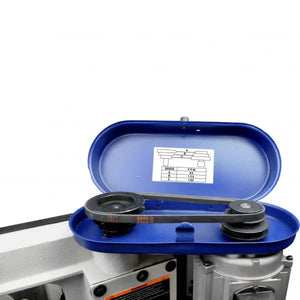

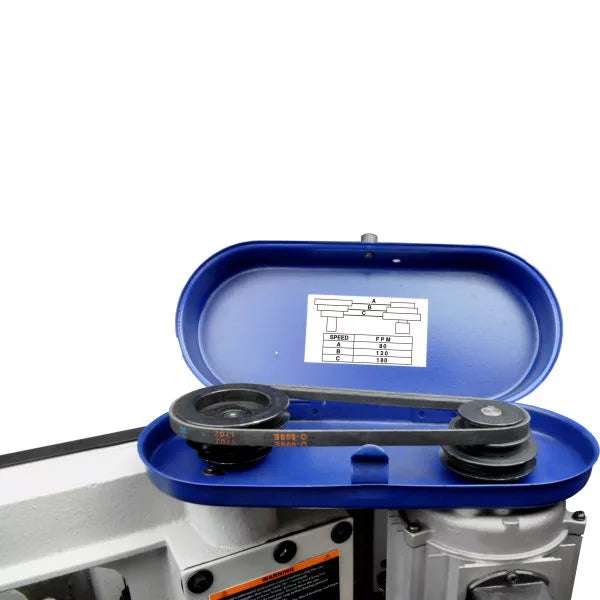

Speed 80/120/180 FPM


Cutting Capacity

Max Depth of Square Cut @ 90° 4" x 6" (101 x 152mm)
Max Depth of Square Cut @ 45° 2-3/4" (70mm)
Max Depth of Circular Cut @ 90° 4-1/2" (114mm)
Max Depth of Circular Cut @ 45° 2-3/4" (70mm)
Cutting Angle 0-45°

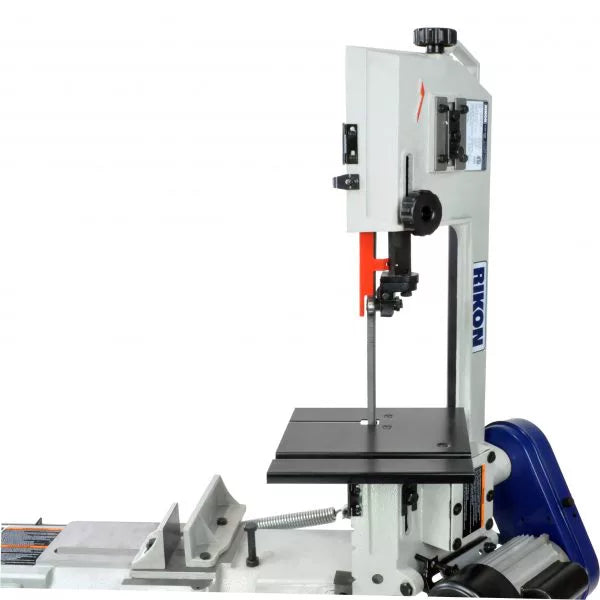

Vertical Table
Size 9-5/8" x 9-3/8" (245 x 238 mm)
Height from Floor 32-3/4" (832mm)

Overall

Horizontal Height 37-1/2" (953 mm)
Vertical Height 54" (1,372 mm)
Width 37-1/2" (953 mm)
Depth 18-1/4" (464 mm)
Net Weight 115lbs (52 kg)
Shipping Weight 123.5lbs (56 kg)
Shipping Carton 41" x 14" x 17-1/2" 1040mm x 360mm x 445mm
Warranty 5 Year

• Powerful 3/4HP Motor
• Cuts 4″ x 6″ Square & 4-1/2″ Round Stock
• Built-in Vise Clamps 0- 45°

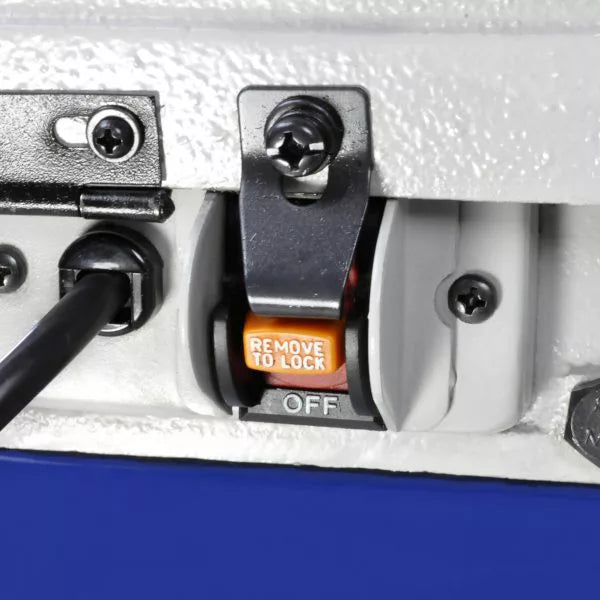

• Auto-Off Safety Paddle Switch
• Can be used as a Horizontal Bandsaw

19-6401 64-1/2” x 1/2” x 0.025" x 14 TPI Bi-Metal Reg Metal Cutting Blade
19-6402 64-1/2” x 1/2” x 0.025" x 18 TPI Bi-Metal Reg Metal Cutting Blade
19-6403 64-1/2” x 1/2” x 0.025" x 8/12 TPI Bi-Metal Vari Metal Cutting Blade
19-6404 64-1/2” x 1/2” x 0.025" x 10/14 TPI Bi-Metal Vari Metal Cutting Blade
19-6405 64-1/2” x 1/2” x 0.025" x 14/18 TPI Bi-Metal Vari Metal Cutting Blade

Download the English, Spanish, French Manual
