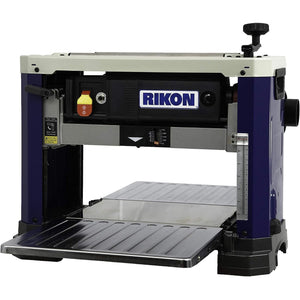

RIKON 25-135H - 13” Portable Planer w/Helical Style Cutterhead
Guaranteed Safe Checkout
Pickup currently unavailable at Regina
Pickup available
-
Regina
Pickup currently unavailable
1238 Lorne Street
Check in google map
Unit #1
Regina SK S4R 2J9
Canada -
Saskatoon
Pickup currently unavailable
2815B Cleveland Avenue
Check in google map
Saskatoon SK S7K 8G1
Canada
- Powerful 15 AMP Motor
- Helical Style Cutterhead

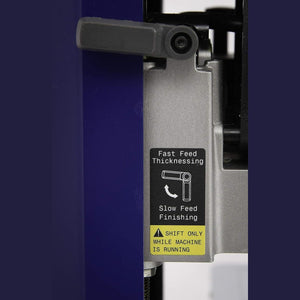

- 2-Speed Feed Rate
- All Steel Construction
- Easy Blade Access
- Infeed/Outfeed Table Extensions

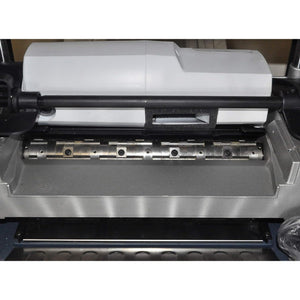

13” PORTABLE PLANER 25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.
Tech Specs
| Motor Amps | 15 |
| Motor Volts | 115V, 60 Hz |
| Motor Speed (no load) | 22,000 |
| Maximum Planer Capacity (Height) | 6” |
| Maximum Planer Width | 13” |
| Maximum Depth of Cut | 1/16” @ 6”to 13”wide 1/8” within 6” wide |
| Minimum Length Of Workpiece | 7" |
| Cutterhead Speed | 10,000 RPM |
| Number of Knives/ Inserts | 26 |
| Cuts Per Minute | - |
| Cutterhead Diameter | 2" |
| Knife/ Insert Size | 14.2mm x 14.2mm x 2mm |
| Number Of Cutterhead Rows | 6 |
| Feed Speed | 16 & 26 SF/MIN |
| Dust Port Diameter | 4” or 2-1/2“ Diameter |
| Overall Height | 19-1/4” |
| Overall Width | 22” |
| Overall Depth | 34-1/4” |
| Overall Base Size | 22” x 13-3/8” |
| Overall Net Weight | 68 lbs. |
| Warranty | 5 years |
