  • SKU: 10-324TG

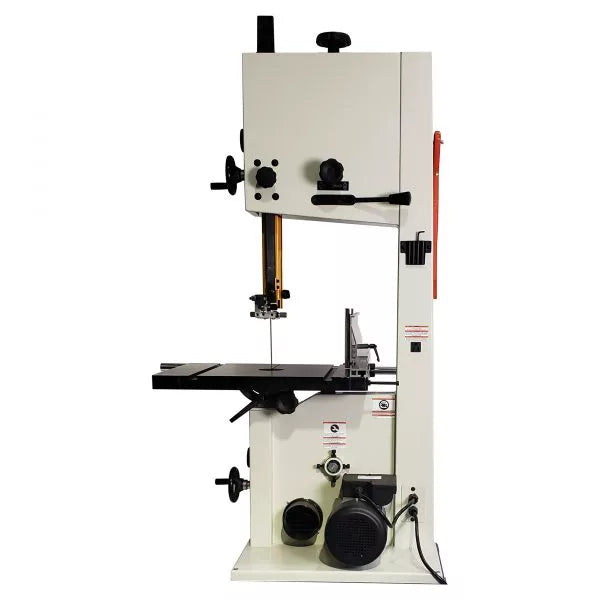

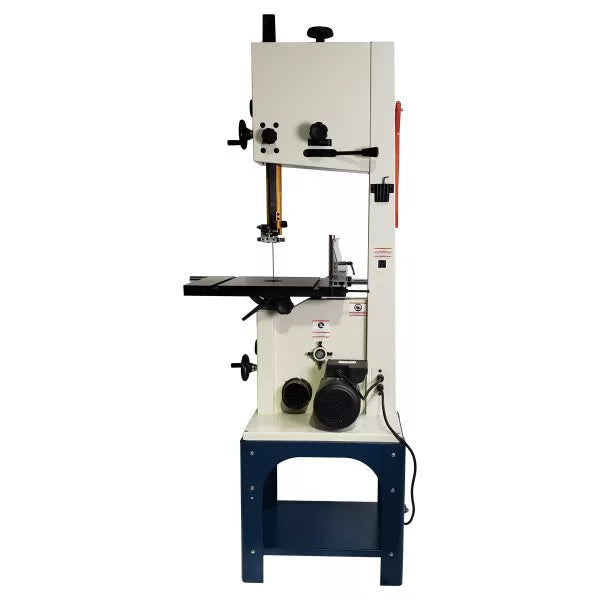

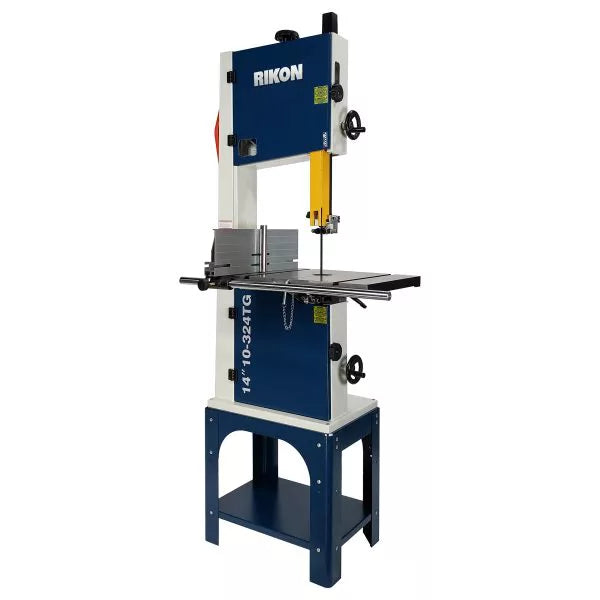

RIKON 10-324TG: 14″ Bandsaw

$1,606.95
Shipping calculated at checkout.
Product Availability Ask about this product

NOTE* Additional Shipping Charges will Apply, Your order will be processed once rate is calculated

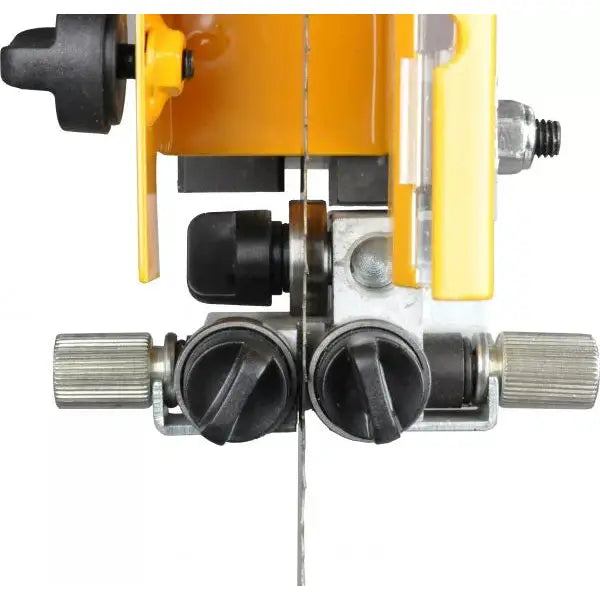

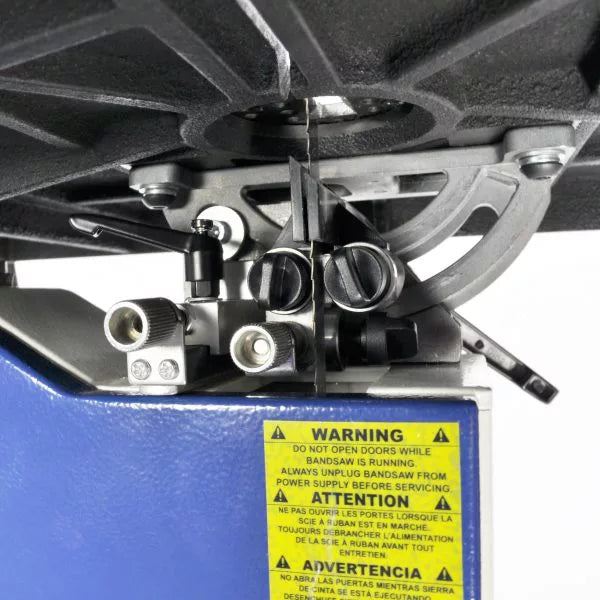

  • NEW Tool-less Thumbscrew Bearing Locks – No tools needed to adjust guide bearings

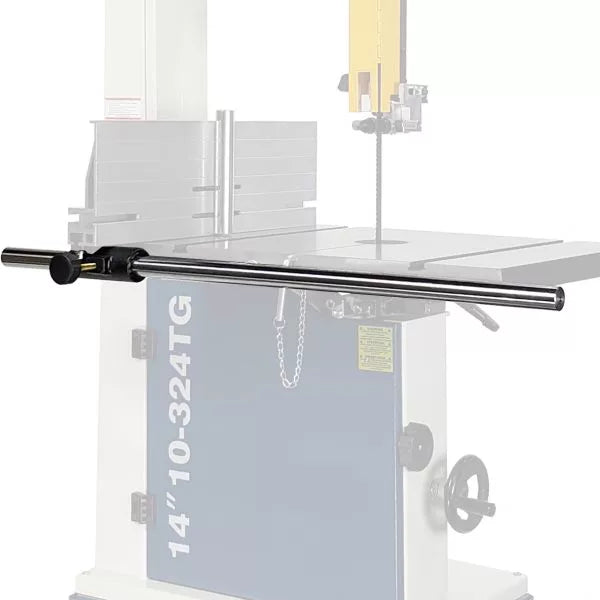

  • NEW Longer Fence Rail – Heavy duty steel rail 29” long
  • Rugged welded steel column and frame

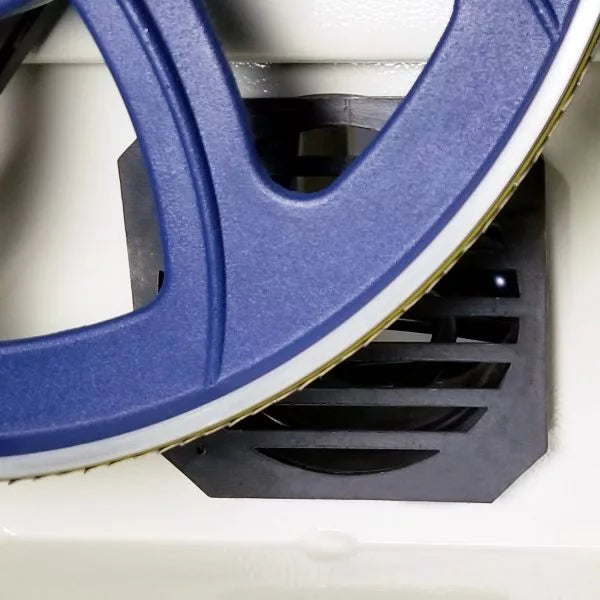

  • Balanced cast aluminum drive wheels
  • Resaw Capacity 13″
  • Dual blade speed ranges – 1445 / 2950 FPM

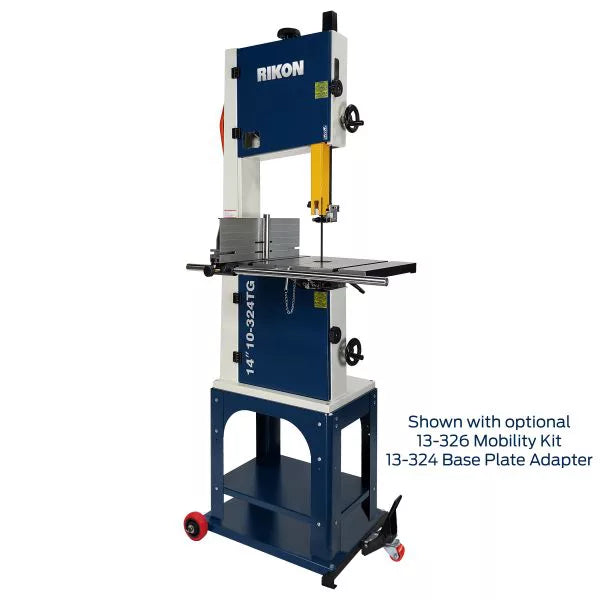

14” Bandsaw 10-324TG is RIKON’s most popular model due to its many professional features – including tool-less blade guides, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and base stand with storage shelf.

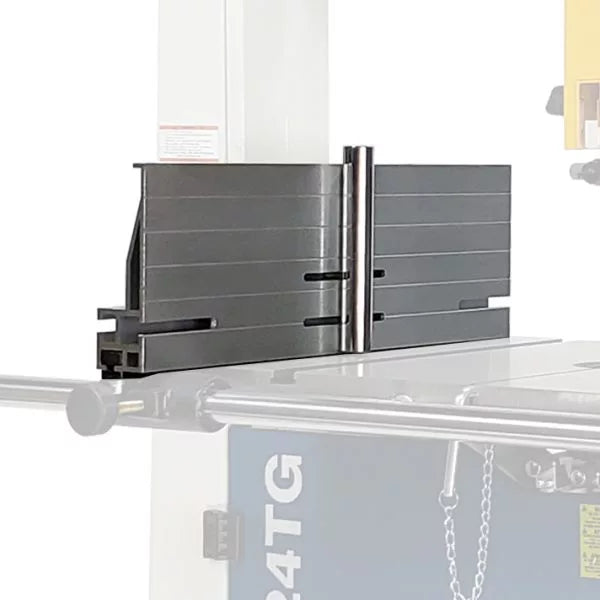

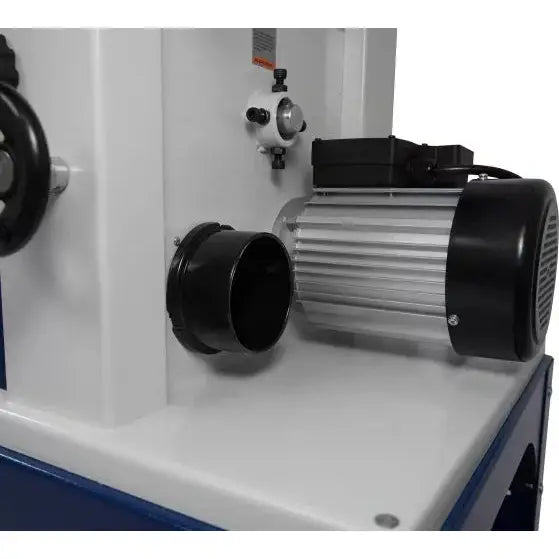

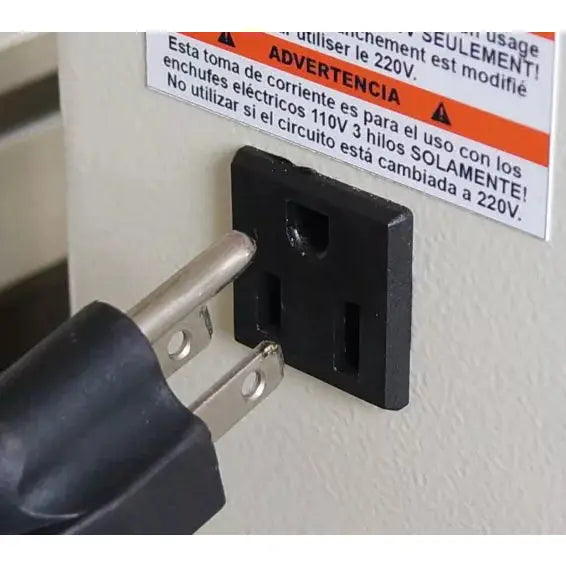

Its dual voltage, 1-1/2HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6″ tall rip fence with re-saw bar. Wired for use with 3-wire 115V receptacles.

Tech Specs
MOTOR HORSEPOWER 1-1/2 HP TEFC
MOTOR AMPS 14/7
MOTOR VOLTS 115/230V, 60Hz, 1Ph
BLADE SPEED 1,445/2,950 FT/MIN
CUTTING CAPACITY HEIGHT 13”
CUTTING CAPACITY WIDTH 13-5/8”
BLADE WIDTH 3/16” – 3/4”
BLADE LENGTH 111”
TABLE SIZE 21-1/2” x 15-3/4”
TABLE LEFT TILT -5°
TABLE RIGHT TILT 45°
TABLE MITER GAUGE "T" SLOT (2) 3/4” x 3/8”
TABLE HEIGHT TO FLOOR 39-1/2”
TABLE HEIGHT TO BASE 20”
TABLE FENCE SIZE 18-3/4” x 1-3/4” x 6”
WHEEL MATERIAL Cast Aluminium
BLADE GUIDE TYPE Tool-less
TABLE TRUNNION Cast Aluminum
OVERALL HEIGHT 74-1/2”
OVERALL WIDTH 30”
OVERALL DEPTH 25”
OVERALL BASE SIZE 21-5/8” x 14-3/4”
DUST PORT 1@4”
OVERALL NET WEIGHT 218 lbs.
WARRANTY 5 Years
