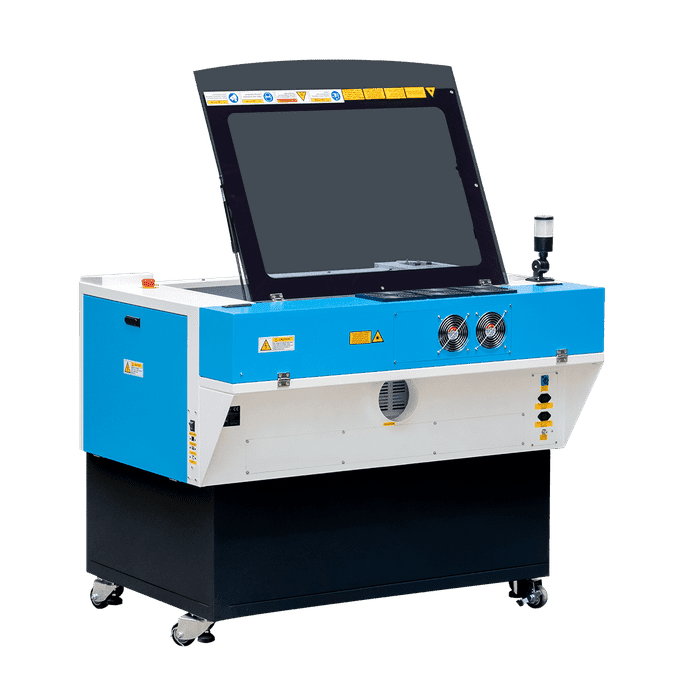

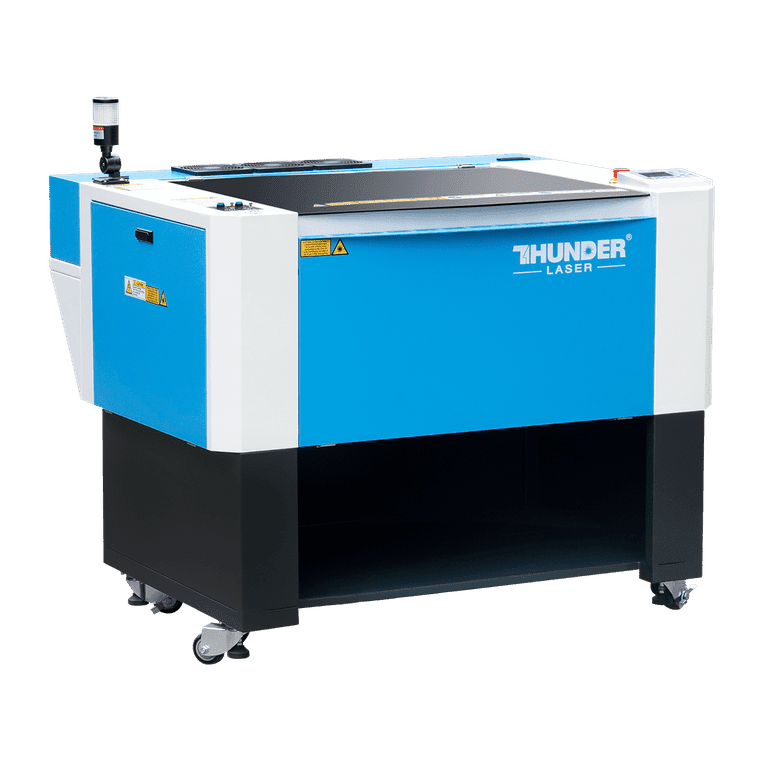

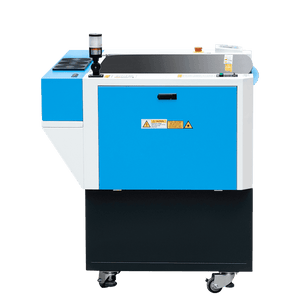

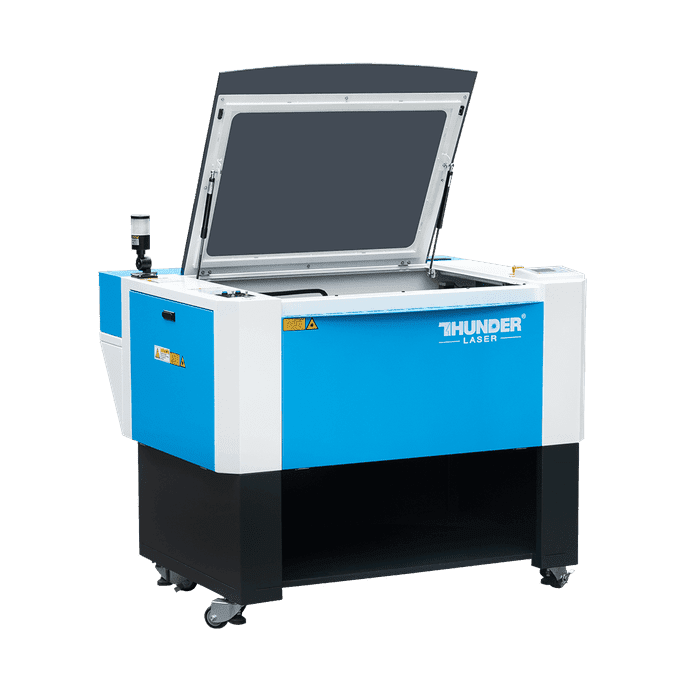

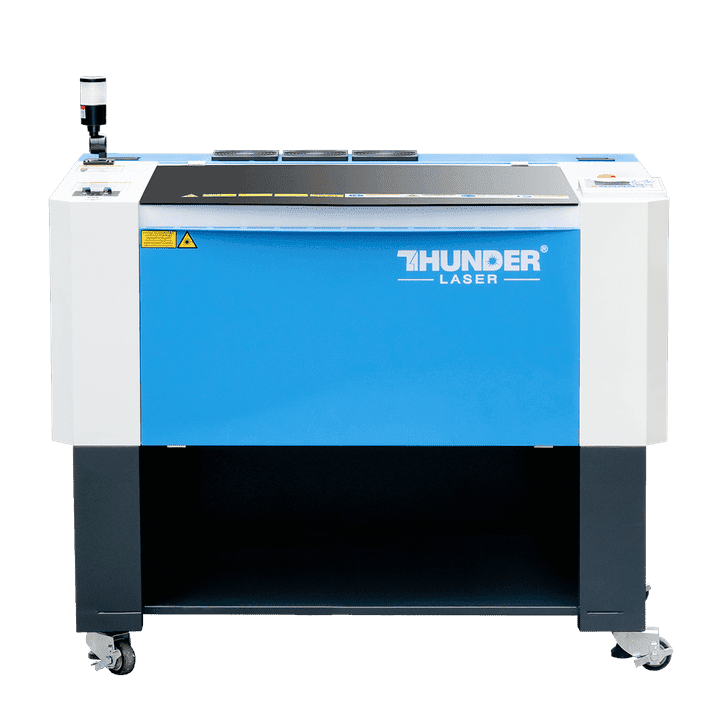

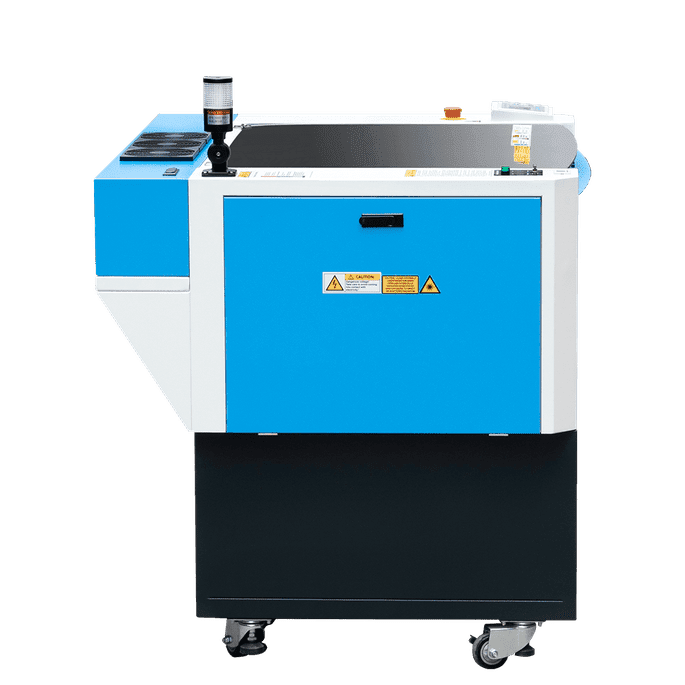

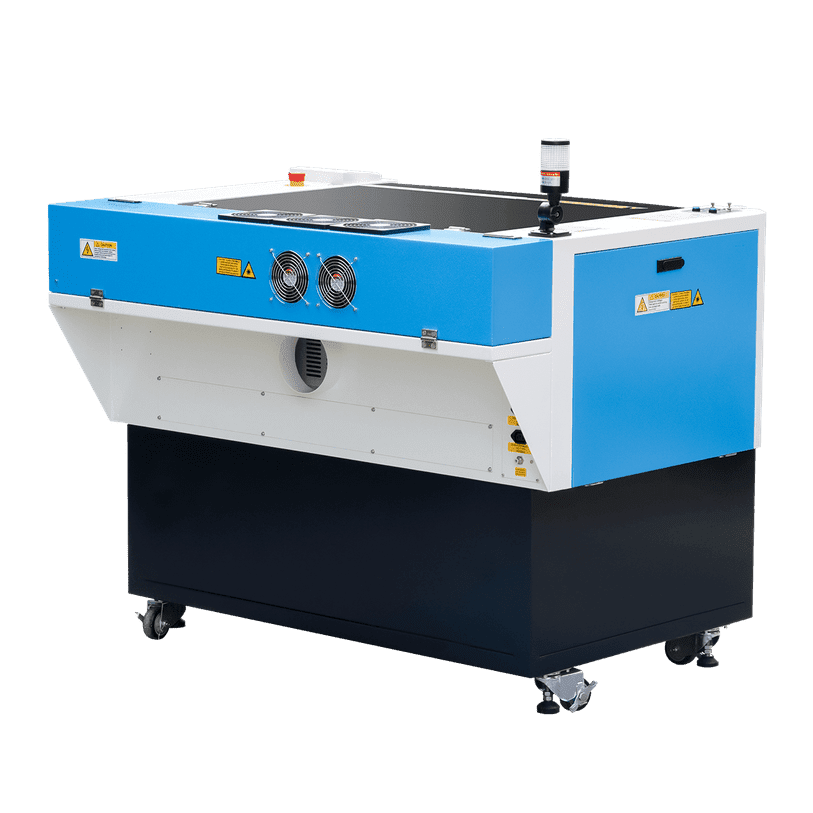

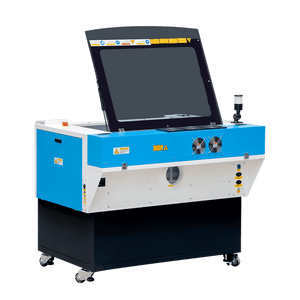

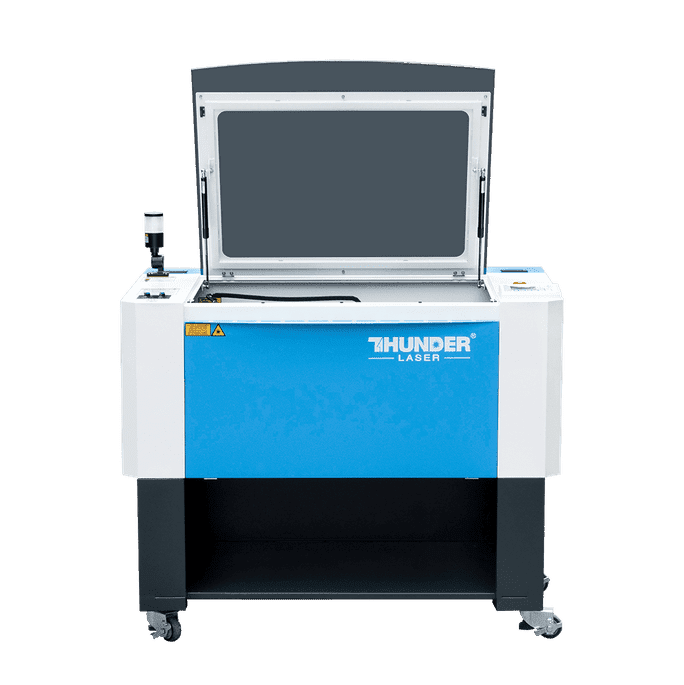

The Odin 32 is a compact, high-quality engraving and cutting machine. With 3G acceleration and 80 IPS (2,000mm/sec) engraving speed, this Metal Coherent RF Tube engraver affords super-fast engraving in an industrial-grade machine at an astounding value! The air-cooled RF tube allows a fantastic beam signature and you don’t have to worry about freezing. The gantry payload is minimal and is super smooth even with the amazing acceleration and deceleration. This machine is intended for very high-detail engraved and minimal cutting.
| Laser System | Odin 22 | Odin 32 | ||
|---|---|---|---|---|
| Laser Tube Wattage | 30 Watt | 55 Watt （Coherent） | ||
| Working Area | 559 x 381 mm (22″ x 15″) | 813 x 508 mm (32″ x 20″) | ||
| Table Size | 625 x 440 mm (24.6″ x 17.3″) | 899 x 567 mm (35.4″ x 22.3″) | ||
| Max Part Size(W x L x H) | 625 x 440 mm x 185mm(24.6″ x 17.3″ x 7.3″) | 899 x 567 mm x 185mm(35.4″ x 22.3″ x 7.3″) | ||
| Dimensions(W x D x H) | 1030x860x1090mm (40″ x 34″ x 43″) | 1284x987x1090mm (51″ x 39″ x 43″) | ||
| Laser Type | Radio Frequency Laser Tube | |||
| Cooling | Air Cooled | |||
| Maximum Speed | 2000MM/S | |||
| Maximum machining size at 1000 speed – lightweight laser head | 529 x 381 mm(20.8″ x 15″) | 783 x 508 mm(30.8″ x 20″) | ||
| Maximum machining size at 2000 speed – lightweight laser head | 461 x 381 mm(18″ x 15″) | 715 x 508 mm(28″ x 20″) | ||
| Speed and Power Control | Computer or manually controlled speed and power from 0-100%.Vector color mapping sets speed and power settings using RGB color mapping. | |||
| Operating Modes | Optimized raster,vector,and combined mode | |||
| Resolution(DPI) | User controlled from 100 to 1000DPI(standard laser head) | |||
| Computer Interface | Ethernet and USB Connection | |||
| Compatible Operating Systems | Windows, Mac, and Linux (Mac and Linux with LightBurn Software) | |||
| Buffer Memory | 128MB Standard | |||
| Display Panel | 3.5″ LCD panel showing current file, total working time, laser power, speed, etc… | |||
| Electrical Requirements | Requirements110 to 240 volts,50 or 60 Hz,single phase | |||
| Z-Axis Height | 185mm (7.3″) | 185mm (7.3″) | ||
| Net Weight | 125kgs (275lbs) | 300kgs (661lbs) | ||
| Motion Control System | High-Speed Stepper Motors | |||
| Speed and Power Control(engraving depth) |
Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping. |
|||
| Operating Modes | Optimized raster, vector, and combined mode | |||

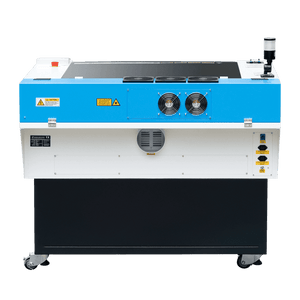

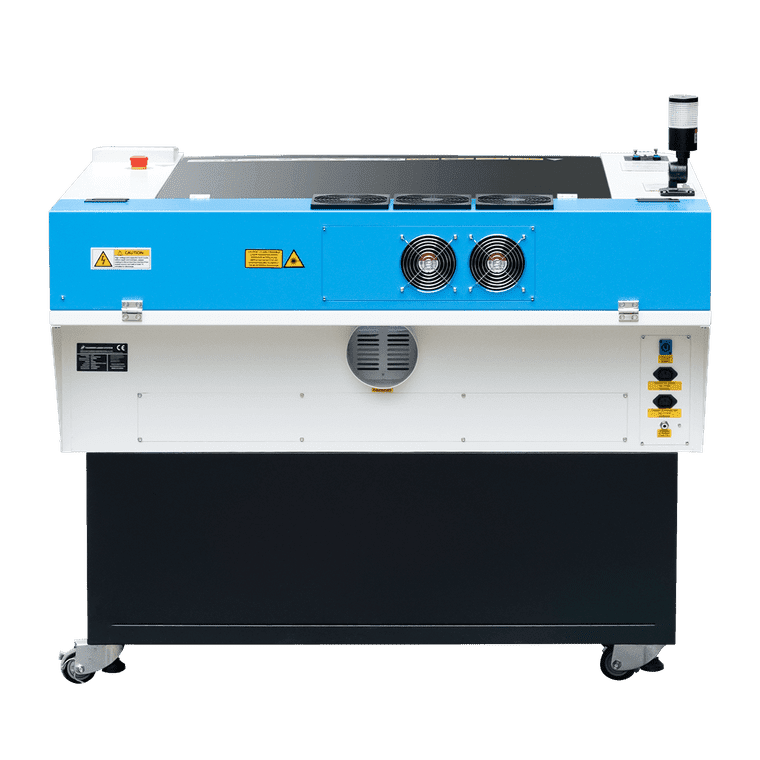

| Ventilation System | Integral exhaust fan. There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case. | |||
| Max. Speed | 2000mm/s | |||

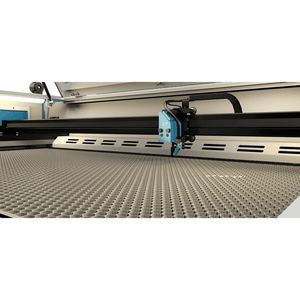

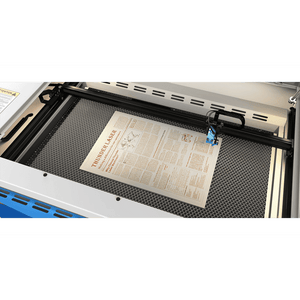

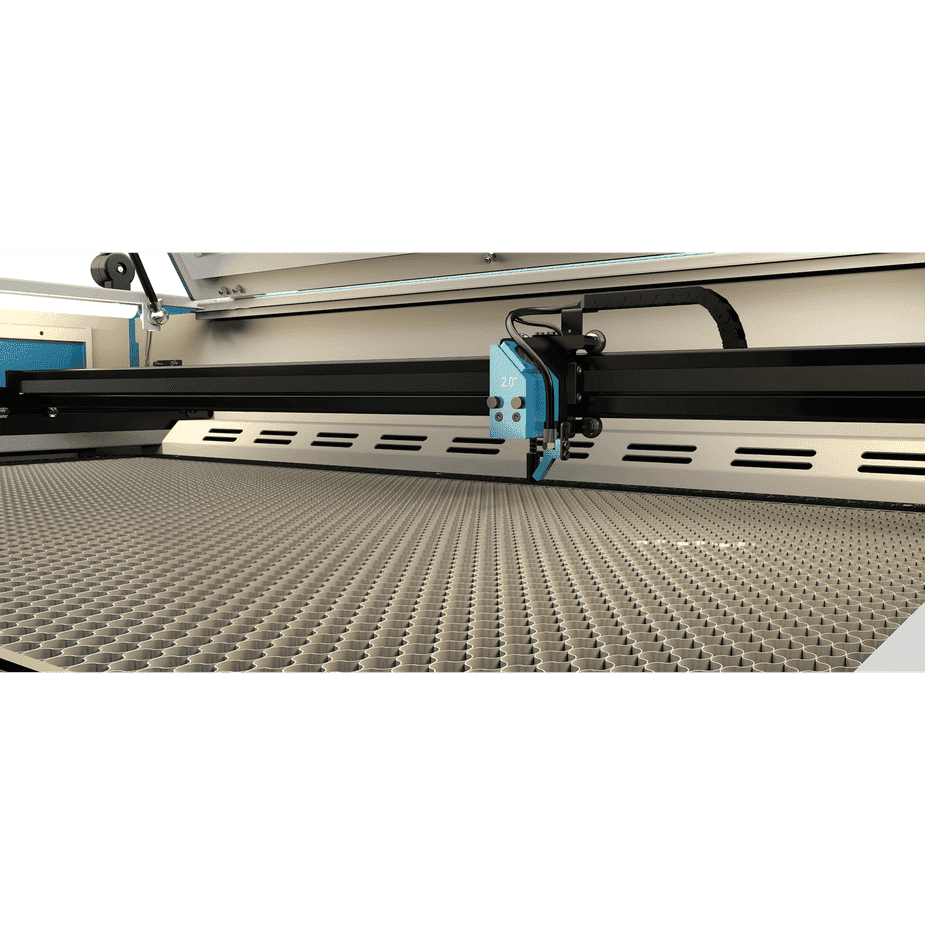

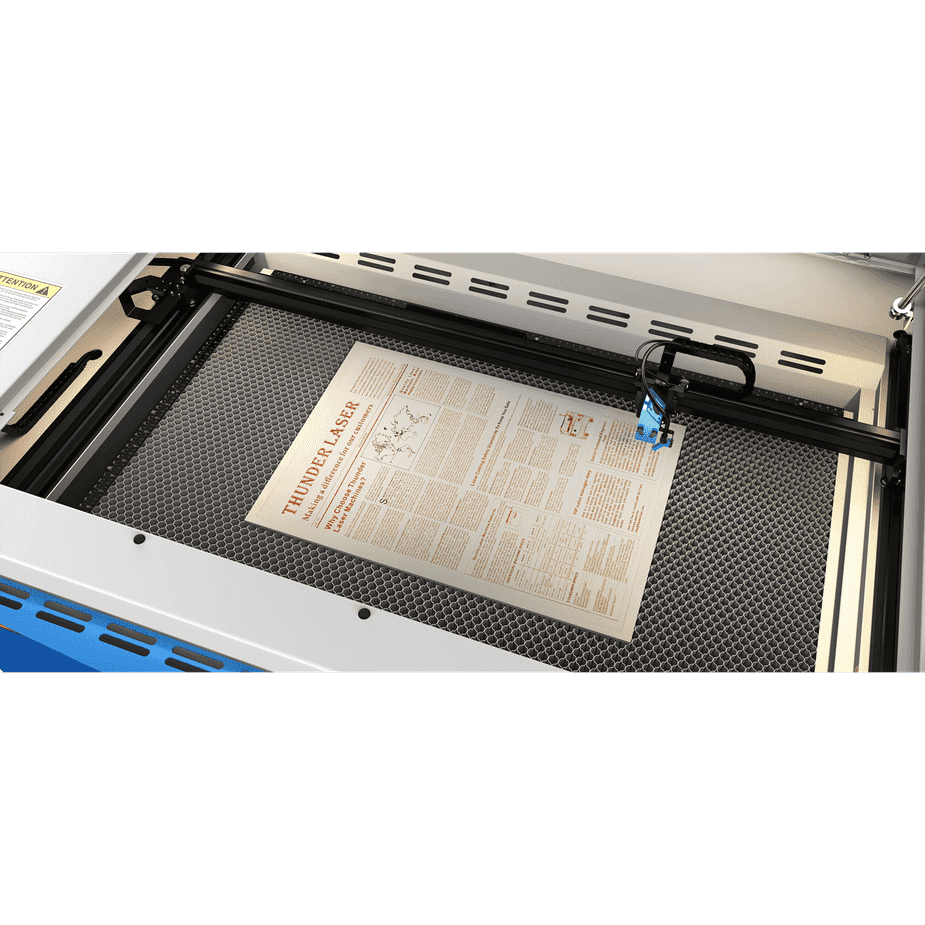

| Workpiece table | Solid metal blades & Honeycomb table | |||
| Max. table load | 20kg / 44lbs | |||
